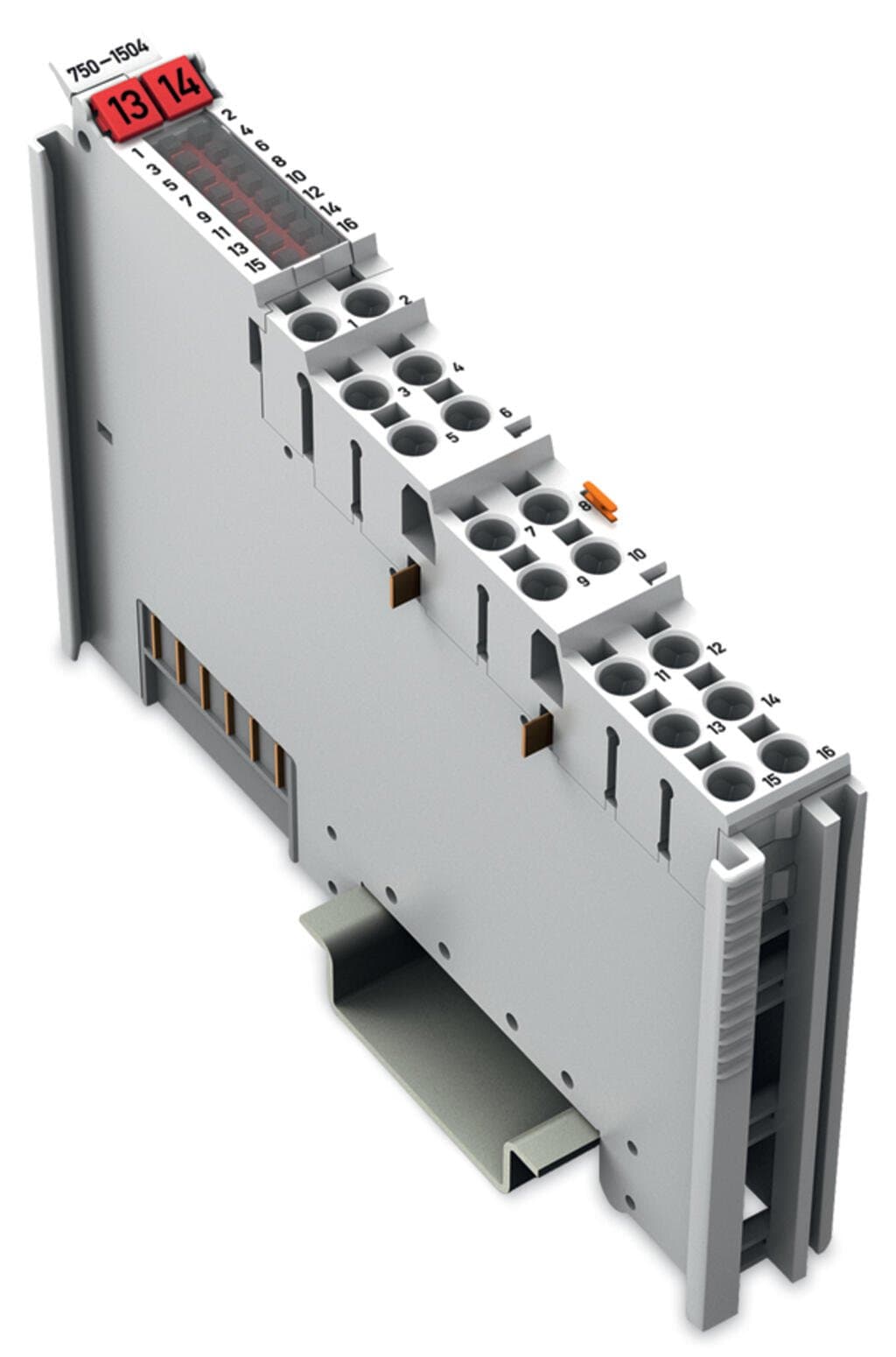

Product Model
750-1504
Selling Points
- 116 Channels in Compact Design: The module features 16 digital outputs in a width of just 12 mm, making it ideal for space-constrained applications.
- 2High-Side Switching: Ensures reliable operation with high-side switching technology, suitable for various load types including resistive, inductive, and lamp loads.
- 3Short-Circuit Protection: Each channel is short-circuit protected, ensuring safe operation and preventing damage to the module.
- 4Push-In Cage Clamp Connections: Simplifies wiring with direct insertion of solid conductors using Push-in cage clamp connections.
- 5IP20 Protection: Meets IP20 protection standards, providing a safe and reliable solution for industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of digital outputs | 16 | Number of Channels | 16 |
Signal type | Digital | Signal type (voltage) | 24 VDC |
Actuator connection | 16 x (1-wire) | Output characteristic | high-side switching |
Output current per channel | 0.5A | Output current | short-circuit-protected |
Load type | Resistive, inductive, lamp load | Switching frequency (max.) | 1 kHz |
Output data width (internal) max. | 16bits | Supply voltage (system) | 5 VDC; via data contacts |
Current consumption (5 V system supply) | 40mA | Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
Current consumption, field supply (module with no external load) | 29mA | Isolation | 500 V system/field |
Indicators | LED (1-16) green: Status DO 1 … DO 16 | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Current carrying capacity (power jumper contacts) | 10A |
Connection technology: inputs / outputs | 16 x Push-in CAGE CLAMP?(outputs) | Connection type 1 | Output |
Solid conductor | 0.08 … 1.5 mm2 / 28 … 16 AWG | Fine-stranded conductor | 0.25 … 1.5 mm2 / 22 … 16 AWG |
Strip length | 8 … 9 mm / 0.31 … 0.35 inches | Width | 12 mm / 0.472 inches |
Height | 100 mm / 3.937 inches | Depth | 69 mm / 2.717 inches |
Depth from upper-edge of DIN-rail | 61.8 mm / 2.433 inches | Mounting type | DIN-35 rail |
Pluggable connector | fixed | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 1.058MJ |
Weight | 49.9g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000 m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-3, marine applications | Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-04 |
eCl@ss 9.0 | 27-24-26-04 | ETIM 9.0 | EC001599 |
ETIM 8.0 | EC001599 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1 pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 8537109170 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | b0f045e7-d178-4dff-b357-d4b87e122ddc | SCIP notification number (Belgium) | 8fdf9103-120e-41da-962e-8a4778a35cb8 |
SCIP notification number (Bulgaria) | ccf699ac-4477-4350-b857-2039b462633f | SCIP notification number (Czech Republic) | 4bff8e53-ecae-4fd6-b3a4-cdc43fd20f6c |
SCIP notification number (Denmark) | 3c965ddd-cfc2-420e-a09f-5a4d8781b588 | SCIP notification number (Finland) | a21bd430-05dc-4484-9a0f-df5b014b19c7 |
SCIP notification number (France) | 2cb79c20-e6f8-4390-bfa3-116908b95fbd | SCIP notification number (Germany) | 4aa764fe-e251-4558-a80d-978e6aab38f6 |
SCIP notification number (Hungary) | 3f3aaf6d-4879-494c-a3d5-dcc0fceeed75 | SCIP notification number (Italy) | acf1ab18-af25-4b22-8f12-099a85a225ed |
SCIP notification number (Netherlands) | d5ef9f95-5357-4bda-9d79-c6f6f8a5b219 | SCIP notification number (Poland) | 0a5ecd33-c7b9-47f4-b94d-70c567167514 |
SCIP notification number (Romania) | 1cba2f0c-edbb-4944-b423-d60e0bc174c7 | SCIP notification number (Sweden) | c0209038-643d-44c6-8b33-8c198fb02536 |
Specifications may be subject to change without notice
