Product Model

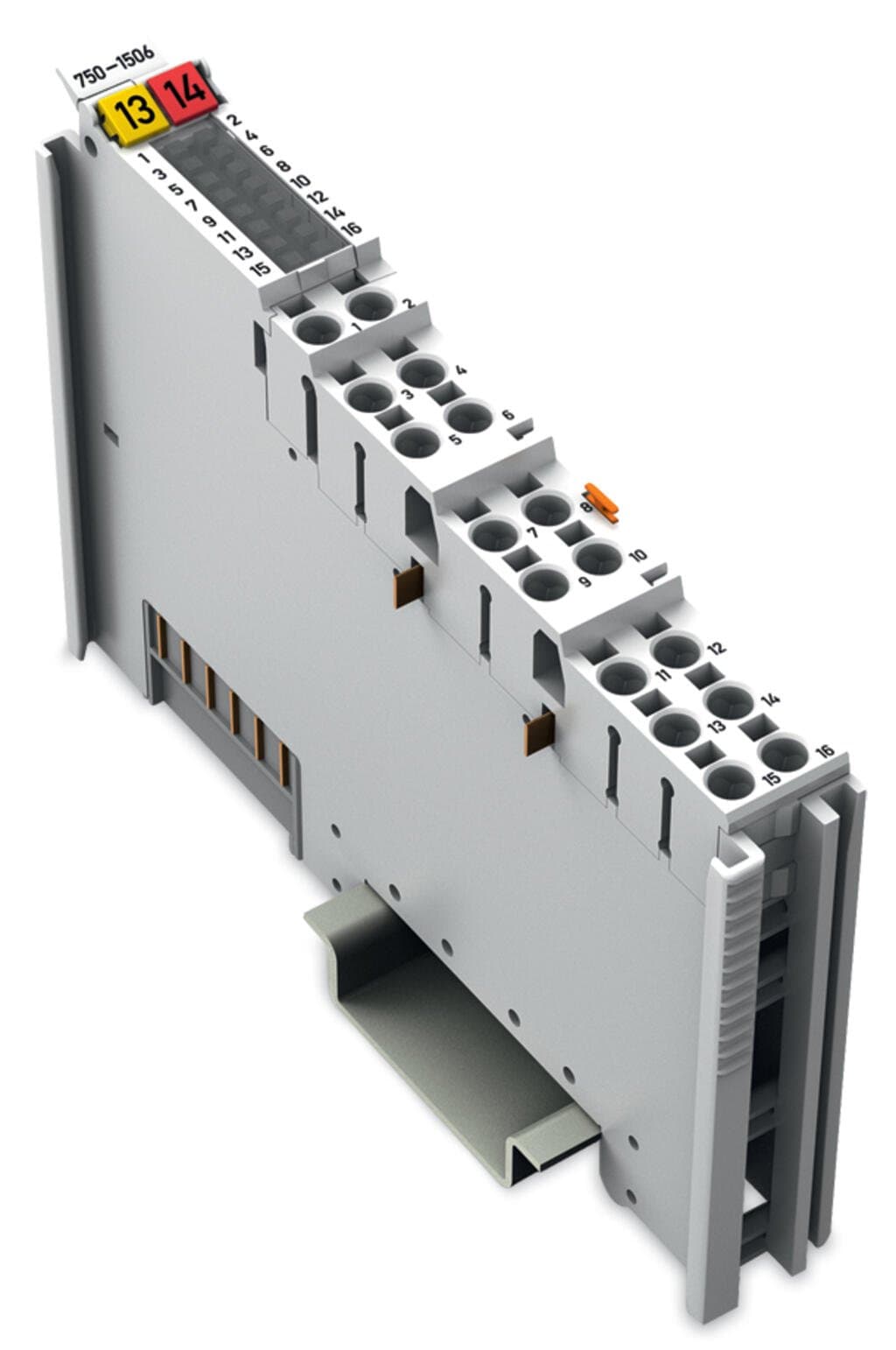

750-1506
Selling Points
- 1The module operates with high-side switching, ensuring reliable output control.
- 2Designed for easy installation on DIN rail, perfect for industrial automation.
- 3Features 8 digital inputs and 8 digital outputs for comprehensive control.
- 4Powered by 24VDC, suitable for various industrial loads.
- 5Offers IP20 protection, ensuring safe operation in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of digital inputs | 8 | Number of digital outputs | 8 |
Number of Channels | 16 | Signal type | Digital |
Signal type (voltage) | 24 VDC | Sensor connection | 8 x (1-wire) |
Input characteristic | High-side switching | Input filter (digital) | 3ms |
Input current per channel for signal (0) typ. | 0.6mA | Input current per channel for signal (1) typ. | 2.4mA |
Input current per channel for signal (1) min. | 2.2mA | Input current per channel for signal (1) max. | 2.5mA |
Voltage range for signal (0) | ?3 … +5 VDC | Voltage range for signal (1) | 15 … 30 VDC |
Actuator connection | 8 x (1-wire) | Output characteristic | high-side switching |
Output current per channel | 0.5A | Output current | short-circuit-protected |
Load type | Resistive, inductive, lamp load | Switching frequency (max.) | 1 kHz |
Input data width (internal) max. | 8bits | Output data width (internal) max. | 8bits |
Supply voltage (system) | 5 VDC; via data contacts | Current consumption (5 V system supply) | 30mA |
Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Current consumption, field supply (module with no external load) | 16mA |
Isolation | 500 V system/field | Indicators | LED (1-8) green: Status DI 1 … DI 8; LED (9-16) green: Status DO 1 … DO 8 |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 10A | Connection technology: inputs / outputs | 16 x Push-in CAGE CLAMP?(inputs/outputs) |
Connection type 1 | Inputs/outputs | Solid conductor | 0.08 … 1.5 mm2 / 28 … 16 AWG |
Fine-stranded conductor | 0.25 … 1.5 mm2 / 22 … 16 AWG | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Width | 12 mm / 0.472 inches | Height | 100 mm / 3.937 inches |
Depth | 69 mm / 2.717 inches | Depth from upper-edge of DIN-rail | 61.8 mm / 2.433 inches |
Mounting type | DIN-35 rail | Pluggable connector | fixed |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 1.036MJ | Weight | 47.4g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000 m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-3, marine applications |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-04 | eCl@ss 9.0 | 27-24-26-04 |
ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | Box | Country of origin | DE |
Customs tariff number | 8537109170 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | 8e6c41df-7baf-4178-a64d-6cc37daff9e3 |
SCIP notification number (Belgium) | 7159b8fa-307a-4ef3-8fcf-70f78f33bb3c | SCIP notification number (Bulgaria) | a1662001-d4c3-4fea-ab05-4daf020c4e7c |
SCIP notification number (Czech Republic) | e2396461-e1ec-4c83-9fcc-4c88519d7822 | SCIP notification number (Denmark) | b0edbb1d-c5d4-4992-be7c-952a95060ea1 |
SCIP notification number (Finland) | 2872cf87-0b87-4286-a19c-d55aee25afaf | SCIP notification number (France) | c32073f6-8d5b-414f-a139-3426c99ff601 |
SCIP notification number (Germany) | a1116843-c5a9-4f67-b534-b23555a5b061 | SCIP notification number (Hungary) | dab1854e-9cab-45ba-a486-c056fa37becf |
SCIP notification number (Italy) | ad32464f-859e-4c30-b232-d24b0d58aa2b | SCIP notification number (Netherlands) | e6c3bcb7-e16f-4f26-9462-9d4ceeadb2a7 |
SCIP notification number (Poland) | 7ca883e9-f8ea-45a0-a4ba-a74ef7c632a3 | SCIP notification number (Romania) | df5fbc93-4572-4a46-b387-e4cf36268b75 |
SCIP notification number (Sweden) | cc79a74b-9dec-499f-8dc7-5f29fadb4912 |
Specifications may be subject to change without notice
