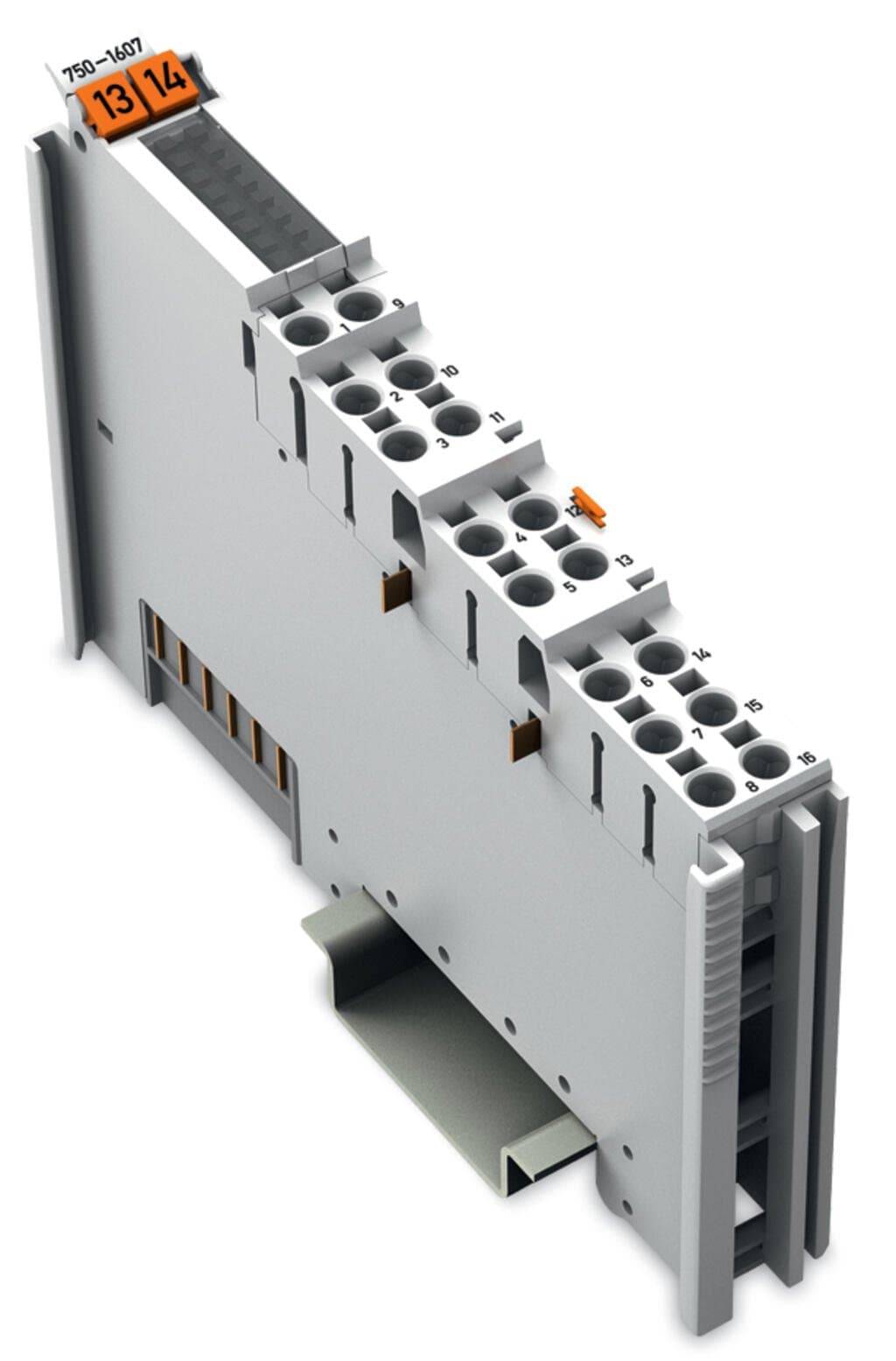

Product Model
750-1607
Selling Points
- 1Robust Design: Constructed with polycarbonate and polyamide 6.6 for durability.
- 2Versatile Connections: 8-way 24V and 8-way 0V connections for flexible field sensing.
- 3Adjustable Voltage: Supply voltage range of 18-32.5Vdc for adaptable applications.
- 4DIN-35 Rail Mounting: Easy installation on DIN-35 rail for compact integration.
- 5IP20 Protection: High protection rating against dust and water, ensuring reliable operation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Signal type | Voltage | Signal type (voltage) | 24?VDC |
Supply voltage (system) | 5?VDC;?via data contacts | Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 10A | Connection technology: field supply | 16 x CAGE CLAMP? |
Connection type 1 | Field supply | Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Fine-stranded conductor | 0.25 … 1.5?mm2?/ 22 … 16?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 69?mm?/ 2.717?inches | Depth from upper-edge of DIN-rail | 61.8?mm?/ 2.433?inches |
Mounting type | DIN-35 rail | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 0.932MJ | Weight | 42.5g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-3, marine applications |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-10 | eCl@ss 9.0 | 27-24-26-10 |
ETIM 9.0 | EC001600 | ETIM 8.0 | EC001600 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821085683 | Customs tariff number | 8538901000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
