Product Model

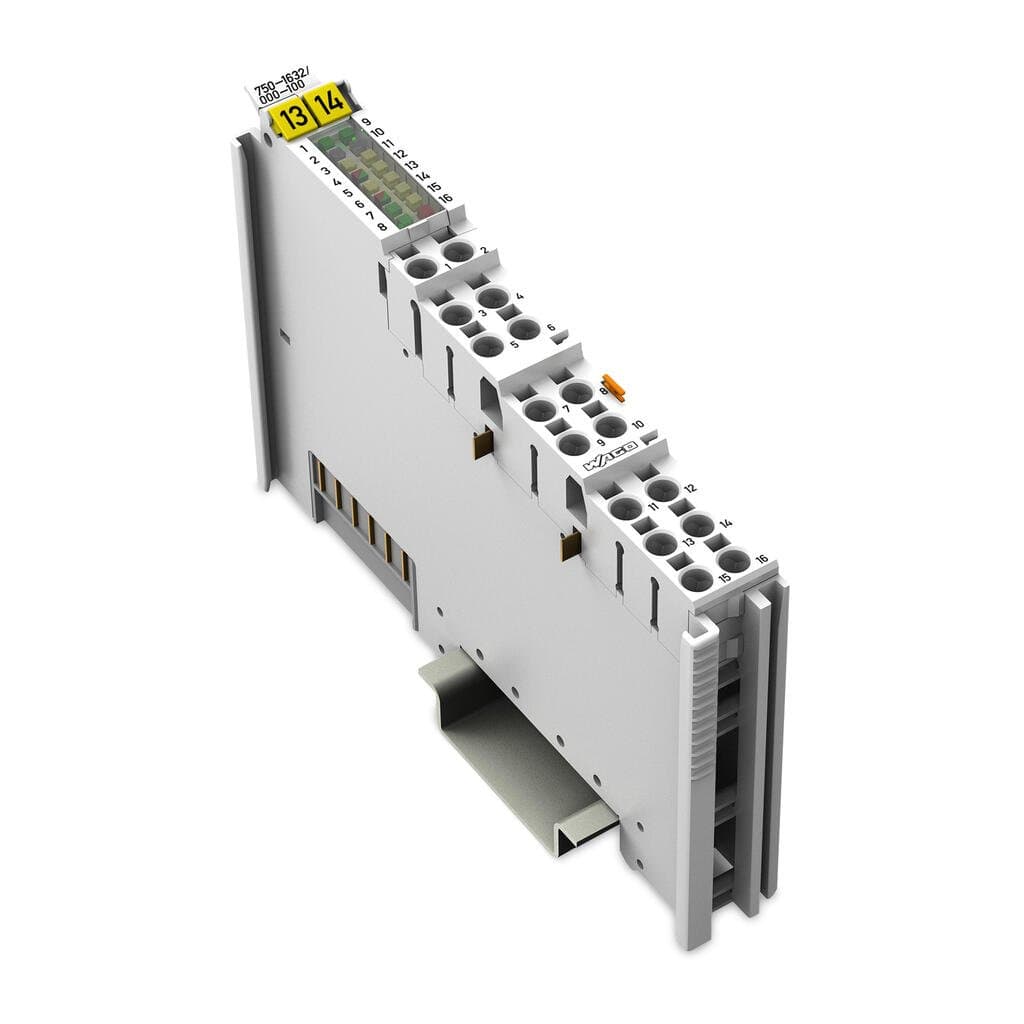

750-1632/000-100
Selling Points
- 1Fieldbus-Independent Compatibility: Works seamlessly with all standard fieldbus protocols and ETHERNET standards.
- 2Compact Design: Suitable for use in limited spaces due to its compact dimensions.
- 3High-Performance Outputs: Features two current-controlled PWM outputs with adjustable dithering for precise control.
- 4Versatile Applications: Controls two single-coil valves or one valve with up to 24 V/2 A, suitable for various industrial applications.
- 5Reliable Operation: Operates within a wide temperature range (0°C to 55°C) and is resistant to vibrations and shocks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note (availability) | Available March 2024 | Number of digital inputs | 2 |
Number of outputs | 2 bipolar outputs (A+, A- and B+, B-) | Type of output | H-bridge output with current-regulated PWM output (short-circuit-proof and thermal overload-proof for each channel) |
Input characteristic | Type 1 | Input current (typ.) | 2.7 mA at 24 V |
Output current | 1-channel operation: 2 A; 2-channel operation: 1.6 A per channel | Load type | Operating range: inductive (1 mH … 600 mH); Internal load resistance (> 8 Ohm) |
PWM frequency (typ.) | 25kHz | Data width | 6 bytes: single-channel operating mode; 12 bytes: dual-channel operating mode |
Supply voltage (system) | 5 VDC; via data contacts | Current consumption (5 V system supply) | 125mA |
Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Current consumption, field supply (module with no external load) | 20mA |
Isolation | 500 V system/field | Indicators | LED (1, 8, 9, 15) green: Signal Status DI 1, Undervoltage, Signal Status DI 2, Parameterization Status; LED (3, 5, 11, 13) yellow: Setpoint, Dithering Channel A, B; LED (4, 6) red/green: Status Channel A, B; LED (7, 16) red: Initialization, Error |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Connection technology: inputs / outputs | 16 x Push-in CAGE CLAMP? | Connection type 1 | Input/output |
Connectable conductor materials | Copper | Solid conductor | 0.08 … 1.5 mm2 / 28 … 16 AWG |
Fine-stranded conductor | 0.25 … 1.5 mm2 / 22 … 16 AWG | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Connection requirement (permissible cable length) | 30m | Connection requirement (permissible cable type) | Outputs |
Note (conductor cross-section) | Coil connections A+/A-/B+/B-: 1.5 mm2/16 AWG; For use according to UL 508: 16 AWG for all connections | Temperature range of connection cable | The permissible temperature range of the connecting cable must be dimensioned depending on the mounting position and current intensity because the temperature of the terminal connection can be up to 25°C (at 10°A) above the maximum expected ambient temperature. |
Width | 12 mm / 0.472 inches | Height | 100 mm / 3.937 inches |
Depth | 69 mm / 2.717 inches | Depth from upper-edge of DIN-rail | 61.8 mm / 2.433 inches |
Mounting type | DIN-35 rail | Pluggable connector | fixed |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 0.848MJ |
Weight | 53.6g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -25 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000 m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-4, marine applications | Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
ETIM 9.0 | EC001601 | ETIM 8.0 | EC001601 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4066966488470 | Customs tariff number | 85389099990 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | d171175d-f296-4ae6-be36-ca18821f823e | SCIP notification number (Belgium) | 69db035d-7638-4843-9233-43fc6bb98bfe |
SCIP notification number (Bulgaria) | ea63a238-56e6-4a48-a548-f58c2a1d8efd | SCIP notification number (Czech Republic) | 5f0dc191-42f7-41b5-a3b7-68ba39a50dbc |
SCIP notification number (Denmark) | 084b5363-1ffe-4d13-94da-19dae4849145 | SCIP notification number (Finland) | d6bc3a9a-0f51-43b9-b8e1-e8bbcca18f8d |
SCIP notification number (France) | 5eabcb6d-80f2-4d65-974b-3316d77bd4a1 | SCIP notification number (Germany) | f884c2ea-8144-4b0a-8b99-d62e88f6a876 |
SCIP notification number (Hungary) | 0dbe2867-2609-4cb8-b426-24a2a2f3bd7b | SCIP notification number (Italy) | decf1903-f05b-4ce1-93e7-5e3a80e2fca3 |
SCIP notification number (Netherlands) | 0d264bda-4bb9-404d-8401-6430af29b376 | SCIP notification number (Poland) | f552f9e5-faf2-4be2-bd54-530b53f99f45 |
SCIP notification number (Romania) | 542e4892-ebb0-44aa-a005-ee188a7fa04d | SCIP notification number (Sweden) | dd57e474-579b-4e1b-9a11-1ec27e108240 |
Specifications may be subject to change without notice
