Product Model

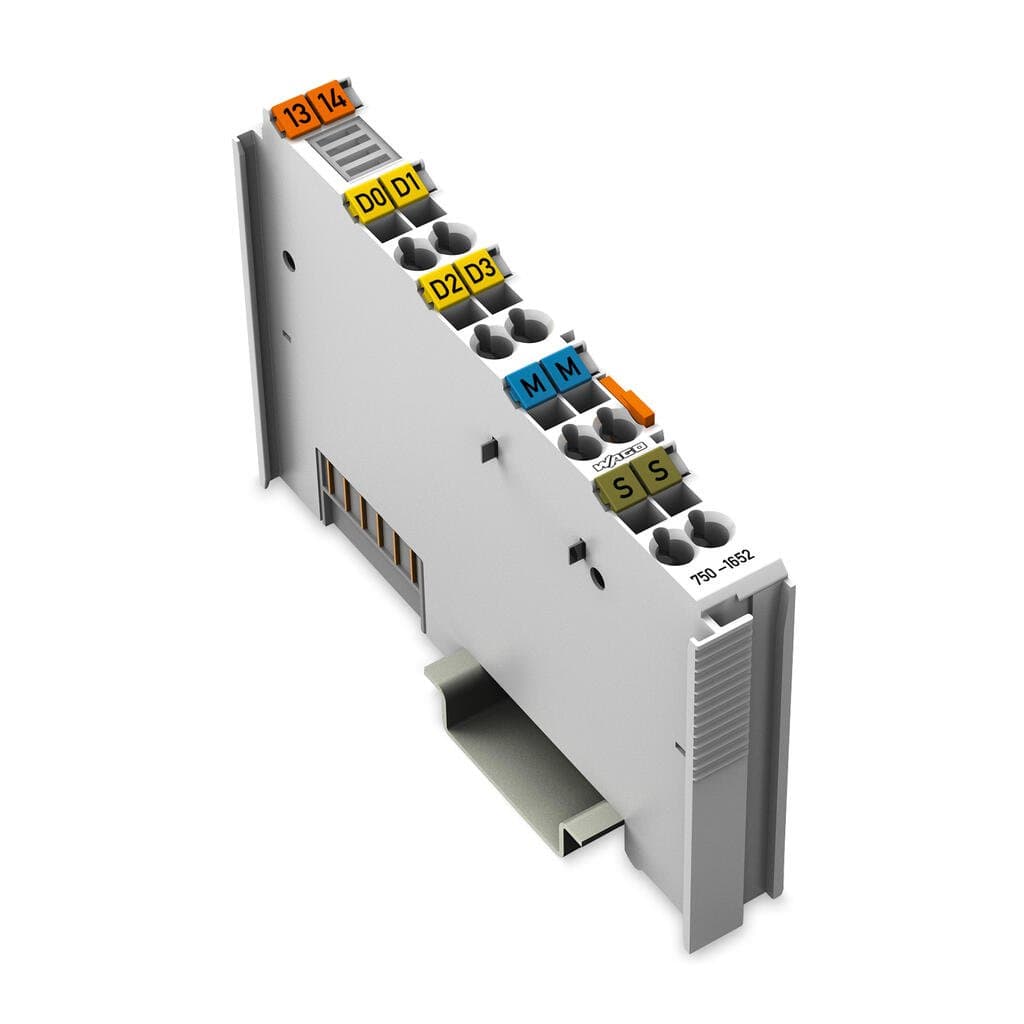

750-1652
Selling Points
- 1Connects RS-232, RS-485, and RS-422 devices to I/O systems.
- 2Supports fieldbus communication for seamless data transfer.
- 3Compact design for easy integration into various applications.
- 4Ensures reliable communication with a robust interface module.
- 5Compatible with WAGO I/O Systems 750/753 for enhanced functionality.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Signal type | RS-232 | Transmission rate | 150/250 kBd |
Bit transfer | RS-485/-422: ISO 8482 / DIN 66259 - 4; RS-232: EIA/TIA-232-F | Transmission channels | 1 TxD / 1 RxD, full-duplex, half-duplex |
Line length | RS-485/-422: approx. 1000 m (max.) twisted pair, RS-232: 40 m (max.) | Level adjustment | Bias network 1 approx. 620°Ohm (connectable); Bias network 2 approx. 1210°Ohm (connectable) |
Data width | Serial operating modes: 1 x 46/1 x 22/1 x 6-byte input/output (parameterizable), 2-byte control/status | Terminating resistor | Approx. 120 Ohm (switchable) |
Parity | None/Odd/Even/Mark/Space | Number of data bits | 7 … 8, adjustable |
Number of stop bits | 1/2, adjustable | Buffer | 8192-byte input / 2048-byte output |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 120mA |
Current consumption (note) | 120 mA at RS-232, Xon/Xoff 115.2 kBaud; 90 mA at RS-485 full-duplex 115.2 kBaud | Supply voltage (field) | 24 VDC; via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
Isolation | 500?V system/field | Indicators | LED (A-H) green/yellow/red: function, TxD (send), RxD (receive), buffer status, 3 x operating mode, data flow control |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 10A | Connection technology: inputs / outputs | 8 x CAGE CLAMP? |
Connection type 1 | Inputs/outputs | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 67.8?mm?/ 2.669?inches | Depth from upper-edge of DIN-rail | 60.6?mm?/ 2.386?inches |
Mounting type | DIN-35 rail | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 0.967MJ | Weight | 53.3g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-3, marine applications |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | ETIM 9.0 | EC001604 |
ETIM 8.0 | EC001604 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | Box |
Country of origin | DE | GTIN | 4066966371253 |
Customs tariff number | 85389099990 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 2-methylimidazole | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | a78b29be-4883-45a2-a1de-fa0d374dfa62 |
SCIP notification number (Belgium) | ac2eb67e-85bb-41e4-ae51-164544d79105 | SCIP notification number (Bulgaria) | 0d81b52f-b65b-4b44-9db5-deff700c1ca8 |
SCIP notification number (Czech Republic) | 4cc20f41-5e3a-4596-9503-896739d0e2b0 | SCIP notification number (Denmark) | bc98fe69-7024-4844-abf5-b282da07430a |
SCIP notification number (Finland) | 1832355f-9395-4004-b51b-90bb37a942ef | SCIP notification number (France) | eb9b2269-a5c0-4a6c-a33b-947a60a22d7d |
SCIP notification number (Germany) | dfd08081-39ba-4304-9102-8f82a16471e8 | SCIP notification number (Hungary) | 6efba538-bfa4-4df8-beca-09400b6a846c |
SCIP notification number (Italy) | 80140f7a-00bb-4b7a-a0a9-20ee8acb6788 | SCIP notification number (Netherlands) | 7706470d-a5d8-4842-af0c-a37372428f85 |
SCIP notification number (Poland) | 7f9b5780-290e-4213-8579-df22283270a7 | SCIP notification number (Romania) | 8a7d8abc-7b7b-4c10-b7fc-aeafb81c26af |
SCIP notification number (Sweden) | 4027092b-72dd-44a2-a6d3-bbc7d21ddaee |
Specifications may be subject to change without notice
