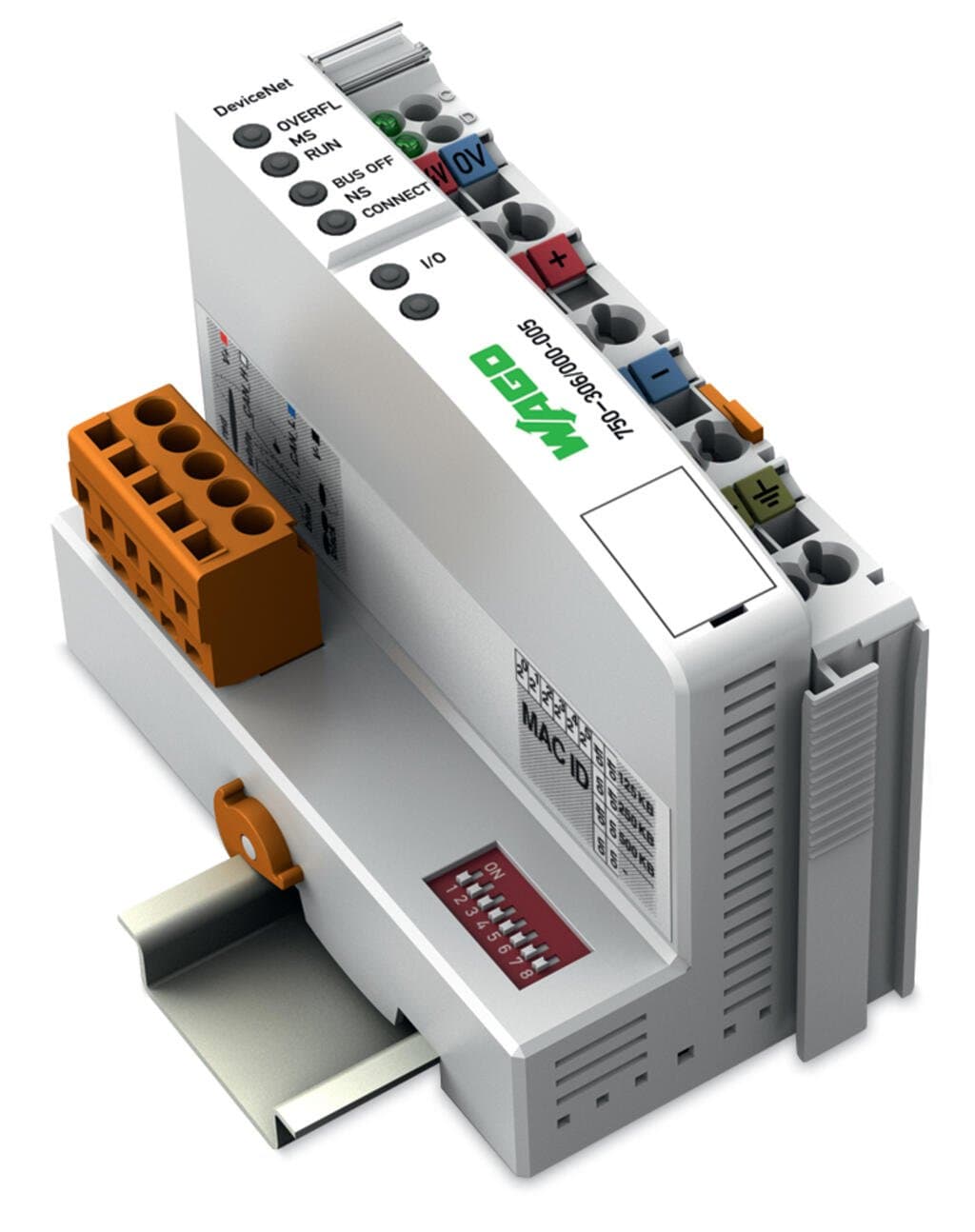

Product Model
750-306/000-005
Selling Points
- 1High Connectivity: Supports up to 64 fieldbus nodes and 64 modules per node.
- 2Robust Communication: Operates at 500 kbaud with DeviceNet communication capability.
- 3Durable Design: IP20 protection rating, suitable for ambient temperatures from 0°C to +55°C.
- 4Versatile Power Supply: 24VDC supply voltage via system wiring and power jumper contacts.
- 5Efficient Performance: 87% power supply efficiency at nominal load (24V).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Note: Configuration files required (EDS)! | Communications | DeviceNet |
Number of fieldbus nodes on master (max.) | 64 | Number of I/O points | 6,000 |
Transmission rate | 500 kBd ( (125 kbaud, 250 kbaud, 500 kbaud)) | Bus segment length (max.) | 500 m |
Transmission medium (communication/fieldbus) | Shielded Cu cable; Remote bus cable: 2 x 0.82 mm2 + 2 x 1.7 mm2; Drop cable: 2 x 0.2 mm2 + 2 x 0.32 mm2 | Number of modules per node (max.) | 64 |
Number of modules without a bus extension (max.) | 64 | DeviceNet features | Polled I/O Message Connection |
Input and output process image (fieldbus) max. | 512 bytes/512 bytes | Supply voltage (system) | 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP?connection) |
Current consumption (5 V system supply) | 350mA | Total current (system supply) | 1,650mA |
Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts | Input current via DeviceNet interface at 11 V | 120mA |
Input current (typ.) at nominal load (24?V) | 500mA | Power supply efficiency (typ.) at nominal load (24 V) | 87% |
Isolation | 500 V system/field | Number of outgoing power jumper contacts | 3 |
Current carrying capacity (power jumper contacts) | 10A | Connection technology: communication/fieldbus | DeviceNet: 1 x Male connector; 5-pole |
Connection technology: field supply | 6 x CAGE CLAMP? | Connection technology: system supply | 2 x CAGE CLAMP? |
Connection type 1 | System/field supply | Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Connection technology: device configuration | 1 x Male connector; 4-pole | Width | 50.5 mm / 1.988 inches |
Height | 100 mm / 3.937 inches | Depth | 71.1 mm / 2.799 inches |
Depth from upper-edge of DIN-rail | 63.9 mm / 2.516 inches | Mounting type | DIN-35 rail |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 3.476MJ | Weight | 202g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -25 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000 m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-4, marine applications |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-07 | eCl@ss 9.0 | 27-24-26-07 |
ETIM 9.0 | EC001603 | ETIM 8.0 | EC001603 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | Box | Country of origin | DE |
Customs tariff number | 8517620090 | CAS-No. | 12060-00-3 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Bulgaria) | d529c0fc-d0a4-4a32-a5c8-b0b54adf5f61 |
SCIP notification number (Czech Republic) | 6a155605-057b-45e5-aa6b-ed2767aa8382 |
Specifications may be subject to change without notice
