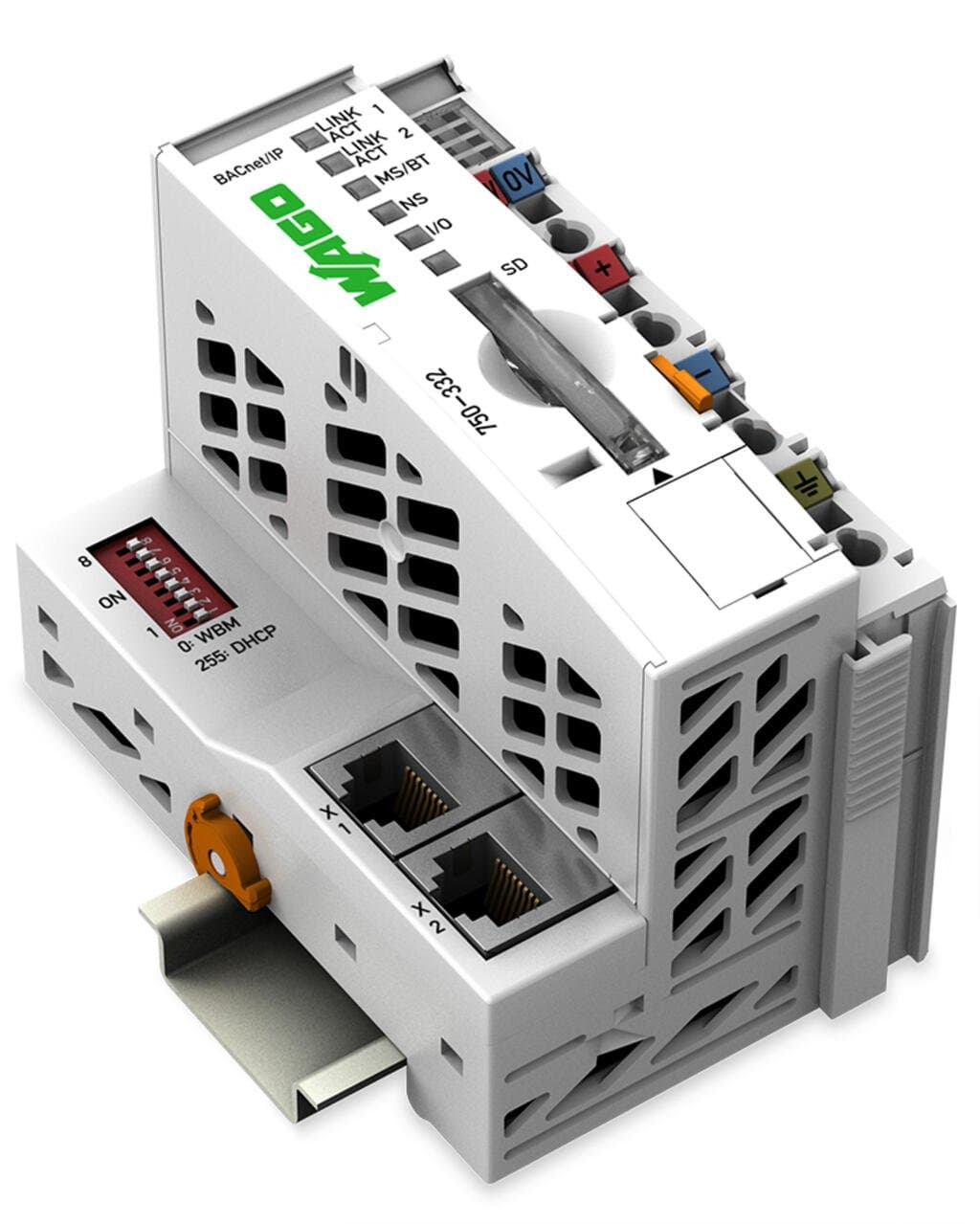

Product Model
750-332
Selling Points
- 1Connects the WAGO I/O System to BACnet protocol for efficient building automation.
- 2Supports B-BC BACnet device profile per DIN EN ISO 16484-5.
- 3Communicates with other BACnet devices via BACnet/IP and Modbus TCP/UDP.
- 4Equipped with two ETHERNET interfaces and an integrated switch for line topology.
- 5Features a removable memory card slot for easy parameter transfer and configuration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Communications | BACnet/IP | Device-specific | BACnet device profile: B-BC (BACnet building controller); BACnet revision: 12 |
Transmission rate | 10/100 Mbit/s | Transmission medium (communication/fieldbus) | Twisted pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length |
Transmission performance | Class D per EN 50173 | Type of memory card | SD card |
Memory card slot | Push-push mechanism; cover lid (sealable) | Number of modules per node (max.) | 250 |
Number of modules without a bus extension (max.) | 64 | Configuration options | WAGO-I/O-CHECK |
Input and output process image (fieldbus) max. | 1020 words/1020 words | Supply voltage (system) | 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP?connection) |
Current consumption (5 V system supply) | 440mA | Total current (system supply) | 1,700mA |
Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts | Input current (typ.) at nominal load (24?V) | 500mA |
Power supply efficiency (typ.) at nominal load (24 V) | 90% | Isolation | 500 V system/field |
Number of outgoing power jumper contacts | 3 | Current carrying capacity (power jumper contacts) | 10A |
Connection technology: communication/fieldbus | BACnet/IP: 2 x RJ-45; Modbus (TCP, UDP): 2 x RJ-45 | Connection technology: field supply | 6 x CAGE CLAMP? |
Connection technology: system supply | 2 x CAGE CLAMP? | Connection type 1 | System/field supply |
Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Strip length | 8 … 9 mm / 0.31 … 0.35 inches | Connection technology: device configuration | 1 x Male connector; 4-pole |
Width | 61.5 mm / 2.421 inches | Height | 100 mm / 3.937 inches |
Depth | 71.9 mm / 2.831 inches | Depth from upper-edge of DIN-rail | 64.7 mm / 2.547 inches |
Mounting type | DIN-35 rail | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 2.47MJ | Weight | 152.6g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -25 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000 m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2 | EMC emission of interference | per EN 61000-6-3 |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | ETIM 9.0 | EC001603 |
ETIM 8.0 | EC001603 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1 pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 8517620090 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 8a007cbb-10ce-4ffa-9800-32d33c1efb20 | SCIP notification number (Belgium) | a0ea8133-6332-496d-95dc-830cd6aa5348 |
SCIP notification number (Bulgaria) | 6a3df25c-f1b1-408c-a8cf-22cbc0fce8e3 | SCIP notification number (Czech Republic) | 405e39e8-6aa8-4037-ad62-90642c1789da |
SCIP notification number (Denmark) | 0e647a9e-16e7-4350-b215-d2c59ae8fe78 | SCIP notification number (Finland) | aaea2fb4-2810-4ff6-aa4e-3df7b89ceeba |
SCIP notification number (France) | f2456991-9f87-4254-9e9b-e8c735d68b0f | SCIP notification number (Germany) | 658c7eea-3351-4fd7-a392-17a67dc50317 |
SCIP notification number (Hungary) | cc297305-6f69-4107-b6a2-8cdd8fb3bc69 | SCIP notification number (Italy) | b8672709-e8cc-491f-a8a3-089db063d005 |
SCIP notification number (Netherlands) | f58113e1-1033-442a-96ac-dfae3c2c250e | SCIP notification number (Poland) | bd9ef1f5-1043-468a-a4ca-02d9e457cd65 |
SCIP notification number (Romania) | c760670c-1406-4398-aadd-c44ee54d939d | SCIP notification number (Sweden) | dec60955-3ee0-4f50-8e9f-307b3abd2258 |
Specifications may be subject to change without notice
