Product Model

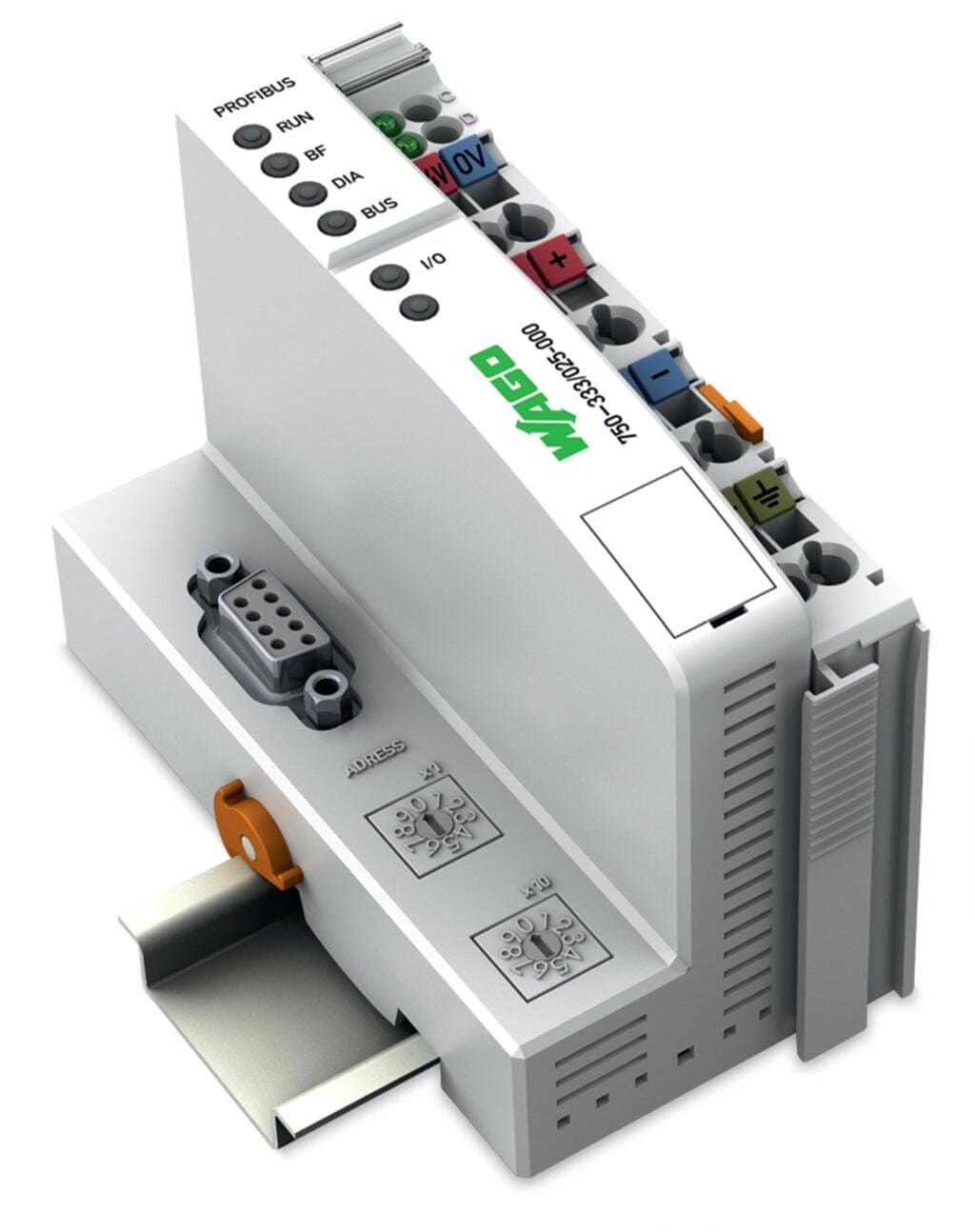

750-333/025-000
Selling Points
- 1Supports PROFIBUS DP with 2nd Generation Design
- 2Handles Up to 96 Fieldbus Nodes on Master Connection
- 3Operates at 24VDC Supply with Power Jumper for Field
- 4Features 9-Pin D-Sub Female Connector for Fieldbus
- 5Mounts on DIN-35 Rail with IP20 Protection Rating
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Note: Configuration files required (GSD)! | Communications | PROFIBUS |
Number of fieldbus nodes on master (max.) | 96 | Number of I/O points | 6,000 |
Transmission rate | 9.6/12 MBd | Bus segment length (max.) | 1200 m |
Transmission medium (communication/fieldbus) | Cu cable per EN 50170 | Transmission time | typ. 1 ms (10 couplers; each 32 digital I/O and 12 Mbaud) max. 3.3 ms |
Number of modules per node (max.) | 63 | Number of modules without a bus extension (max.) | 63 |
Input and output process image (fieldbus) max. | 244 bytes/244 bytes | Supply voltage (system) | 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP?connection) |
Current consumption (5 V system supply) | 200mA | Total current (system supply) | 1,800mA |
Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts | Input current (typ.) at nominal load (24?V) | 500mA |
Power supply efficiency (typ.) at nominal load (24 V) | 87% | Isolation | 500 VDC system/field |
Number of outgoing power jumper contacts | 3 | Current carrying capacity (power jumper contacts) | 10A |
Connection technology: communication/fieldbus | PROFIBUS: 1 x D-sub 9 socket | Connection technology: field supply | 6 x CAGE CLAMP? |
Connection technology: system supply | 2 x CAGE CLAMP? | Connection type 1 | System/field supply |
Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Strip length | 8 … 9 mm / 0.31 … 0.35 inches | Connection technology: device configuration | 1 x Male connector; 4-pole |
Width | 50.5 mm / 1.988 inches | Height | 100 mm / 3.937 inches |
Depth | 71.1 mm / 2.799 inches | Depth from upper-edge of DIN-rail | 63.9 mm / 2.516 inches |
Mounting type | DIN-35 rail | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 2.658MJ |
Weight | 183.8g | Conformity marking | CE |
Ambient temperature (operation) | -20 … +60 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000 m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Relative humidity (with condensation) | Short-term condensation per Class 3K6/IEC EN 60721-3-3 and E-DIN 40046-721-3, accounting for a temperature range of ?20 to +60 °C (except for wind-driven precipitation, water and ice formation) |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-4, marine applications |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-07 | eCl@ss 9.0 | 27-24-26-07 |
ETIM 9.0 | EC001603 | ETIM 8.0 | EC001603 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | Box | Country of origin | DE |
Customs tariff number | 8517620090 | CAS-No. | 12060-00-3 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Bulgaria) | 7141b4f4-957e-4315-b10f-7d5a96919a93 |
SCIP notification number (Czech Republic) | 3e128e36-6509-41bb-adac-a32cf2aaff97 |
Specifications may be subject to change without notice
