Product Model

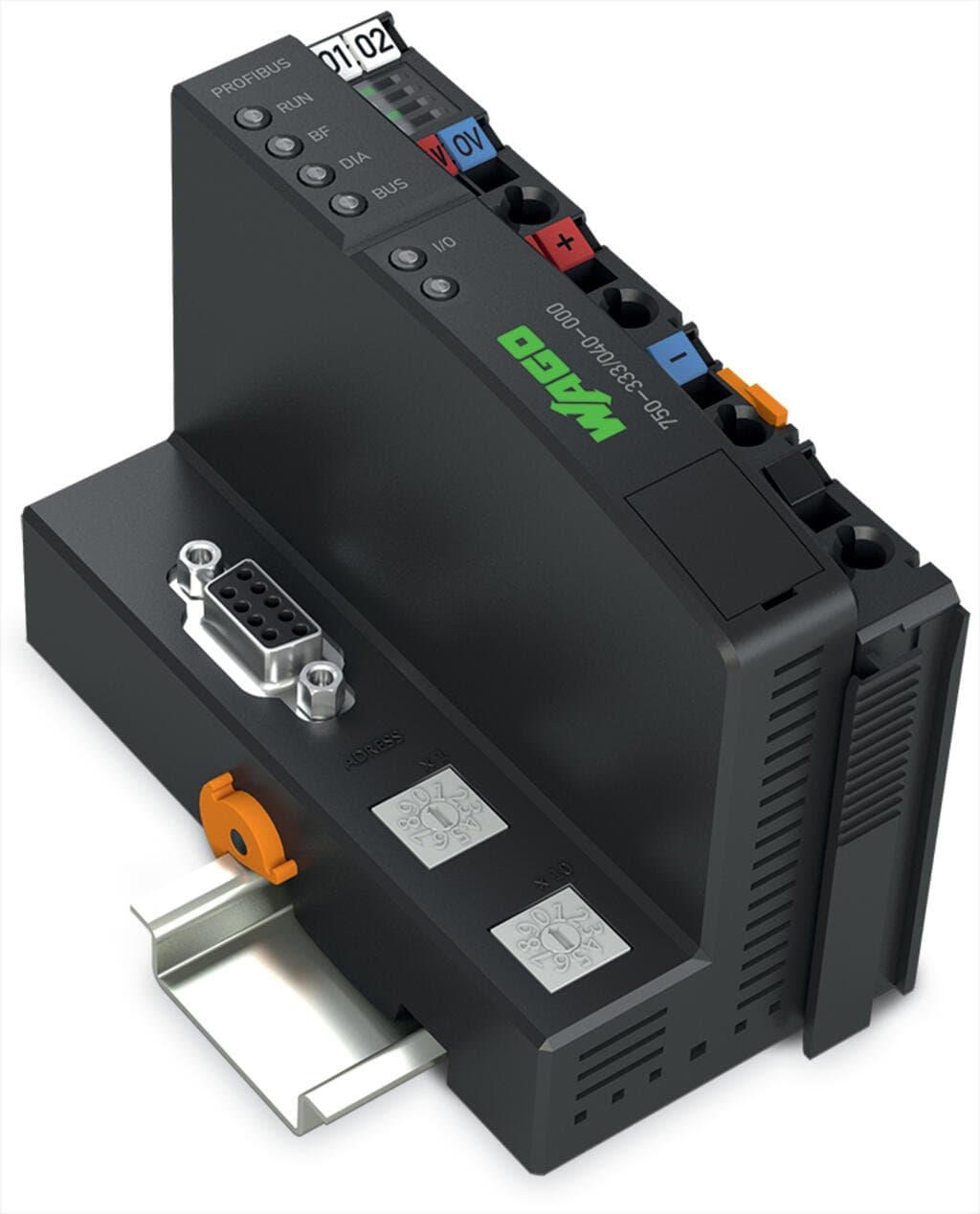

750-333/040-000
Selling Points
- 1Supports baud rates from 9.6 kBd to 12 MBd.
- 2Built with polycarbonate and polyamide 6.6 housing, ensuring durability.
- 3Operates from -40°C to +70°C, suitable for harsh environments.
- 4Easy installation on DIN-35 rail, enhancing flexibility.
- 5Provides reliable protection against dust and water, ensuring safe operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Note: Configuration files required (GSD)! | Communications | PROFIBUS |
Number of fieldbus nodes on master (max.) | 96 | Number of I/O points | 6,000 |
Transmission rate | 9.6/12 MBd | Bus segment length (max.) | 1200 m |
Transmission medium (communication/fieldbus) | Cu cable per EN 50170 | Transmission time | typ. 1 ms (10 couplers; each 32 digital I/O and 12 Mbaud) max. 3.3 ms |
Number of modules per node (max.) | 63 | Number of modules without a bus extension (max.) | 63 |
Input and output process image (fieldbus) max. | 244 bytes/244 bytes | Supply voltage (system) | 24 VDC; via pluggable connector (CAGE CLAMP? connection); Derating must be observed! |
Current consumption (5 V system supply) | 200mA | Total current (system supply) | 1,800mA |
Supply voltage (field) | 24 VDC; Power supply via pluggable connector (CAGE CLAMP? connection); Transmission via power jumper contacts; Derating must be observed! | Input current (typ.) at nominal load (24?V) | 500mA |
Power supply efficiency (typ.) at nominal load (24 V) | 90% | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 10A | Rated surge voltage | 1 kV |
Ratings per | IEC/EN 60664-1 | Derating | Derating (supply voltage):Ambient temperatures under laboratory conditions: (?25 … +30°%);for ?40 … +55°°C: 24°V (?25 … +20°%);for +55 … +70°°C: 24°V (?25 … +10°%);Lower limit in all temperature ranges: ?27.5°% (including 15°% residual ripple) |
Standard | EN 50170 | Connection technology: communication/fieldbus | PROFIBUS: 1 x D-sub 9 socket |
Connection technology: field supply | 4 x CAGE CLAMP? | Connection technology: system supply | 2 x CAGE CLAMP? |
Connection type 1 | System/field supply | Solid conductor | 0.25 … 2.5 mm2 / 24 … 14 AWG |
Fine-stranded conductor | 0.25 … 2.5 mm2 / 24 … 14 AWG | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Connection technology: device configuration | 1 x Male connector; 4-pole | Width | 50.5 mm / 1.988 inches |
Height | 100 mm / 3.937 inches | Depth | 71.1 mm / 2.799 inches |
Depth from upper-edge of DIN-rail | 63.9 mm / 2.516 inches | Mounting type | DIN-35 rail |
Color | dark gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 2.069MJ | Weight | 180g |
Conformity marking | CE | Ambient temperature (operation) | -40 … +70 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.) |
Mounting position | Horizontal left, horizontal up, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Relative humidity (with condensation) | Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation) | Vibration resistance | per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373 |
Shock resistance | per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 50155, EN 61373 | EMC immunity to interference | per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26;EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994 |
EMC emission of interference | per EN 61000-6-4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5 | Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-07 |
eCl@ss 9.0 | 27-24-26-07 | ETIM 9.0 | EC001603 |
ETIM 8.0 | EC001603 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1 pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 8517620090 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 38ba9a7f-6dac-4fbe-a206-23d517a32c4c | SCIP notification number (Belgium) | 0542618e-67b1-4043-972d-7d0a56de0719 |
SCIP notification number (Bulgaria) | 5e349747-8b3c-44ae-ab6e-6916c3715aaa | SCIP notification number (Czech Republic) | 01d77a49-cb80-49b5-8e08-7f5cc6648d21 |
SCIP notification number (Denmark) | a43b7ef1-086c-4ca1-a085-a7c5f810d980 | SCIP notification number (Finland) | b58385fb-1af9-427f-9a8d-5cb42604590e |
SCIP notification number (France) | c58162bd-84cf-4395-b4c9-af84ea67c2b3 | SCIP notification number (Germany) | cd055834-ab06-4bc7-99fa-63a7f74862d3 |
SCIP notification number (Hungary) | fcbdab62-e5eb-4f28-88fc-61f53b8a26f5 | SCIP notification number (Italy) | 29591d56-da84-4095-a182-5f831093528c |
SCIP notification number (Netherlands) | 8bdbf2e4-81b2-4919-80a3-d5c289fa026a | SCIP notification number (Poland) | 5bff45c2-9262-4a07-a732-b2278dba9664 |
SCIP notification number (Romania) | efc0e1b4-ec9a-452c-a2cd-4ab58e750ece | SCIP notification number (Sweden) | 08cd2470-cb0c-45cc-badc-9b3f6973b5bf |
Specifications may be subject to change without notice
