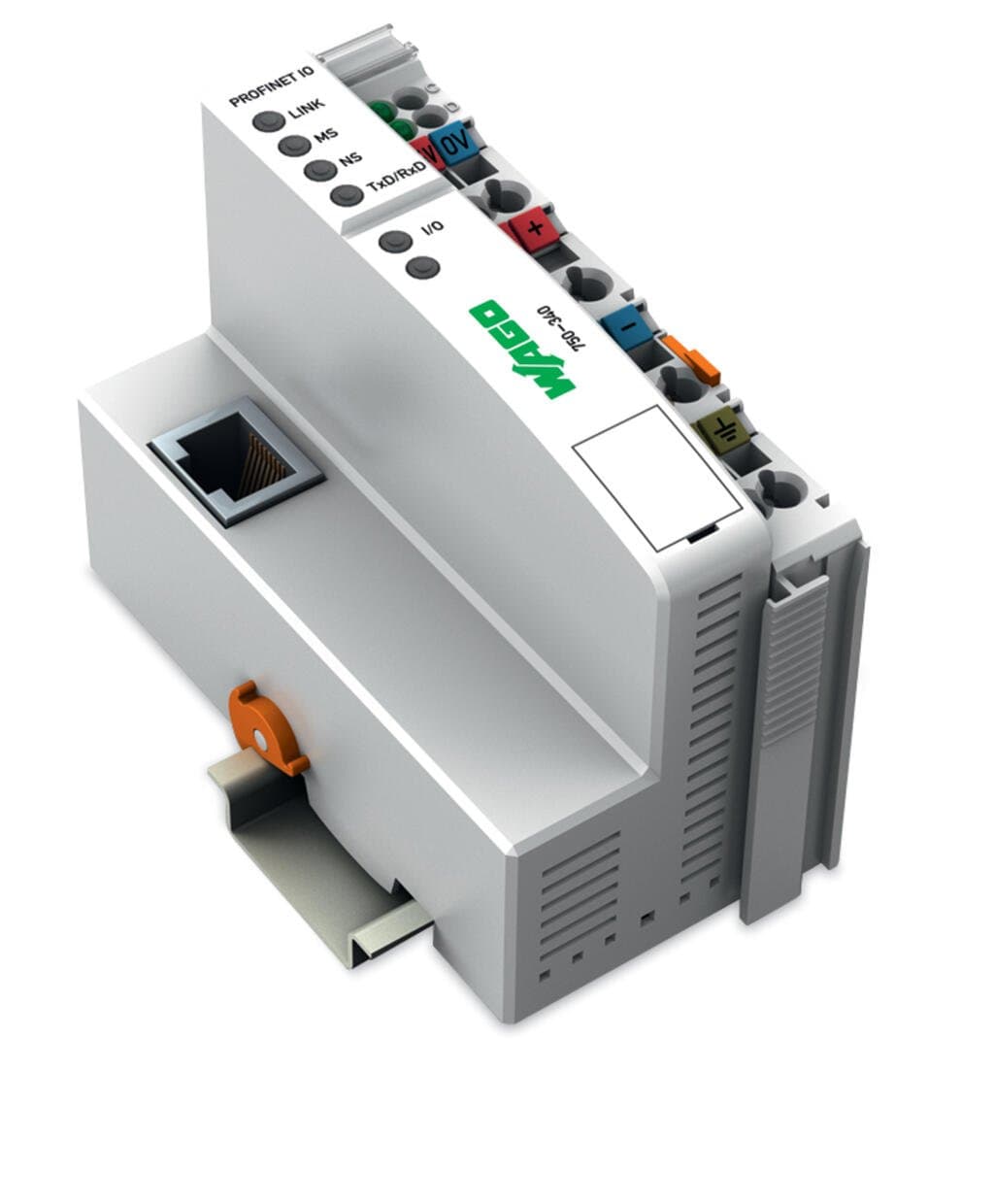

Product Model
750-340
Selling Points
- 1Supports 10/100 Mbps Ethernet and 100 Mbps PROFINET IO for fast data exchange.
- 2Compatible with various protocols including PROFIBUS, CANopen, Modbus, and Ethernet.
- 3Designed for simple integration with the WAGO-I/O-SYSTEM, ensuring seamless connectivity.
- 4Built with polycarbonate and polyamide 6.6 materials for durability and resistance to environmental conditions.
- 5Meets IEC 61131-3 for application programming and IEC 61508 for safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Communications | PROFINET IO | ETHERNET protocols | DCP |
Device-specific | PROFINET RT V2.0 (RT Class 1); Conformance Class A | Transmission rate | 100 Mbit/s |
Bus segment length (max.) | 100 m | Transmission medium (communication/fieldbus) | Twisted pair S-UTP; 100 Ω; Cat. 5 |
Number of modules per node (max.) | 128 | Number of modules without a bus extension (max.) | 64 |
Input and output process image (fieldbus) max. | 320 bytes/320 bytes | Supply voltage (system) | 24 VDC (-15 … +20 %); via pluggable connector (CAGE CLAMP?connection) |
Current consumption (5 V system supply) | 300mA | Total current (system supply) | 1,700mA |
Supply voltage (field) | 24 VDC (-15 … +20 %); via power jumper contacts | Input current (typ.) at nominal load (24?V) | 500mA |
Power supply efficiency (typ.) at nominal load (24 V) | 87% | Isolation | 500 V system/field |
Number of outgoing power jumper contacts | 3 | Current carrying capacity (power jumper contacts) | 10A |
Connection technology: communication/fieldbus | PROFINET IO: 1 x RJ-45 | Connection technology: field supply | 6 x CAGE CLAMP? |
Connection technology: system supply | 2 x CAGE CLAMP? | Connection type 1 | System/field supply |
Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Strip length | 8 … 9 mm / 0.31 … 0.35 inches | Connection technology: device configuration | 1 x Male connector; 4-pole |
Width | 50.5 mm / 1.988 inches | Height | 100 mm / 3.937 inches |
Depth | 71.1 mm / 2.799 inches | Depth from upper-edge of DIN-rail | 63.9 mm / 2.516 inches |
Mounting type | DIN-35 rail | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 3.565MJ |
Weight | 182.4g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -25 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000 m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2 |
EMC emission of interference | per EN 61000-6-4 | Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-07 |
eCl@ss 9.0 | 27-24-26-07 | ETIM 9.0 | EC001603 |
ETIM 8.0 | EC001603 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1 pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 8517620090 |
End of Sale | 2023-11-01 | End of Production | 2024-01-31 |
End of Delivery | 2024-02-01 | End of Service and Repair | 2026-02-01 |
CAS-No. | 12060-00-3 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Bulgaria) | 2066a638-a51c-4317-8efd-d9c911a6505b | SCIP notification number (Czech Republic) | 089407bc-ffdb-4a26-9361-7e44116fcf93 |
