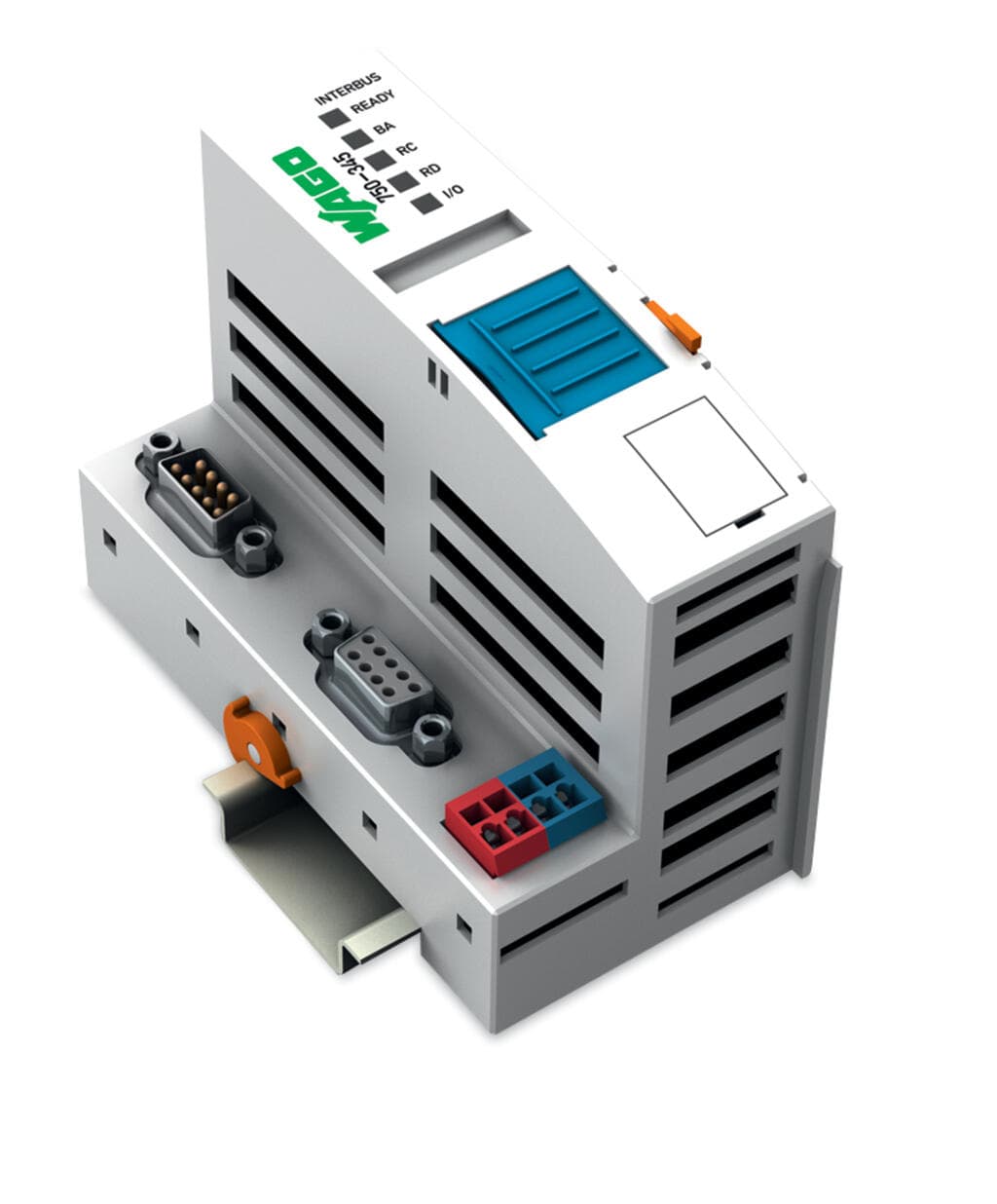

Product Model
750-345
Selling Points
- 1Connects to INTERBUS systems for seamless integration.
- 2Supports 2 MBd digital and analog signals for precise data transfer.
- 3High reliability and efficiency in industrial automation applications.
- 4Compatible with up to 64 modules per node and 256 fieldbus nodes on the master.
- 5Robust environmental specifications including shock resistance and vibration resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Communications | INTERBUS | Number of fieldbus nodes on master (max.) | 256 |
Number of I/O points | 4,096 | Transmission rate | 2 MBd |
Bus segment length (max.) | 150 m | Transmission medium (communication/fieldbus) | Certified Cu cable |
Number of modules per node (max.) | 64 | Input and output process image (fieldbus) max. | 20 bytes/20 bytes |
Supply voltage (system) | 24 VDC (-15 … +20 %); via pluggable connector | Current consumption (5 V system supply) | 350mA |
Total current (system supply) | 650mA | Input current (typ.) at nominal load (24?V) | 260mA |
Power supply efficiency (typ.) at nominal load (24 V) | 80% | Standard | EN 50254 |
Connection technology: communication/fieldbus | INTERBUS: 1 x D-Sub 9 plug / D-Sub 9 socket | Connection technology: system supply | 4 x CAGE CLAMP? |
Connection type 1 | System supply | Solid conductor | 0.08 … 1.5 mm2 / 28 … 16 AWG |
Fine-stranded conductor | 0.08 … 1.5 mm2 / 28 … 16 AWG | Strip length | 5 … 6 mm / 0.2 … 0.24 inches |
Note (conductor cross-section) | 14 AWG: THHN, THWN | Connection technology: device configuration | 1 x Male connector; 4-pole |
Width | 49.5 mm / 1.949 inches | Height | 71.9 mm / 2.831 inches |
Depth | 96.8 mm / 3.811 inches | Mounting type | DIN-35 rail |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 1.65MJ | Weight | 115g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -25 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.) |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2 | EMC emission of interference | per EN 61000-6-4 |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-07 | eCl@ss 9.0 | 27-24-26-07 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | Box | Country of origin | DE |
Customs tariff number | 8517620090 | End of Sale | 2018-03-01 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
