Product Model

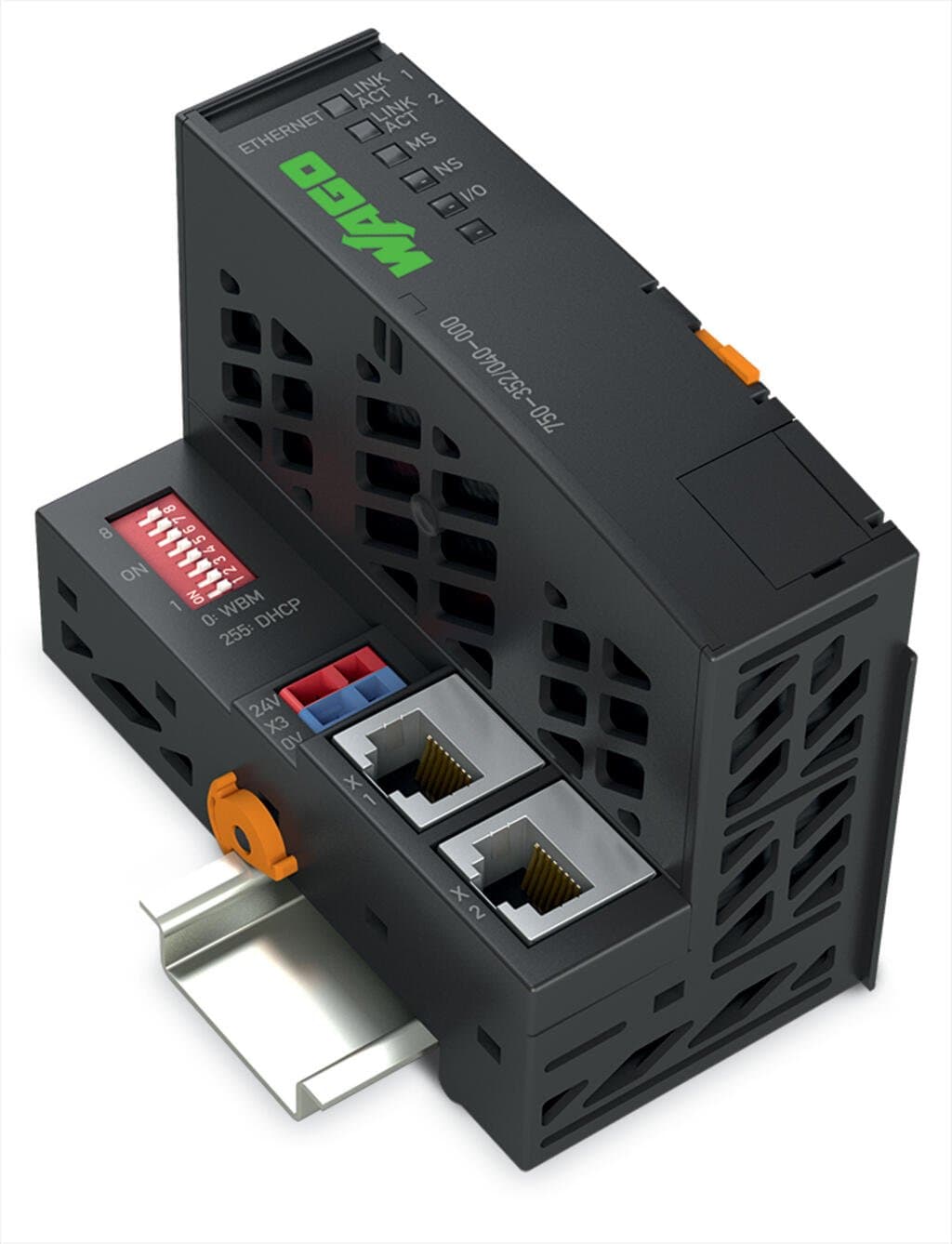

750-352/040-000
Selling Points
- 1The 750-352 ETHERNET Fieldbus Coupler automatically configures, creating a local process image for analog, digital, or specialty modules.
- 2Supports EtherNet/IP, MODBUS, and various standard Ethernet protocols like HTTP, BootP, DHCP, DNS, SNMP, and FTP.
- 3Provides configuration options and status information through an integrated web server.
- 4Designed for harsh environmental conditions with a strongly extended temperature range, higher dielectric strength, and EMC resistance.
- 5Compact design with dimensions of 49.5 mm x 71.9 mm x 96.8 mm, suitable for DIN-35 rail mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Communications | EtherNet/IPTM | ETHERNET protocols | HTTP |
Transmission rate | 10/100 Mbit/s | Transmission medium (communication/fieldbus) | Twisted pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length |
Transmission performance | Class D per EN 50173 | Number of modules per node (max.) | 64 |
Input and output process image (fieldbus) max. | 1020 words/1020 words | Supply voltage (system) | 24 VDC; via pluggable connector (CAGE CLAMP? connection); Derating must be observed! |
Current consumption (5 V system supply) | 450mA | Total current (system supply) | 700mA |
Input current (typ.) at nominal load (24?V) | 280mA | Power supply efficiency (typ.) at nominal load (24 V) | 90% |
Rated surge voltage | 1 kV | Ratings per | IEC/EN 60664-1 |
Derating | Derating (supply voltage):Ambient temperatures under laboratory conditions: (?25 … +30°%);for ?40 … +55°°C: 24°V (?25 … +20°%);for +55 … +70°°C: 24°V (?25 … +10°%);Lower limit in all temperature ranges: ?27.5°% (including 15°% residual ripple) | Connection technology: communication/fieldbus | EtherNet/IPTM: 2 x RJ-45; Modbus (TCP, UDP): 2 x RJ-45 |
Connection technology: system supply | 2 x CAGE CLAMP? | Connection type 1 | System supply |
Solid conductor | 0.25 … 1.5 mm2 / 24 … 16 AWG | Fine-stranded conductor | 0.25 … 1.5 mm2 / 24 … 16 AWG |
Strip length | 5 … 6 mm / 0.2 … 0.24 inches | Connection technology: device configuration | 1 x Male connector; 4-pole |
Width | 49.5 mm / 1.949 inches | Height | 96.8 mm / 3.811 inches |
Depth | 71.9 mm / 2.831 inches | Depth from upper-edge of DIN-rail | 64.7 mm / 2.547 inches |
Mounting type | DIN-35 rail | Color | dark gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 1.397MJ |
Weight | 80.6g | Conformity marking | CE |
Ambient temperature (operation) | -40 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.) | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Relative humidity (with condensation) | Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation) |
Vibration resistance | per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373 | Shock resistance | per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 50155, EN 61373 |
EMC immunity to interference | per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26;EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994 | EMC emission of interference | per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5 |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-07 | eCl@ss 9.0 | 27-24-26-07 |
ETIM 9.0 | EC001603 | ETIM 8.0 | EC001603 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | Box | Country of origin | DE |
Customs tariff number | 8517620090 | End of Sale | 2022-01-31 |
End of Production | 2023-02-28 | End of Delivery | 2023-03-31 |
End of Service and Repair | 2026-12-31 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 0aecbeaf-8051-4312-a90c-427746a575d4 |
SCIP notification number (Belgium) | 55248b91-cfbc-4c5f-a949-ed492aafe0b4 | SCIP notification number (Bulgaria) | a2619147-64dd-48ac-8547-66fa86c4e96a |
SCIP notification number (Czech Republic) | 133dec84-32fa-48c6-9a96-639947bb6fe8 | SCIP notification number (Denmark) | 73ca2bb1-bde8-4b6d-87bb-626e6071ddb6 |
SCIP notification number (Finland) | 516f43b1-071e-47d6-8b7b-b4dcb6c457fa | SCIP notification number (France) | add80904-990e-4741-8729-e70e0765aa14 |
SCIP notification number (Germany) | 598bf4b7-29f0-42a4-8073-9d99976d2aee | SCIP notification number (Hungary) | 12e0e78c-8038-43a4-b8bc-f1430a71acc1 |
SCIP notification number (Italy) | 01aa4378-6b30-4819-b38e-f3afe863f1ee | SCIP notification number (Netherlands) | 1693f86d-88b8-454f-aa3a-067bd4d4d5bd |
SCIP notification number (Poland) | db5cda7d-d153-4878-b12c-425809abb3f9 | SCIP notification number (Romania) | 385d057f-b258-40f4-84f2-209e488deb41 |
SCIP notification number (Sweden) | 4eea68c7-7a66-461f-b24e-82358d200b90 |
Specifications may be subject to change without notice
