Product Model

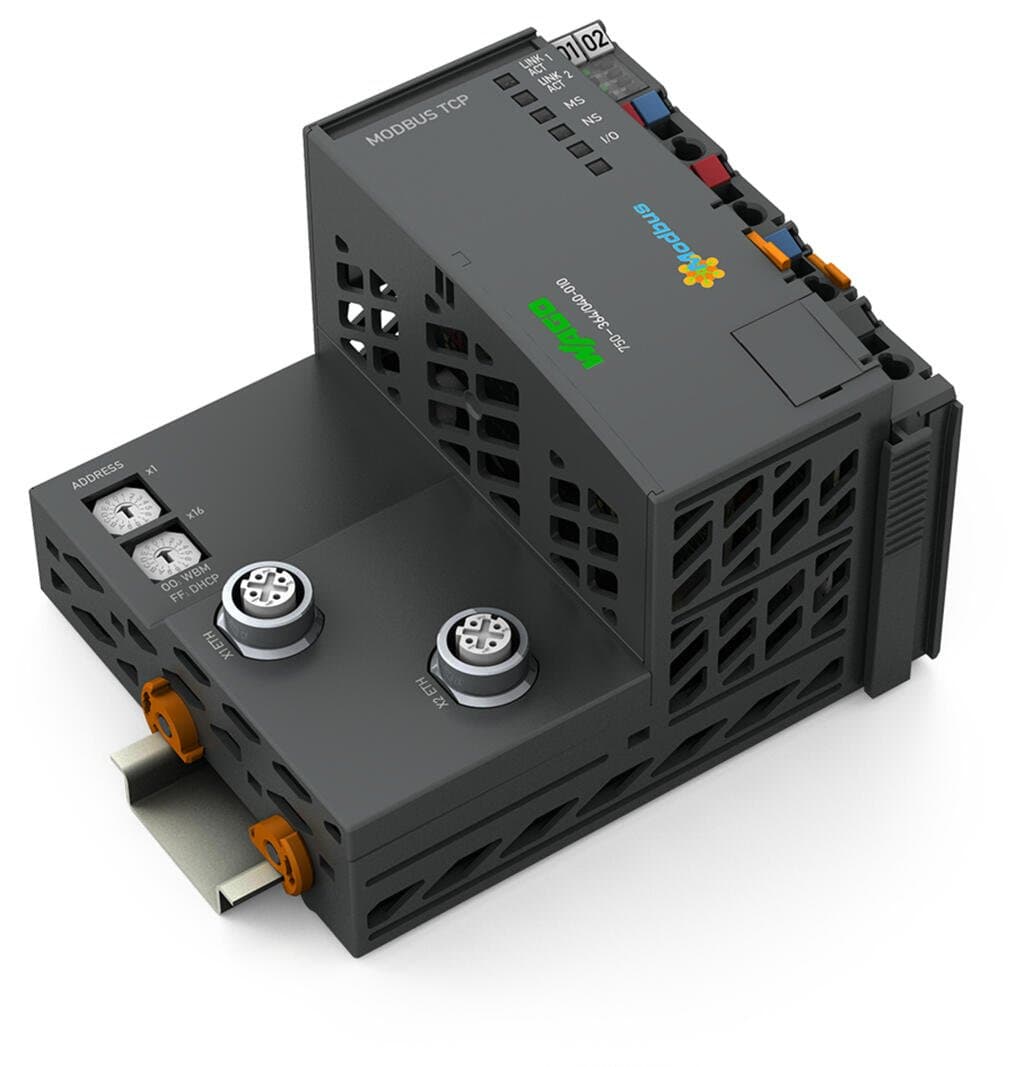

750-364/040-010
Selling Points
- 1Resistant to dirt and moisture, ensuring safe and reliable contact.
- 2M12 connectors provide vibration-proof and error-free data transmission.
- 3Designed for harsh environments, including railway and marine applications.
- 4Features advanced PFC200 technology with a 1 GHz Cortex A8 CPU and 512 MB RAM.
- 5Saves valuable control cabinet space with a small footprint and high channel density.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Communications | Modbus (TCP, UDP) | ETHERNET protocols | HTTP(S) |
Transmission rate | 10/100 Mbit/s | Transmission medium (communication/fieldbus) | Twisted pair S-UTP; 100 Ω; Cat. 5; M12 D-coded; 100 m maximum cable length |
Transmission performance | Class D per EN 50173 | Number of modules per node (max.) | 64 |
Number of modules without a bus extension (max.) | 64 | Configuration options | WAGO-I/O-CHECK |
Input and output process image (fieldbus) max. | 1020 words/1020 words | Supply voltage (system) | 24 VDC; via pluggable connector (CAGE CLAMP? connection); Derating must be observed! |
Current consumption (5 V system supply) | 350mA | Total current (system supply) | 1,700mA |
Supply voltage (field) | 24 VDC; Power supply via pluggable connector (CAGE CLAMP? connection); Transmission via power jumper contacts; Derating must be observed! | Input current (typ.) at nominal load (24?V) | 500mA |
Power supply efficiency (typ.) at nominal load (24 V) | 90% | Current carrying capacity (power jumper contacts) | 10A |
Rated surge voltage | 1 kV | Derating | Derating (supply voltage):Ambient temperatures under laboratory conditions: (?25 … +30°%);for ?40 … +55°°C: 24°V (?25 … +20°%);for +55 … +70°°C: 24°V (?25 … +10°%);Lower limit in all temperature ranges: ?27.5°% (including 15°% residual ripple) |
Indicators | LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS, NS) red/green: Status of node, network; LED (I/O) red/green/orange: Status of local data bus | Connection technology: communication/fieldbus | Modbus (TCP, UDP): 2 x M12 socket; 4-pole; D-coded |
Connection technology: field supply | 6 x CAGE CLAMP? | Connection technology: system supply | 2 x CAGE CLAMP? |
Connection type 1 | System/field supply | Solid conductor | 0.25 … 2.5 mm2 / 24 … 14 AWG |
Fine-stranded conductor | 0.25 … 2.5 mm2 / 24 … 14 AWG | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Connection technology: device configuration | 1 x Male connector; 4-pole | Width | 112 mm / 4.409 inches |
Height | 100 mm / 3.937 inches | Depth | 71.9 mm / 2.831 inches |
Depth from upper-edge of DIN-rail | 64.7 mm / 2.547 inches | Mounting type | DIN-35 rail |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 3.284MJ |
Weight | 213g | Conformity marking | CE |
Ambient temperature (operation) | -40 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.) | Mounting position | Horizontal left, horizontal up, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Relative humidity (with condensation) | Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation) |
Vibration resistance | per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373 | Shock resistance | per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 50155, EN 61373 |
EMC immunity to interference | per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26;EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994 | EMC emission of interference | per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5 |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | ETIM 9.0 | EC001603 |
ETIM 8.0 | EC001603 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1 pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 8537109170 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | fd0b3d11-fef3-4362-b097-eb649e745b1d | SCIP notification number (Belgium) | ff12d840-2ee4-4f59-9444-2631e34e3723 |
SCIP notification number (Bulgaria) | 50393ef7-c9a5-4525-9c03-841a44052264 | SCIP notification number (Czech Republic) | 3ab4865f-3708-4f1a-988f-4f2f73e5adfa |
SCIP notification number (Denmark) | e1cde183-f47f-43dd-93fe-987c1ecce384 | SCIP notification number (Finland) | cfb5241d-bbc8-4948-8620-c03f83c40a9c |
SCIP notification number (France) | 091653e8-a507-4c5b-beea-60551d1e2bd7 | SCIP notification number (Germany) | 5fbc9028-1c1f-44ea-a381-761c3e77ed4e |
SCIP notification number (Hungary) | 947796b1-364f-4ef0-af07-cdc7a5fb1903 | SCIP notification number (Italy) | d5ea85cf-0ac9-49cc-9331-671a1c16a0b8 |
SCIP notification number (Netherlands) | b0eba6a8-c4e3-445a-8963-a812287e92fc | SCIP notification number (Poland) | 749e9508-e18f-42b9-9fb2-7041dc4bb49f |
SCIP notification number (Romania) | 6fadd179-0157-44cb-a900-18fb024a0fda | SCIP notification number (Sweden) | 2f11d552-1bff-459e-bba7-bcd84e975d3d |
Specifications may be subject to change without notice
