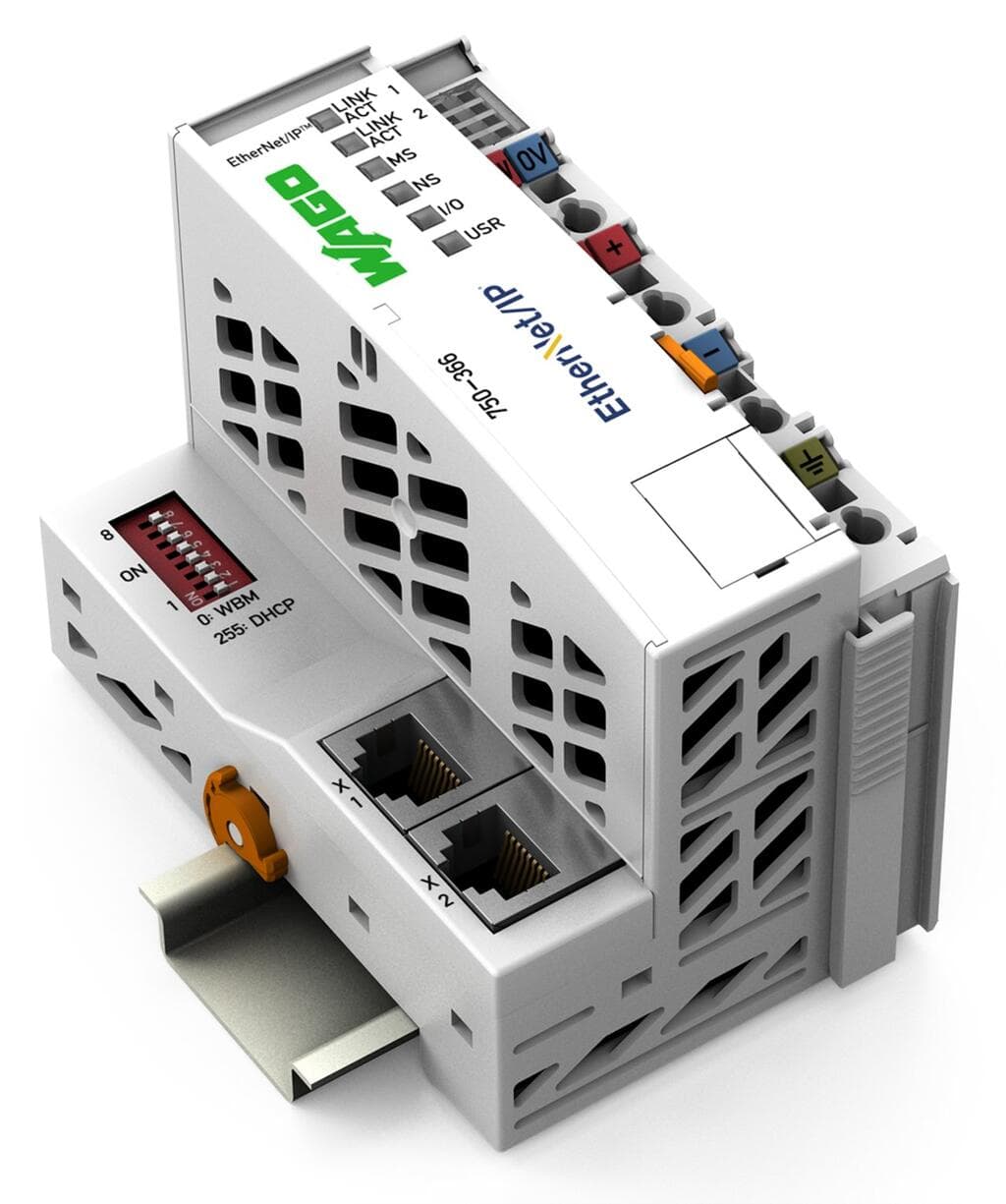

Product Model
750-366
Selling Points
- 1Connects EtherNet/IP fieldbus systems with the modular WAGO I/O System.
- 2Supports HTTP(S), BootP, DHCP, DNS, SNMP, and FTP(S) protocols for versatile configuration.
- 3Provides user-friendly configuration and status information through an integrated web server.
- 4Supports 10/100 Mbit/s baud rate and up to 100 m of twisted pair S-UTP cable length.
- 5Meets IP20 protection standards and operates in temperatures from 0°C to 55°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Communications | EtherNet/IPTM | ETHERNET protocols | HTTP(S) |
Transmission rate | 10/100 Mbit/s | Transmission medium (communication/fieldbus) | Twisted pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length |
Transmission performance | Class D per EN 50173 | Number of modules per node (max.) | 250 |
Number of modules without a bus extension (max.) | 64 | Input and output process image (fieldbus) max. | 1020 words/1020 words |
Supply voltage (system) | 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP?connection) | Current consumption (5 V system supply) | 300mA |
Total current (system supply) | 1,700mA | Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts |
Input current (typ.) at nominal load (24?V) | 480mA | Power supply efficiency (typ.) at nominal load (24 V) | 90% |
Isolation | 500 V system/field | Number of outgoing power jumper contacts | 3 |
Current carrying capacity (power jumper contacts) | 10A | Indicators | LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS, NS) red/green: Status of node, network; LED (I/O) red/green/orange: Status of local data bus |
Connection technology: communication/fieldbus | EtherNet/IPTM: 2 x RJ-45 | Connection technology: field supply | 6 x CAGE CLAMP? |
Connection technology: system supply | 2 x CAGE CLAMP? | Connection type 1 | System/field supply |
Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Strip length | 8 … 9 mm / 0.31 … 0.35 inches | Connection technology: device configuration | 1 x Male connector; 4-pole |
Width | 62 mm | Height | 100 mm / 3.937 inches |
Depth | 71.9 mm / 2.831 inches | Depth from upper-edge of DIN-rail | 64.7 mm / 2.547 inches |
Mounting type | DIN-35 rail | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 2.461MJ | Weight | 147.3g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -25 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000 m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-3, marine applications |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | ETIM 9.0 | EC001603 |
ETIM 8.0 | EC001603 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1 pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 8517620090 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
