Product Model

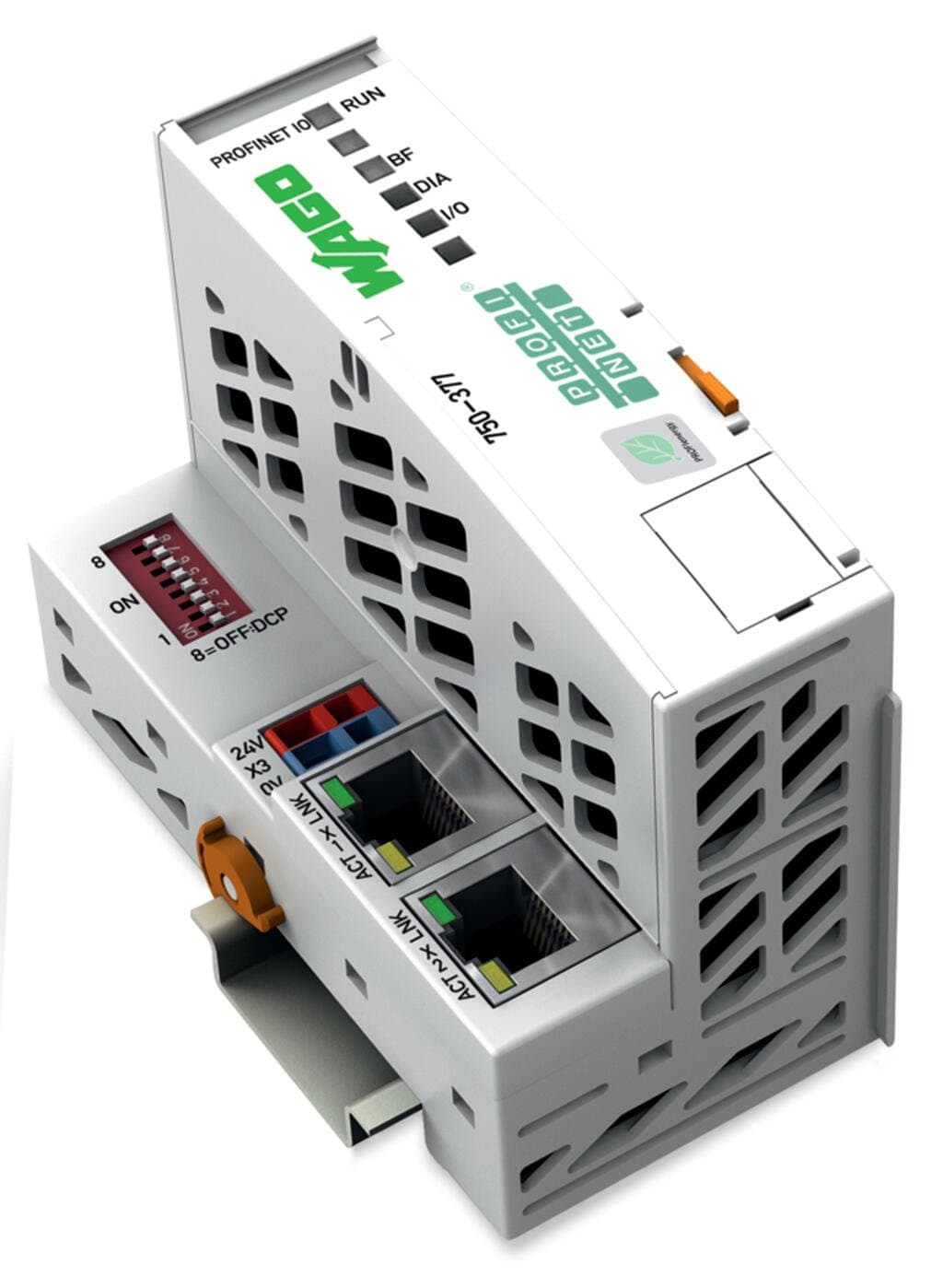

750-377
Selling Points
- 1High-Speed Communication: Supports 10/100 Mbit/s baud rate for Ethernet and PROFINET IO protocols.
- 2Advanced ECO Design: Third generation, eco-friendly design with enhanced performance.
- 3Versatile Mounting: Suitable for horizontal and vertical mounting positions.
- 4Durable Construction: Made from polycarbonate and polyamide 6.6 for robustness.
- 5Wide Compatibility: Compatible with various industrial automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Communications | PROFINET IO | Device-specific | Supported profiles: PROFIsafe V2, PROFIenergy V1.0; ID code: Vendor ID: 0x011D; Device ID: 0x02EE; Module ID: 0x01000177 (firmware version 01, 02), 0x02000177 (from firmware version 03) |
PROFINET IO features | Integrierter 2-Port-Switch; Autonegotiation; Auto-MDIX; isochrone Echtzeitkommunikation; Sendetakt: 1 ms (RT); 1, 2, 4 ms (IRT); Ger?tetausch ohne Programmierger?t | Transmission rate | 10/100 Mbit/s ( (10 Mbit/s (ETHERNET protocols), 100 Mbit/s full duplex (PROFINET IO))) |
Bus segment length (max.) | 100 m | Transmission medium (communication/fieldbus) | Twisted pair S-UTP; 100 Ω; Cat. 5 |
Number of modules per node (max.) | 64 | Number of modules without a bus extension (max.) | 64 |
Input and output process image (fieldbus) max. | 256 bytes/256 bytes | Supply voltage (system) | 24 VDC (-25 … +30 %); via pluggable connector |
Current consumption (5 V system supply) | 450mA | Total current (system supply) | 700mA |
Input current (typ.) at nominal load (24?V) | 280mA | Power supply efficiency (typ.) at nominal load (24 V) | 90% |
Isolation | 500 V system/field | Connection technology: communication/fieldbus | PROFINET IO: 2 x RJ-45 |
Connection technology: system supply | 2 x CAGE CLAMP? | Connection type 1 | System supply |
Solid conductor | 0.08 … 1.5 mm2 / 28 … 14 AWG | Fine-stranded conductor | 0.08 … 1.5 mm2 / 28 … 14 AWG |
Strip length | 5 … 6 mm / 0.2 … 0.24 inches | Connection technology: device configuration | 1 x Male connector; 4-pole |
Width | 49.5 mm / 1.949 inches | Height | 96.8 mm / 3.811 inches |
Depth | 71.9 mm / 2.831 inches | Depth from upper-edge of DIN-rail | 64.7 mm / 2.547 inches |
Mounting type | DIN-35 rail | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 1.438MJ |
Weight | 107.1g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -25 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000 m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-3, marine applications | Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-07 |
eCl@ss 9.0 | 27-24-26-07 | ETIM 9.0 | EC001603 |
ETIM 8.0 | EC001603 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1 pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 8517620090 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | 2-methylimidazole |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 8e50993b-352f-4caf-b004-7e9bce6f15bb | SCIP notification number (Belgium) | a14f6ab6-06ac-4c61-98a2-5c189db49153 |
SCIP notification number (Bulgaria) | 2a37af0c-f34d-4aed-afec-3f07e855fd3a | SCIP notification number (Czech Republic) | 4533a93d-d469-4c73-8f02-f71b1d908549 |
SCIP notification number (Denmark) | d80e9460-6e10-4c56-9fe2-521065092b5a | SCIP notification number (Finland) | a863a644-f00a-44c2-8803-845c28ed6d3a |
SCIP notification number (France) | d2bd405c-a678-4596-9082-85dc4e946173 | SCIP notification number (Germany) | 92183a6e-26ea-470d-aff7-cc025a1b5463 |
SCIP notification number (Hungary) | b146cca2-9aec-44c2-9ab9-34650969996e | SCIP notification number (Italy) | c2952b09-a026-4fb2-bdc1-29d0d10f0151 |
SCIP notification number (Netherlands) | 1184562c-de93-4a45-ad62-0783d6050495 | SCIP notification number (Poland) | 566db317-8dbc-4015-b228-7d4e34300976 |
SCIP notification number (Romania) | b746bece-b994-46d0-be97-e360b08af70e | SCIP notification number (Sweden) | 8583835a-b794-43b9-92a9-38cb252241c7 |
Specifications may be subject to change without notice
