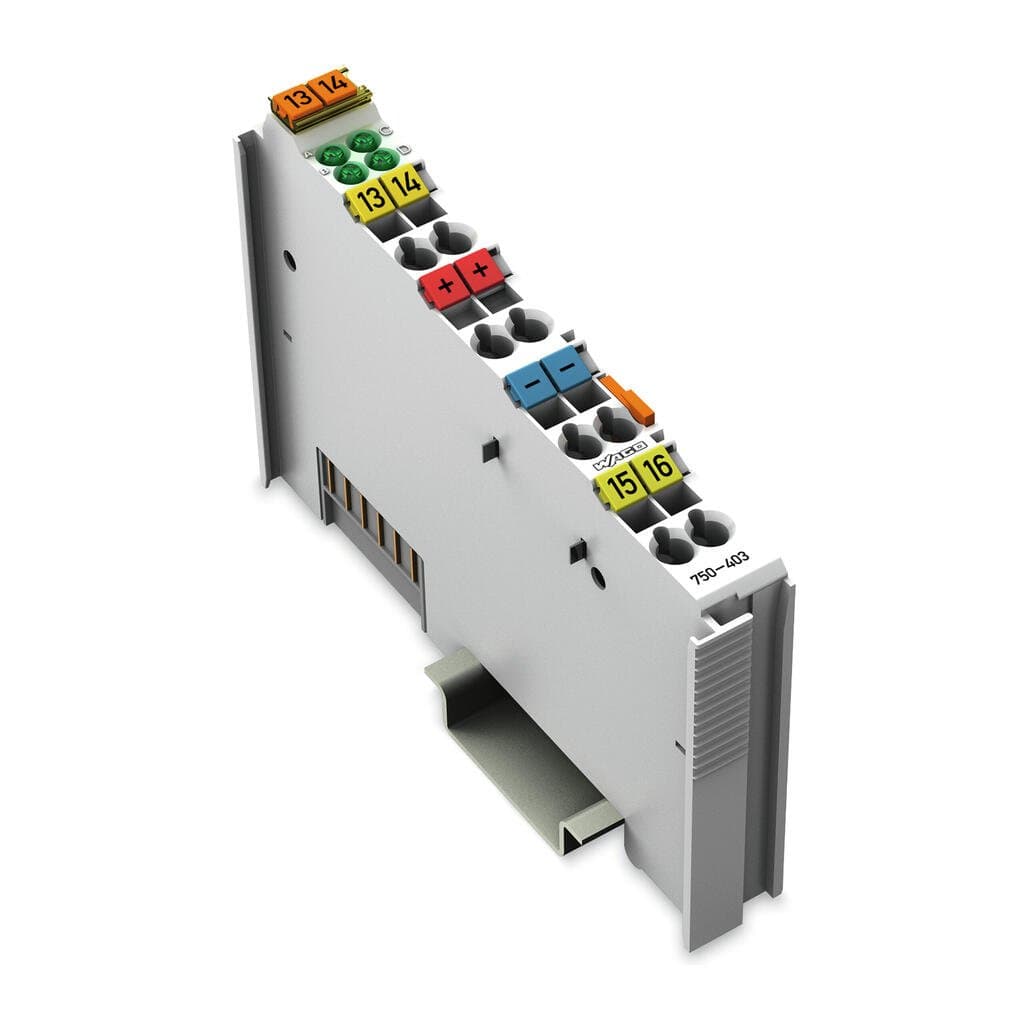

Product Model
750-403
Selling Points
- 14-Channel Digital Input: Handle multiple digital signals with this versatile module.
- 224 VDC Input: Compatible with standard DC voltage systems.
- 30.2 ms Response Time: Fast and accurate signal processing for real-time applications.
- 4DIN Rail Mounting: Easy installation on standard DIN rail systems.
- 5IP20 Protection: Robust and reliable in industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of digital inputs | 4 | Number of Channels | 4 |
Signal type | Digital | Signal type (voltage) | 24 VDC |
Sensor connection | 2 x (2-wire, 3-wire); A suitable field side connection module (e.g., 750-614) must also be used to connect other sensors. | Input characteristic | high-side switching |
Input filter (digital) | 0.2ms | Input current per channel for signal (1) typ. | 4.5mA |
Voltage range for signal (0) | ?3 … +5 VDC | Voltage range for signal (1) | 15 … 30 VDC |
Input data width (internal) max. | 4bits | Supply voltage (system) | 5 VDC; via data contacts |
Current consumption (5 V system supply) | 7.5mA | Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
Isolation | 500 V system/field | Indicators | LED (A-D) green: Status DI 1 … DI 4 |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 10A | Connection technology: inputs / outputs | 8 x CAGE CLAMP?(inputs) |
Connection type 1 | Input | Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Width | 12 mm / 0.472 inches | Height | 100 mm / 3.937 inches |
Depth | 69.8 mm / 2.748 inches | Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mounting type | DIN-35 rail | Pluggable connector | fixed |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 1.248MJ | Weight | 46.9g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000 m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-4, marine applications |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-04 | eCl@ss 9.0 | 27-24-26-04 |
ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | Box | Country of origin | DE |
Customs tariff number | 85389099990 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 051e5a1a-2934-400b-88cf-85c681921d87 |
SCIP notification number (Belgium) | cea411d0-fc84-4ab9-94bd-03a9cc2c2f48 | SCIP notification number (Bulgaria) | 64974283-0208-4200-b0aa-36deb8d883ba |
SCIP notification number (Czech Republic) | 9433f7a7-c726-4f58-8418-1e0495bb4639 | SCIP notification number (Denmark) | 2cf7fbb7-cc15-406a-8f74-2112f7ea6060 |
SCIP notification number (Finland) | c487daaf-a6e7-44d3-8f90-01795c8a5761 | SCIP notification number (France) | 86e27577-aa2a-4738-8e4d-20d5f055c182 |
SCIP notification number (Germany) | a9c29a72-8a8c-40f3-933a-31669aeeedfb | SCIP notification number (Hungary) | 540ba0b4-56d0-419d-92fa-873eea346775 |
SCIP notification number (Italy) | bf192d6f-5b17-4dae-8c53-ebf6da182cfb | SCIP notification number (Netherlands) | 2fb64090-b589-40f0-8a19-7d8714d92296 |
SCIP notification number (Poland) | 2a11194a-10ce-4e10-a483-711642b935d5 | SCIP notification number (Romania) | d0955f77-c3bc-4c8b-86e3-0c6d6c055c59 |
SCIP notification number (Sweden) | 6a7ea3ff-29b0-4c29-bbe9-5cfa17ae7823 |
Specifications may be subject to change without notice
