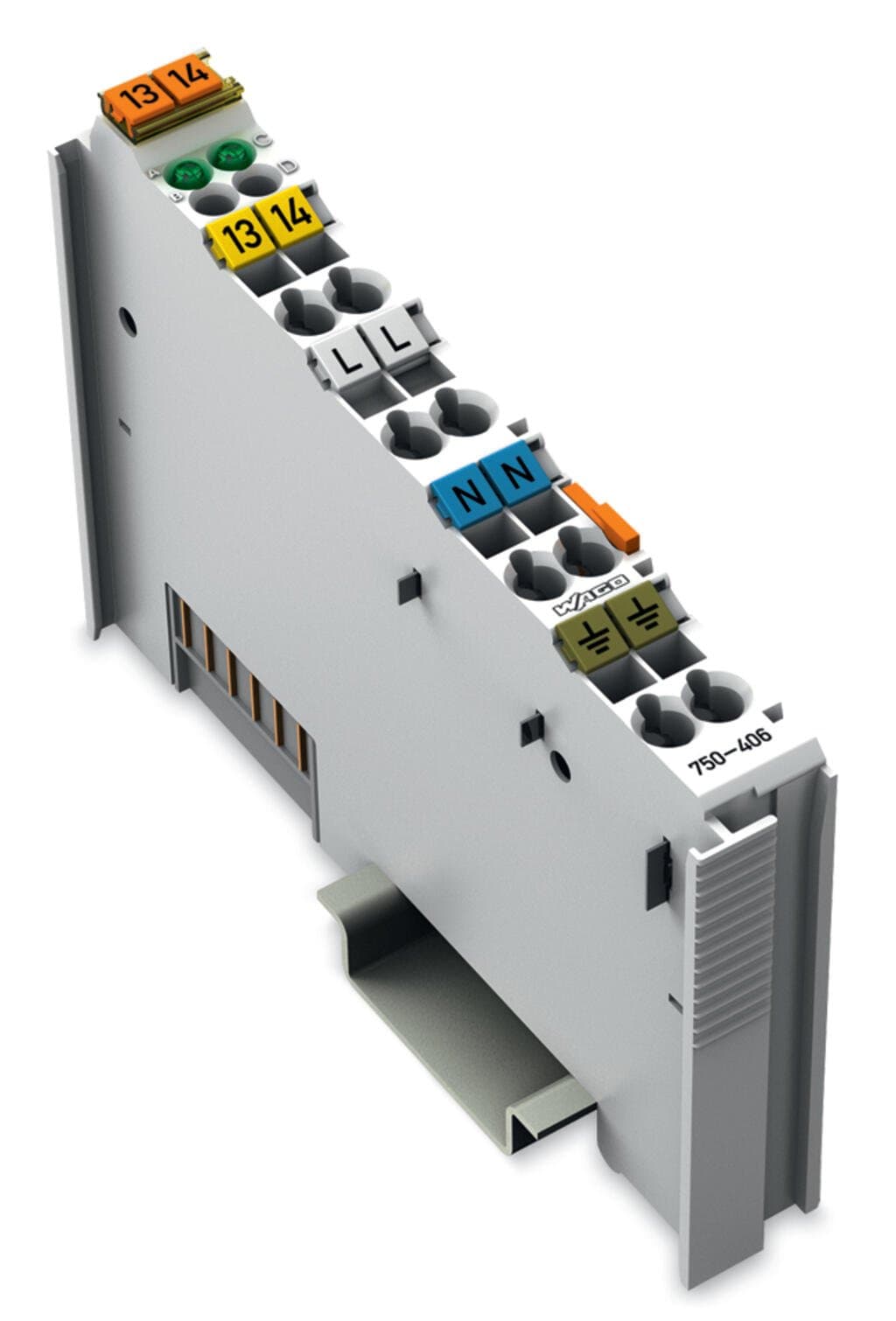

Product Model
750-406
Selling Points
- 1Easily integrates into your existing automation setup with DIN-35 rail mounting.
- 2Ensures reliable signal transmission with high-side switching input characteristic.
- 3Provides robust electrical isolation between field and system levels.
- 4Reduces noise with a 10ms input filter, ensuring clean signal reception.
- 5Visual confirmation of channel signal status with green LED indicators.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of digital inputs | 2 | Number of Channels | 2 |
Signal type | Digital | Signal type (voltage) | 120 VAC |
Sensor connection | 2 x (2-wire, 3-wire, 4-wire) | Input characteristic | high-side switching |
Input filter (digital) | 10ms | Input current per channel for signal (1) typ. | 4.5mA |
Voltage range for signal (0) | 0 … 20 VAC | Voltage range for signal (1) | 79 VAC … 1.1 x UN |
Signal frequency (min.) | 45Hz | Signal frequency (max.) | 65Hz |
Input data width (internal) max. | 2bits | Supply voltage (system) | 5 VDC; via data contacts |
Current consumption (5 V system supply) | 2mA | Supply voltage (field) | 120 VAC (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
Isolation | 1500 V (system/field) | Indicators | LED (A, C) green: Status DI 1, DI 2 |
Number of incoming power jumper contacts | 3 | Number of outgoing power jumper contacts | 3 |
Current carrying capacity (power jumper contacts) | 10A | Connection technology: inputs / outputs | 8 x CAGE CLAMP?(inputs) |
Connection type 1 | Input | Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Width | 12 mm / 0.472 inches | Height | 100 mm / 3.937 inches |
Depth | 69.8 mm / 2.748 inches | Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mounting type | DIN-35 rail | Pluggable connector | fixed |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 1.241MJ | Weight | 47.6g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000 m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-4, marine applications |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-04 | eCl@ss 9.0 | 27-24-26-04 |
ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | Box | Country of origin | DE |
Customs tariff number | 85389099990 | CAS-No. | 12060-00-3 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 217037ac-e95f-4266-a5e2-5799ab6c4678 |
SCIP notification number (Belgium) | 5528d5ba-6e47-4e86-b2dc-f851d6f5479e | SCIP notification number (Bulgaria) | 1e381dc9-ede2-4513-a0d3-9eefd95c82ce |
SCIP notification number (Czech Republic) | c4cd1a53-88b2-41d3-b7c0-13c12d2c3320 | SCIP notification number (Denmark) | 5f102c3f-b0aa-4e77-a8e0-3be9b6c19a3e |
SCIP notification number (Finland) | 701d260d-7c35-4004-aea7-a7c715178378 | SCIP notification number (France) | 406ee1c8-4a5a-4566-bea7-a7e90974424f |
SCIP notification number (Germany) | 4c7ea41b-1317-44d6-b6d4-fac505bfac90 | SCIP notification number (Hungary) | cc0cbcb0-5854-4598-8f79-2977dd073505 |
SCIP notification number (Italy) | 81839ff2-2442-499f-9e90-e92cdfe72588 | SCIP notification number (Netherlands) | c376f358-3123-4598-926c-954042937af8 |
SCIP notification number (Poland) | ed4c68a5-bfeb-49d8-b96a-41d3b4e23d8c | SCIP notification number (Romania) | a2e90353-eece-4e9d-a3a1-63f228bdfc61 |
SCIP notification number (Sweden) | 3c3f02e7-b9e7-42c8-be4c-55a42c250661 |
Specifications may be subject to change without notice
