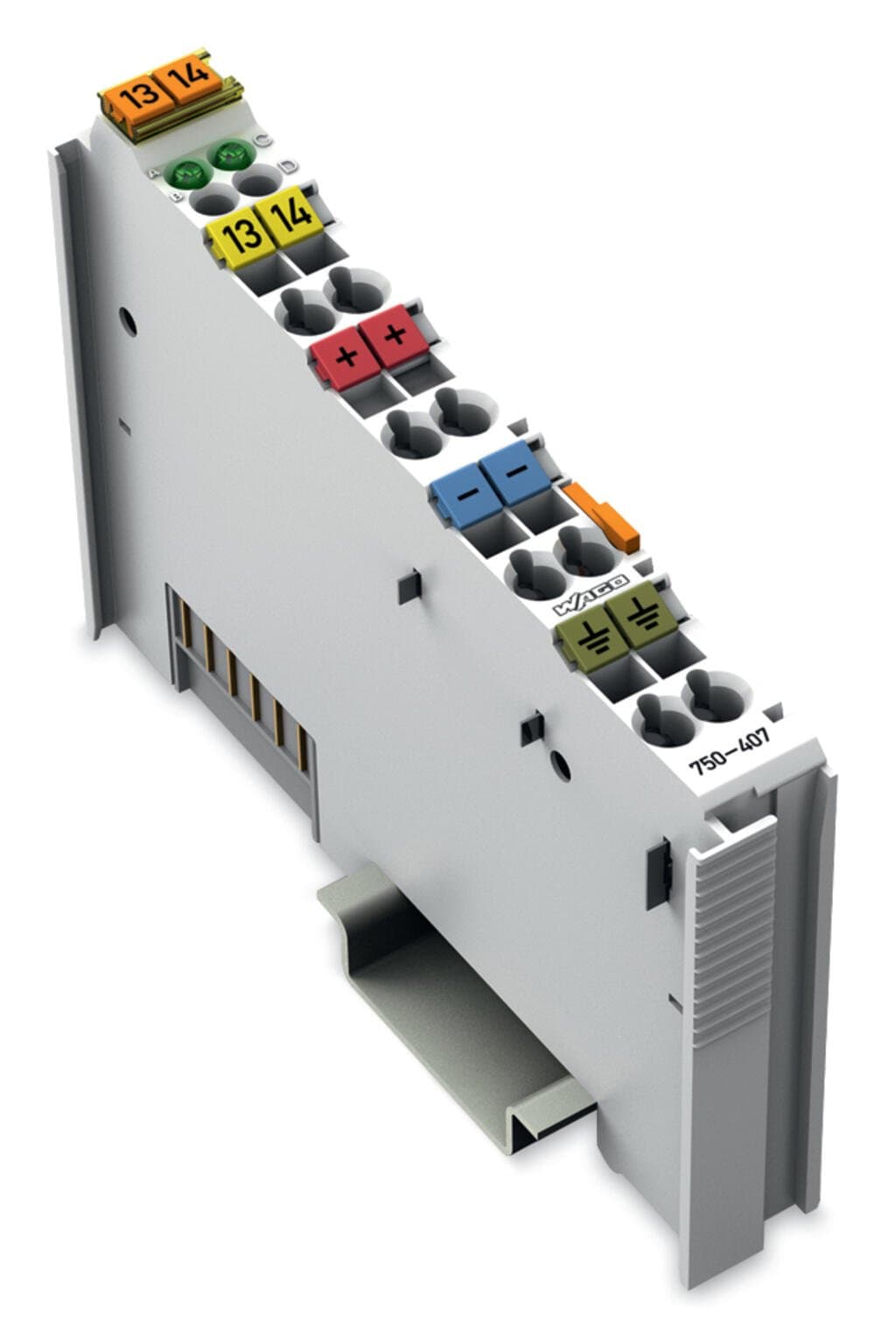

Product Model
750-407
Selling Points
- 1Robust Design: Built for DIN-35 rail mounting with a width of 12mm.
- 2High-Side Switching: Supports 2-wire, 3-wire, or 4-wire connections.
- 3Advanced Filtering: Equipped with a 3ms filter for digital inputs.
- 4Reliable Connectivity: Features spring cage-clamp connections for secure wiring.
- 5Wide Temperature Range: Operates in ambient temperatures from 0°C to +55°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of digital inputs | 2 | Number of Channels | 2 |
Signal type | Digital | Signal type (voltage) | 220 VDC |
Sensor supply | 220 VDC | Sensor connection | 2 x (2-wire, 3-wire, 4-wire) |
Input characteristic | high-side switching | Input filter (digital) | 3ms |
Input current per channel for signal (1) typ. | 1.2mA | Voltage range for signal (0) | ?3 … +100 VDC |
Voltage range for signal (1) | 160 … 286 VDC | Input data width (internal) max. | 2bits |
Supply voltage (system) | 5 VDC; via data contacts | Current consumption (5 V system supply) | 5mA |
Supply voltage (field) | 220 VDC (-20 … +25 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Indicators | LED (A, C) green: Status DI 1, DI 2 |
Number of incoming power jumper contacts | 3 | Number of outgoing power jumper contacts | 3 |
Current carrying capacity (power jumper contacts) | 10A | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Connection technology: inputs / outputs | 8 x CAGE CLAMP?(inputs) |
Connection type 1 | Input | Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Width | 12 mm / 0.472 inches | Height | 100 mm / 3.937 inches |
Depth | 69.8 mm / 2.748 inches | Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mounting type | DIN-35 rail | Pluggable connector | fixed |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 1.115MJ | Weight | 47g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Operating altitude | 0 … 2000 m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2 | EMC emission of interference | per EN 61000-6-3 |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-04 | eCl@ss 9.0 | 27-24-26-04 |
ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | Box | Country of origin | DE |
Customs tariff number | 85389099990 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | e27ae7f8-e6b9-469a-9ead-db182574f973 |
SCIP notification number (Belgium) | cf899e3e-0a5a-4a8c-93dc-eff87bad4b24 | SCIP notification number (Bulgaria) | 85ab7aeb-dc8c-4b75-ab17-d5d7efadcd6d |
SCIP notification number (Czech Republic) | 99d5b158-28f9-40fc-8375-b2004b9ef14e | SCIP notification number (Denmark) | 633184a7-b040-4411-baad-455fe58bf47e |
SCIP notification number (Finland) | 6624d746-7b84-46a9-aded-79f690c248c5 | SCIP notification number (France) | cbd5a1d6-837e-4053-9bec-89638e387005 |
SCIP notification number (Germany) | a306e6ec-27fe-47c5-89e8-07831b0c7518 | SCIP notification number (Hungary) | 76c18610-19bb-460c-97eb-0ba60818756a |
SCIP notification number (Italy) | 400e94f4-aca9-4350-a5c5-1a17031e0b6e | SCIP notification number (Netherlands) | 3f464101-80fd-417b-bbdf-4ce8a09335c4 |
SCIP notification number (Poland) | cd6974e1-4db0-4d66-9efc-b2a2733ff3ed | SCIP notification number (Romania) | 359b9955-f955-491d-ad53-820a03c6a2d2 |
SCIP notification number (Sweden) | 8dfa4535-c1a8-484d-ad59-e8893cfd4b4e |
Specifications may be subject to change without notice
