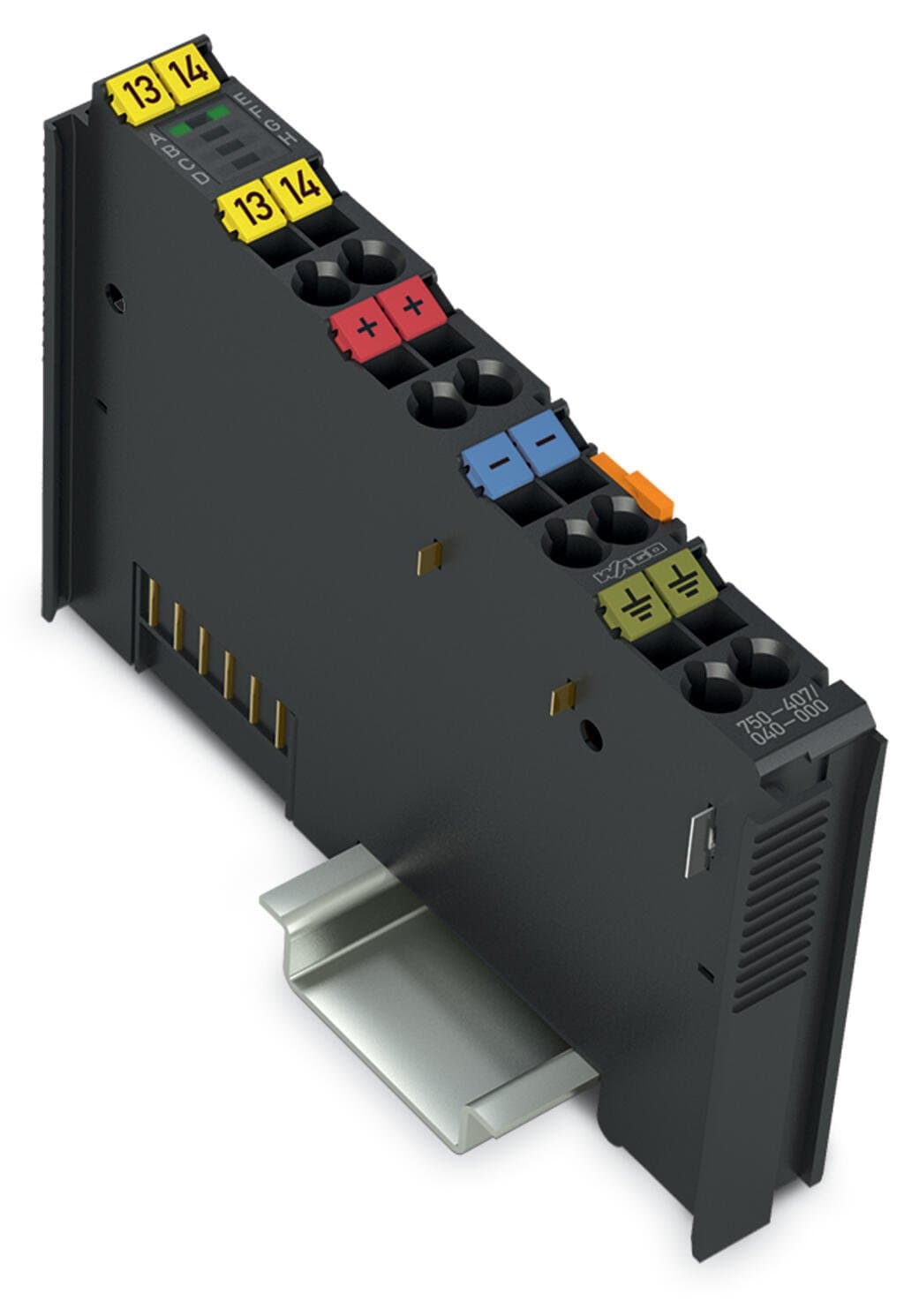

Product Model
750-407/040-000
Selling Points
- 1Operates between -40°C and +70°C, suitable for harsh environments.
- 2Ensures reliable digital input with high-side switching technology.
- 3Reduces noise and improves signal quality with a 3ms noise-rejection filter.
- 4Provides electrical isolation and protection against environmental contaminants.
- 5Easy installation on DIN-35 rail, ensuring compact and efficient use in automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of digital inputs | 2 | Number of Channels | 2 |
Signal type | Voltage | Signal type (voltage) | 220 VDC |
Sensor supply | 220 VDC | Sensor connection | 2 x (2-wire, 3-wire, 4-wire) |
Input characteristic | High-side switching | Input filter (digital) | 3ms |
Input current per channel for signal (1) typ. | 1.2mA | Voltage range for signal (0) | ?3 … +100 VDC |
Voltage range for signal (1) | 160 … 286 VDC | Input data width (internal) max. | 2bits |
Supply voltage (system) | 5 VDC; via data contacts | Current consumption (5 V system supply) | 5mA |
Supply voltage (field) | 220 VDC (-20 … +25 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Indicators | LED (A, E) green: Status DI 1, DI 2 |
Number of incoming power jumper contacts | 3 | Number of outgoing power jumper contacts | 3 |
Current carrying capacity (power jumper contacts) | 10A | Derating | Current via power jumper contacts (max.): 10 mA (surrounding air (operating) temperature < 60°°C); 8°A (surrounding air (operating) temperature: 60 … 70°°C) |
Dielectric strength | 2.5 kVAC / 3.5 kVDC; per EN 60870-2-1 | Rated surge voltage | 5.0 kV (EN 60870-2-1 / Class VW3); 4.0 kV (UL 508); 4.0 kV (EN 60664-1 / to 4,000 m ASL); 2.5 kV (EN 60664-1 / > 4,000 m to 5,000 m ASL) |
Protection type | IP20 | Overvoltage category | Nominal voltage 220 V: IV (EN 60664-1 / up to 5,000 m above sea level) |
Pollution degree | 2 per EN 60664-1 | Connection technology: inputs / outputs | 8 x CAGE CLAMP?(inputs) |
Connection type 1 | Input | Solid conductor | 0.25 … 2.5 mm2 / 24 … 14 AWG |
Fine-stranded conductor | 0.25 … 2.5 mm2 / 24 … 14 AWG | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Width | 12 mm / 0.472 inches | Height | 100 mm / 3.937 inches |
Depth | 67.8 mm / 2.669 inches | Depth from upper-edge of DIN-rail | 60.6 mm / 2.386 inches |
Mounting type | DIN-35 rail | Color | dark gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 1.045MJ |
Weight | 47g | Conformity marking | CE |
Ambient temperature (operation) | -40 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Operating altitude | without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.) | Mounting position | Horizontal left, horizontal up, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Relative humidity (with condensation) | Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation) |
Vibration resistance | per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373 | Shock resistance | per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 50155, EN 61373 |
EMC immunity to interference | per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26;EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994 | EMC emission of interference | per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5 |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-04 | eCl@ss 9.0 | 27-24-26-04 |
ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | Box | Country of origin | DE |
Customs tariff number | 8538901000 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 80f1a6ee-42ba-4c49-b1d8-ad1ecc20949f |
SCIP notification number (Belgium) | 08c598fd-b92c-4d93-8672-9e39bbc7af28 | SCIP notification number (Bulgaria) | b260d96e-fed8-40ce-bca4-a3bbc5e587fe |
SCIP notification number (Czech Republic) | c7f54835-71f1-4e3d-811c-ae0020fb7ef1 | SCIP notification number (Denmark) | 241695f2-9b38-4f70-b1c0-23cd78661c78 |
SCIP notification number (Finland) | 48e16d37-2111-4d67-9b26-5402e0a59732 | SCIP notification number (France) | 530d12cf-194b-4eb6-bef0-8e6cc29145b0 |
SCIP notification number (Germany) | 1c40fcca-549c-4dda-bec8-55f885c4bac8 | SCIP notification number (Hungary) | 0e9d7b20-c7b8-4bd1-b9c4-6395db5d2900 |
SCIP notification number (Italy) | 15636019-5f01-406e-af06-81ed108ce853 | SCIP notification number (Netherlands) | 5cd45b71-7b1f-4a00-b6be-cb95b15baff3 |
SCIP notification number (Poland) | 9a607e1f-824a-4631-be52-da15e242031c | SCIP notification number (Romania) | 2c17a631-b802-4567-b5f9-116f6f292c4a |
SCIP notification number (Sweden) | 07f99a6d-33d1-4bb1-a019-b24859a55ffa |
Specifications may be subject to change without notice
