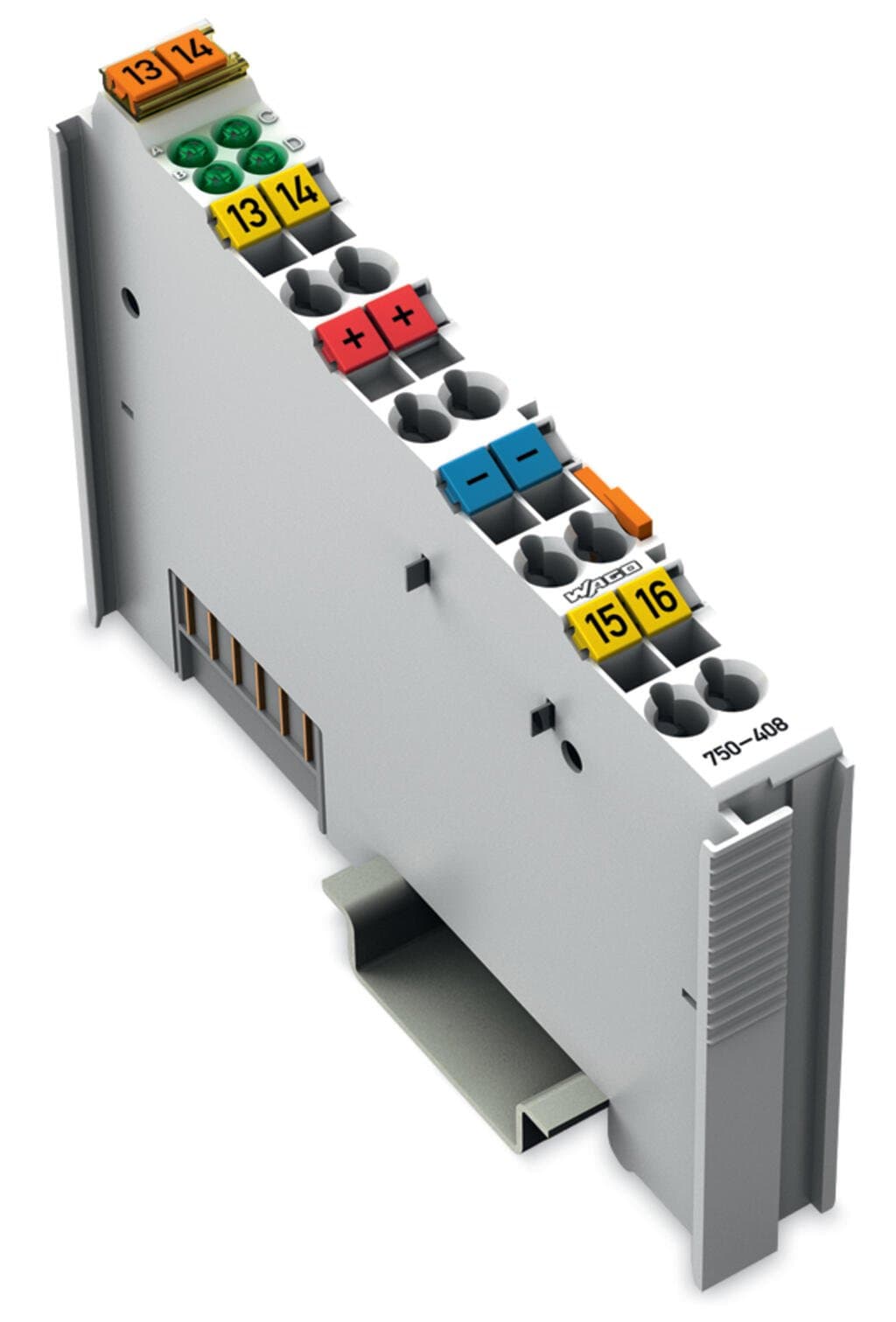

Product Model
750-408
Selling Points
- 14-Channel Digital Input Module: Supports four digital inputs with 24V DC and low-side switching.
- 2DIN Rail Mounting: Designed for easy installation on DIN rail with spring cage-clamp connections.
- 3IP20 Protection: Ensures reliable operation in harsh environments with an IP20 protection rating.
- 4Operates in Wide Temperatures: Functions between 0°C to 55°C, making it suitable for various industrial applications.
- 5Low-Side Switching: Provides efficient and reliable digital input with a 3ms filter for noise reduction.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of digital inputs | 4 | Number of Channels | 4 |
Signal type | Digital | Signal type (voltage) | 24 VDC |
Sensor connection | 2 x (2-wire, 3-wire); A suitable field side connection module (e.g., 750-614) must also be used to connect other sensors. | Input characteristic | low-side switching |
Input filter (digital) | 3ms | Input current per channel for signal (0) typ. | 7mA |
Voltage range for signal (0) | (UV- 5 V) … UVDC | Voltage range for signal (1) | ?3 VDC … (UV- 15 V) |
Input data width (internal) max. | 4bits | Supply voltage (system) | 5 VDC; via data contacts |
Current consumption (5 V system supply) | 5mA | Supply voltage (field) | 24 VDC (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
Isolation | 500 V system/field | Indicators | LED (A-D) green: Status DI 1 … DI 4 |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 10A | Connection technology: inputs / outputs | 8 x CAGE CLAMP?(inputs) |
Connection type 1 | Input | Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Width | 12 mm / 0.472 inches | Height | 100 mm / 3.937 inches |
Depth | 69.8 mm / 2.748 inches | Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mounting type | DIN-35 rail | Pluggable connector | fixed |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 1.622MJ | Weight | 46.5g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000 m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-4, marine applications |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-04 | eCl@ss 9.0 | 27-24-26-04 |
ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | Box | Country of origin | DE |
Customs tariff number | 85389099990 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 178cb836-8016-439d-a0ae-be2c767c8842 |
SCIP notification number (Belgium) | 0b051eff-3e4b-4493-8110-a9c6933727c8 | SCIP notification number (Bulgaria) | 29a0664c-65f7-47d0-a058-71bd5651a20a |
SCIP notification number (Czech Republic) | f281a6ee-8a67-4d99-b114-c795c803b2a3 | SCIP notification number (Denmark) | 14086bc8-43d3-482e-a063-1794f2339150 |
SCIP notification number (Finland) | 3ebe8a2f-91ed-4223-99d2-e1c9e9b0a02c | SCIP notification number (France) | 748fff0c-9f43-43f5-b614-be894ff26797 |
SCIP notification number (Germany) | 130d06ba-0d69-40ad-870d-a742424ad7be | SCIP notification number (Hungary) | 429c444d-623f-40c6-a502-15904ccfcec1 |
SCIP notification number (Italy) | 163ac4cc-fcd1-41fb-bc06-138f8d2f16e2 | SCIP notification number (Netherlands) | d0741ef4-49e3-48ef-a660-999acb90f62c |
SCIP notification number (Poland) | 6b98572c-dfca-4d8b-8838-494547e3c4cc | SCIP notification number (Romania) | 2c57f849-9aed-4276-b682-c686638f6841 |
SCIP notification number (Sweden) | dc0477a5-512b-405c-ab9f-315ad9395f2a |
Specifications may be subject to change without notice
