Product Model

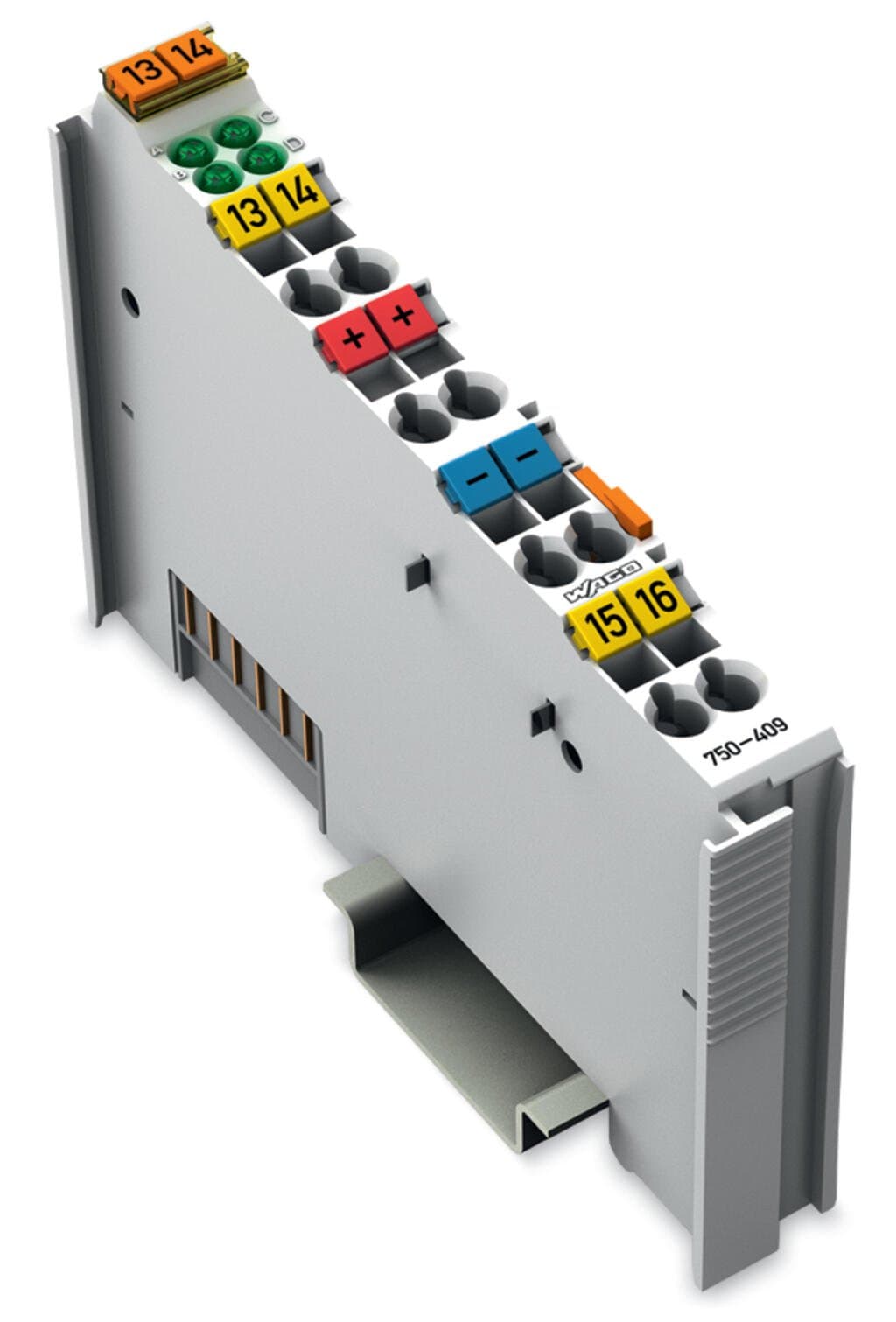

750-409
Selling Points
- 14-Channel Digital Input: Process four digital signals simultaneously with this versatile module.
- 2Low-Side Switching: Efficiently handle digital inputs with low-side switching technology.
- 30.2 ms Filter: Ensure high signal quality with a 0.2 ms filter for precise data processing.
- 424 VDC Supply Voltage: Operate with a reliable DC supply voltage of 24 VDC.
- 5DIN-35 Rail Mounting: Easily integrate into your system using DIN-35 rail mounting for flexibility and space efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of digital inputs | 4 | Number of Channels | 4 |
Signal type | Digital | Signal type (voltage) | 24 VDC |
Sensor connection | 2 x (2-wire, 3-wire); A suitable field side connection module (e.g., 750-614) must also be used to connect other sensors. | Input characteristic | low-side switching |
Input filter (digital) | 0.2ms | Input current per channel for signal (0) typ. | 7mA |
Voltage range for signal (0) | (UV- 5 V) … UVDC | Voltage range for signal (1) | ?3 VDC … (UV- 15 V) |
Input data width (internal) max. | 4bits | Supply voltage (system) | 5 VDC; via data contacts |
Current consumption (5 V system supply) | 5mA | Supply voltage (field) | 24 VDC (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
Isolation | 500 V system/field | Indicators | LED (A-D) green: Status DI 1 … DI 4 |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 10A | Connection technology: inputs / outputs | 8 x CAGE CLAMP?(inputs) |
Connection type 1 | Input | Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Width | 12 mm / 0.472 inches | Height | 100 mm / 3.937 inches |
Depth | 69.8 mm / 2.748 inches | Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mounting type | DIN-35 rail | Pluggable connector | fixed |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 1.417MJ | Weight | 46.2g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000 m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2 | EMC emission of interference | per EN 61000-6-4 |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-04 | eCl@ss 9.0 | 27-24-26-04 |
ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | Box | Country of origin | DE |
Customs tariff number | 85389099990 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 13808a23-c9b9-4d10-9659-648aefa2d78a |
SCIP notification number (Belgium) | 34c3531b-941d-40ae-8e9b-afdea2c192aa | SCIP notification number (Bulgaria) | d5f4278f-63d7-4fd8-afe7-124804b21df1 |
SCIP notification number (Czech Republic) | 3ebdd006-4b5a-42c8-a088-0babb2aefbfb | SCIP notification number (Denmark) | 8db96fd7-5ab5-460f-8e61-fde1e56b0cd4 |
SCIP notification number (Finland) | 73d23eb6-3488-42c1-a900-fb20e0bbc341 | SCIP notification number (France) | 7d93b4ad-4466-4048-8528-87cca91bce5e |
SCIP notification number (Germany) | ea5f365d-ed45-4fee-a578-695abe64c2c7 | SCIP notification number (Hungary) | dd998ba5-8b12-46c1-aee3-8d3aadf51960 |
SCIP notification number (Italy) | fb81b098-cd07-4ed5-8968-8787c5be7c3c | SCIP notification number (Netherlands) | d5c3c820-4398-4cfb-bffe-fa9af3c17c41 |
SCIP notification number (Poland) | fe5a2b1d-6e0a-4651-ae85-bc4b1471a6b9 | SCIP notification number (Romania) | 83b1ab9f-5fb3-414a-a521-45f0de8867d0 |
SCIP notification number (Sweden) | a1b039f7-08b0-4da7-b02e-d55a79732c03 |
Specifications may be subject to change without notice
