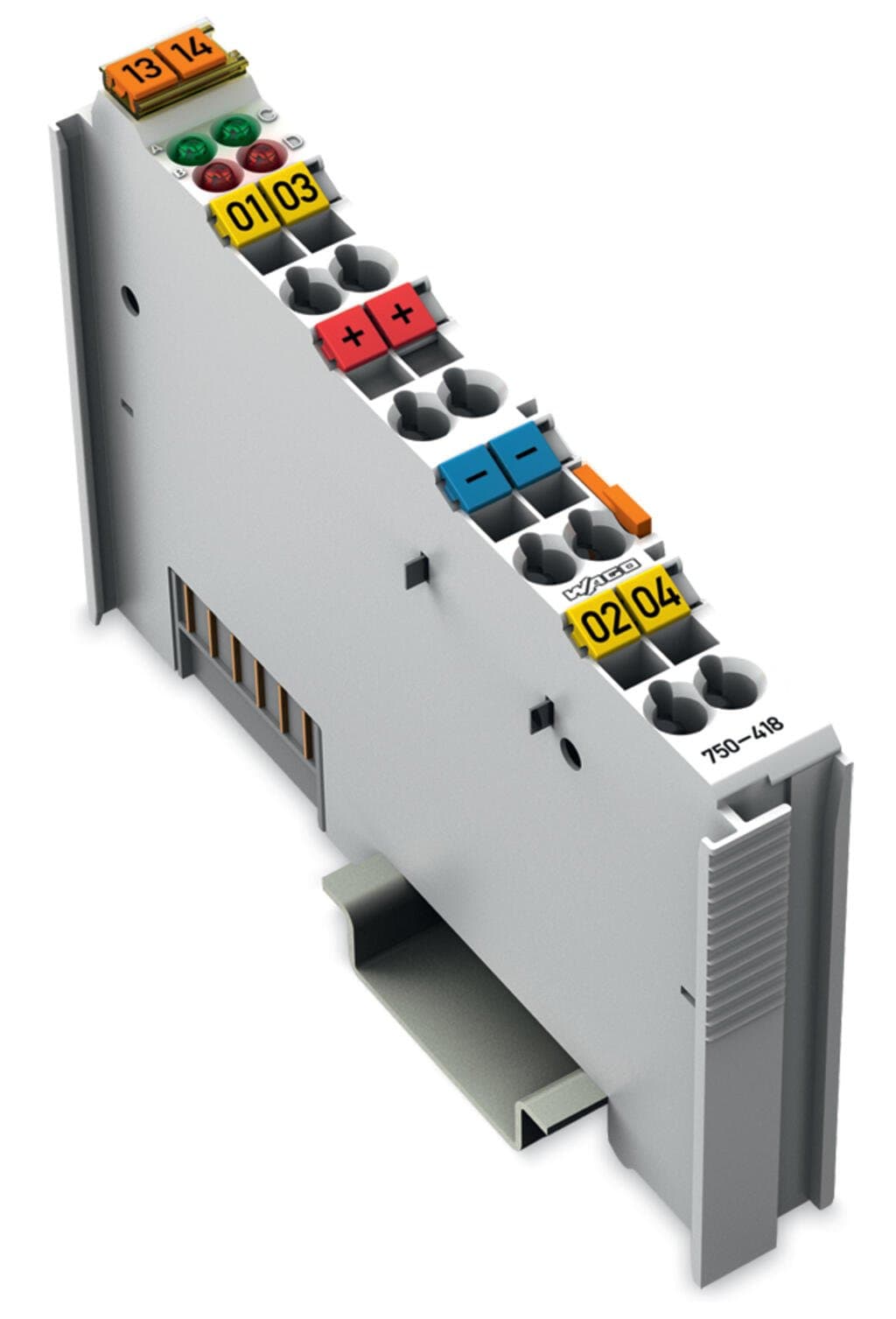

Product Model
750-418
Selling Points
- 1High-Side Switching: Supports high-side switching for reliable digital input.
- 2Diagnostics and Acknowledgement: Includes diagnostics and active acknowledgement capabilities for enhanced system monitoring.
- 3DIN-35 Rail Mounting: Designed for easy mounting on DIN-35 rails, ensuring compact and efficient installation.
- 4IP20 Protection: Offers IP20 protection, suitable for various industrial environments.
- 5Wide Operating Temperature Range: Operates within a wide temperature range of 0°C to +55°C, ensuring stability in diverse conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of digital inputs | 2 | Number of Channels | 2 |
Signal type | Digital | Signal type (voltage) | 24 VDC |
Sensor connection | 2 x (2-wire, 3-wire) | Input characteristic | high-side switching |
Input filter (digital) | 3ms | Input current per channel for signal (1) typ. | 3.7mA |
Voltage range for signal (0) | ?3 … +5 VDC | Voltage range for signal (1) | 15 … 30 VDC |
Output current per channel | 0.5A | Short-circuit current | 1.5 A, pulsating due to thermal overload protection |
Diagnostics | Short circuit, active acknowledgment after error rectified | Input data width (internal) max. | 4bits |
Output data width (internal) max. | 4bits | Supply voltage (system) | 5 VDC; via data contacts |
Current consumption (5 V system supply) | 12mA | Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
Isolation | 500 V system/field | Indicators | LED (A, C) green: Status DI 1, DI 2; LED (B, D) red: Error DI 1, DI 2 |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 10A | Connection technology: inputs / outputs | 8 x CAGE CLAMP?(inputs) |
Connection type 1 | Input | Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Width | 12 mm / 0.472 inches | Height | 100 mm / 3.937 inches |
Depth | 69.8 mm / 2.748 inches | Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mounting type | DIN-35 rail | Pluggable connector | fixed |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 1.014MJ | Weight | 49.5g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000 m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-4, marine applications |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-04 | eCl@ss 9.0 | 27-24-26-04 |
ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | Box | Country of origin | DE |
Customs tariff number | 85389099990 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | e065cd00-4971-4c94-aafa-b06cc00284c9 |
SCIP notification number (Belgium) | 6803c970-5dc2-406a-8da5-e7ca2335b488 | SCIP notification number (Bulgaria) | b892e43e-8b33-406d-ba19-e3b44c40f010 |
SCIP notification number (Czech Republic) | a760a3ab-b680-4a6f-b897-9409adbe7798 | SCIP notification number (Denmark) | 92ba1b52-f439-4895-9ca2-68be36b73149 |
SCIP notification number (Finland) | 3048ece4-6151-46ce-be11-3c5886580b4f | SCIP notification number (France) | cd5ddd81-863a-4c3c-9207-4fa14a21e93c |
SCIP notification number (Germany) | 69eab370-996c-4afd-b6ba-b4faf00b42aa | SCIP notification number (Hungary) | d26b11c0-7952-4257-828c-37283a1bcc66 |
SCIP notification number (Italy) | b96753c3-06e2-4cbc-917e-3d60996bc4b2 | SCIP notification number (Netherlands) | c838e7eb-866a-4559-b5ea-a389f88f8ab4 |
SCIP notification number (Poland) | b4797483-d42e-4d4b-a6a9-de1d23bbf31a | SCIP notification number (Romania) | 052aa9f0-409c-4fb6-a575-cd6e42cfe42f |
SCIP notification number (Sweden) | 4b36d371-aed8-420c-be7a-31e07cf107b0 |
Specifications may be subject to change without notice
