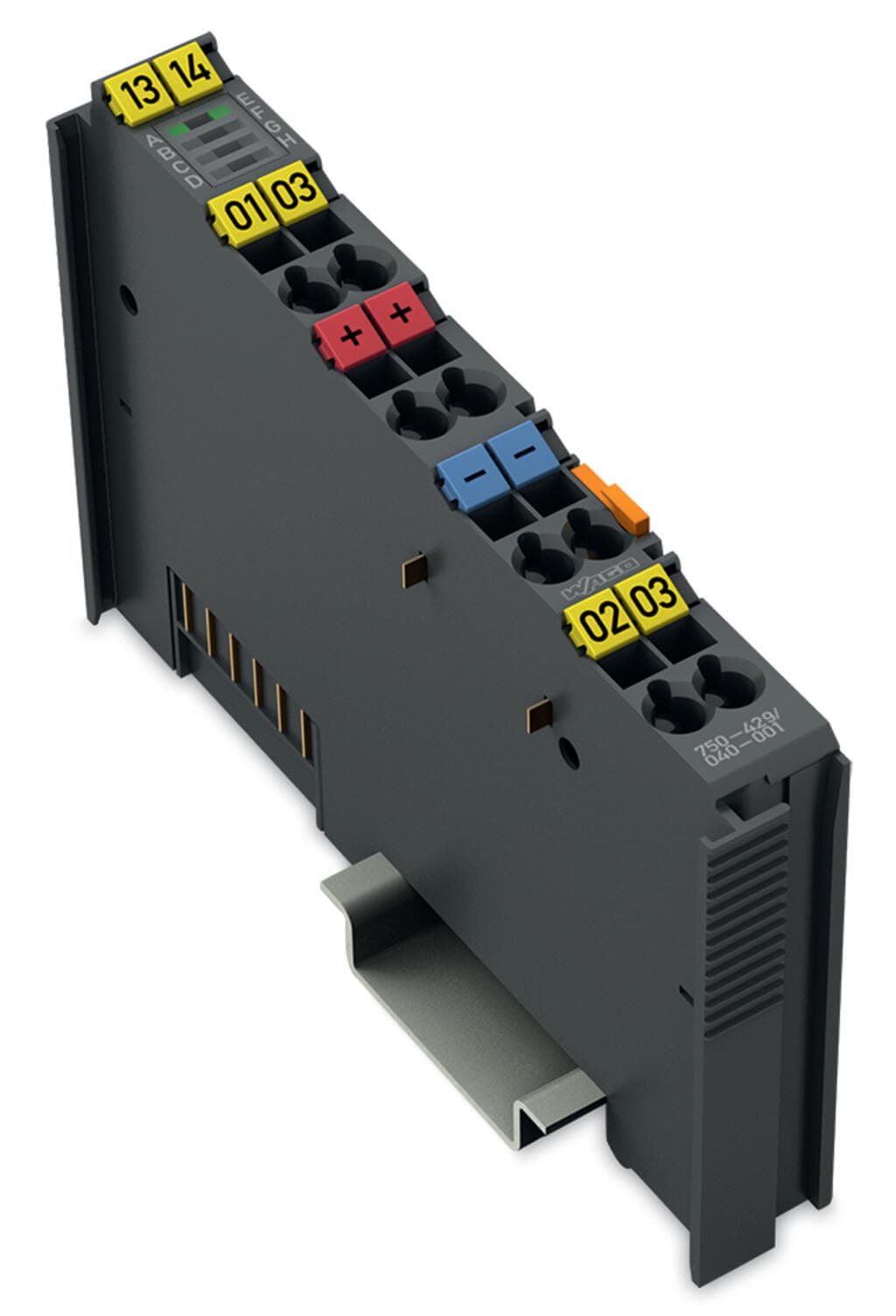

Product Model
750-429/040-001
Selling Points
- 1Operates in ambient temperatures from -40°C to +70°C.
- 2High-side/low-side switching configurable for versatile use.
- 33 ms filter for quick digital input processing.
- 4Polycarbonate and polyamide 6.6 housing for long-lasting performance.
- 5Ensures reliable operation in harsh industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of digital inputs | 2 | Number of Channels | 2 |
Signal type | Digital | Signal type (voltage) | 60 VDC |
Sensor connection | 2 x (2-wire) | Input characteristic | high-side/low-side switching, configurable |
Input filter (digital) | 3ms | Input current per channel for signal (1) typ. | 2.9mA |
Voltage range for signal (0) | ?7.5 … +12 VDC | Voltage range for signal (1) | 44 … 78 VDC |
Input data width (internal) max. | 2bits | Supply voltage (system) | 5 VDC; via data contacts |
Current consumption (5 V system supply) | 2.5mA | Supply voltage (field) | 60 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
Dielectric strength | 2.5 kVAC / 3.5 kVDC; per EN 60870-2-1 | Indicators | LED (A, E) green: Status DI 1, DI 2 |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 10A | Rated surge voltage | 5.0 kV (EN 60870-2-1 / Class VW3); 4.0 kV (UL 508); 4.0 kV (EN 61010-1 to 2000 m); 2.5 kV (EN 61010-1 to 5000 m) |
Overvoltage category | Nominal voltage 110 V: III (EN 61010-1 / up to 2.000 m); II (EN 61010-1 / up to 5.000 m) | Connection technology: inputs / outputs | 8 x CAGE CLAMP?(inputs) |
Connection type 1 | Input | Solid conductor | 0.25 … 2.5 mm2 / 24 … 14 AWG |
Fine-stranded conductor | 0.25 … 2.5 mm2 / 24 … 14 AWG | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Width | 12 mm / 0.472 inches | Height | 100 mm / 3.937 inches |
Depth | 67.8 mm / 2.669 inches | Depth from upper-edge of DIN-rail | 60.6 mm / 2.386 inches |
Mounting type | DIN-35 rail | Color | dark gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 0.958MJ |
Weight | 46.5g | Conformity marking | CE |
Ambient temperature (operation) | -40 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 (EN 61010-1) |
Operating altitude | without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.) | Mounting position | Horizontal left, horizontal up, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Relative humidity (with condensation) | Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation) |
Vibration resistance | per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373 | Shock resistance | per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 50155, EN 61373 |
EMC immunity to interference | per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26;EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994 | EMC emission of interference | per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5 |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | eCl@ss 10.0 | 27-24-26-04 |
eCl@ss 9.0 | 27-24-26-04 | ETIM 9.0 | EC001599 |
ETIM 8.0 | EC001599 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1 pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 8538901000 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 4ffd7e8f-e845-441a-864e-1ffabd965e40 | SCIP notification number (Belgium) | 504a6119-6166-435e-9f88-09be84286c29 |
SCIP notification number (Bulgaria) | 449e9f86-61d9-48aa-a4a6-7bd0dd13d20c | SCIP notification number (Czech Republic) | 11f99de5-d467-49a6-9f3b-ddcb233760e3 |
SCIP notification number (Denmark) | fc7ed17b-001b-4b84-b604-15212bd41684 | SCIP notification number (Finland) | d20b7859-0ba8-4d22-b112-b5a1c2fcf282 |
SCIP notification number (France) | 50da278c-31f8-4f05-8534-f0f4c8042498 | SCIP notification number (Germany) | 035f093c-bf74-495a-823a-036a81edaf14 |
SCIP notification number (Hungary) | cf30eb83-2e3b-40d6-b1f4-51fca2a4db49 | SCIP notification number (Italy) | bc11982b-6fed-4926-af88-9de9d3646350 |
SCIP notification number (Netherlands) | c861fad2-2b91-4770-aacf-11cdbd92f53e | SCIP notification number (Poland) | 6238410d-fad3-4ad1-85b3-2e5abf916f52 |
SCIP notification number (Romania) | f7da5c57-c444-4535-98e8-7cedb8b97286 | SCIP notification number (Sweden) | 0d603c04-2590-4709-b673-15c3599c32aa |
Specifications may be subject to change without notice
