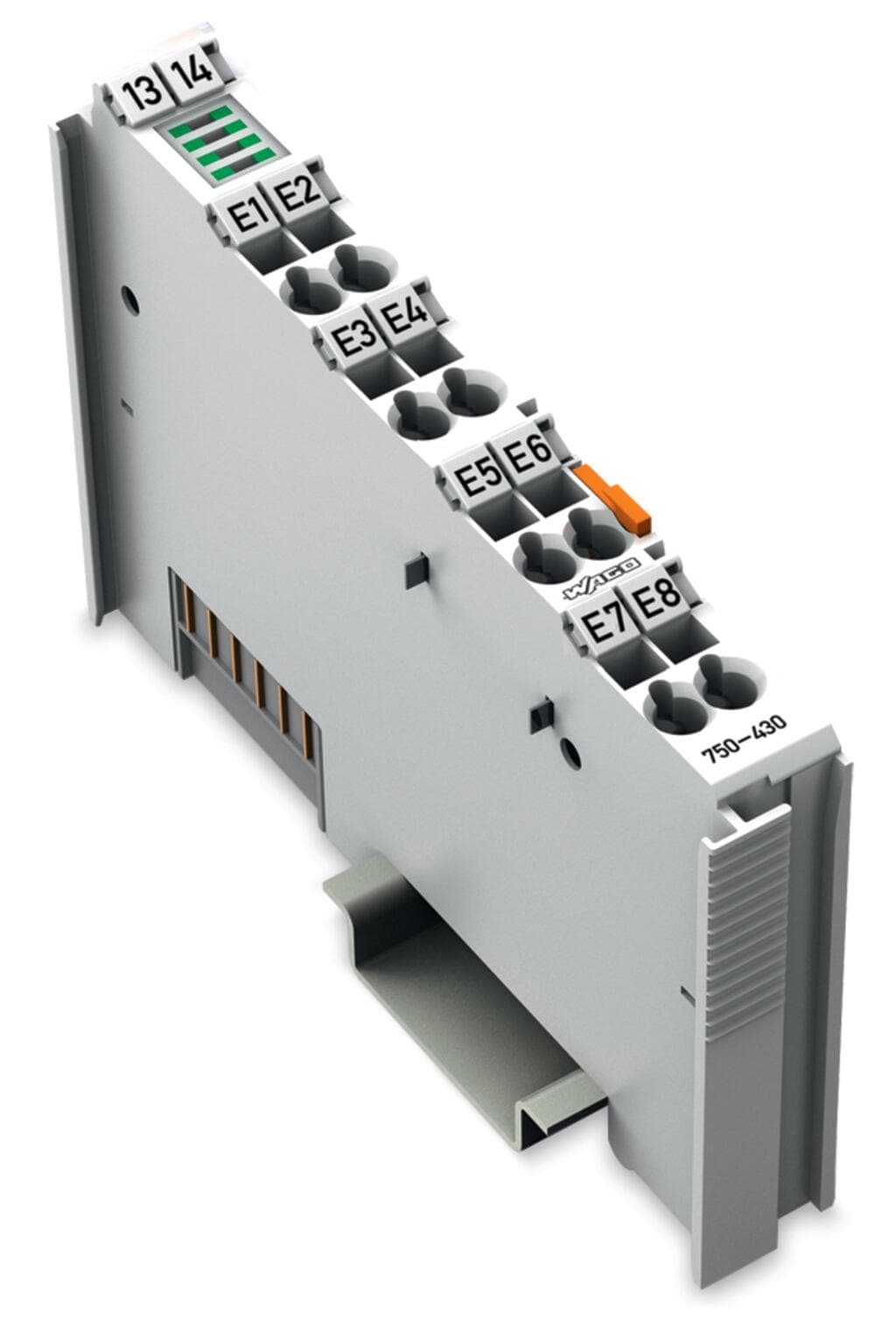

Product Model
750-430
Selling Points
- 18-Channel Digital Input: Receive control signals from up to eight digital field devices.
- 2High-Side Switching: Simplify your setup with high-side switching for easy signal status indication.
- 324 VDC Operation: Operate reliably at 24 VDC, ensuring consistent performance in industrial environments.
- 43 ms Input Filter: Minimize noise with a 3 ms noise-rejection RC filter for accurate signal processing.
- 5DIN-35 Rail Mounting: Easily integrate into your existing control systems using DIN-35 rail mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of digital inputs | 8 | Number of Channels | 8 |
Signal type | Digital | Signal type (voltage) | 24 VDC |
Sensor connection | 8 x (1-wire) | Input characteristic | high-side switching |
Input filter (digital) | 3ms | Input current per channel for signal (1) typ. | 2.8mA |
Voltage range for signal (0) | ?3 … +5 VDC | Voltage range for signal (1) | 15 … 30 VDC |
Input data width (internal) max. | 8bits | Supply voltage (system) | 5 VDC; via data contacts |
Current consumption (5 V system supply) | 17mA | Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
Isolation | 500 V system/field | Indicators | LED (A-D) green: Status DI 1, DI 3, DI 5, DI 7; LED (E-H) green: Status DI 2, DI 4, DI 6, DI 8 |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 10A | Connection technology: inputs / outputs | 8 x CAGE CLAMP?(inputs) |
Connection type 1 | Input | Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Width | 12 mm / 0.472 inches | Height | 100 mm / 3.937 inches |
Depth | 67.8 mm / 2.669 inches | Depth from upper-edge of DIN-rail | 60.6 mm / 2.386 inches |
Mounting type | DIN-35 rail | Pluggable connector | fixed |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 1.187MJ | Weight | 47g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000 m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-4, marine applications |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-04 | eCl@ss 9.0 | 27-24-26-04 |
ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | Box | Country of origin | DE |
Customs tariff number | 85389099990 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 00d5cb10-9577-49ff-9f8c-4737e239998b |
SCIP notification number (Belgium) | 00c774e8-6079-49e1-aade-246673171b4f | SCIP notification number (Bulgaria) | 79a6e9de-ef3a-472b-9185-74221c6a00f6 |
SCIP notification number (Czech Republic) | 640a6064-7f7e-4223-903a-d2783a1df3f5 | SCIP notification number (Denmark) | e82562a7-6aab-4e96-96b2-57918bb6ff18 |
SCIP notification number (Finland) | 7c9760d0-5d72-4c7d-b58e-f5c123ae6a63 | SCIP notification number (France) | 3d5594d8-7027-40a7-9627-3b7612be3b86 |
SCIP notification number (Germany) | 7d985e60-c571-4c7b-ba0f-c7e9d97c86c5 | SCIP notification number (Hungary) | ac027e0e-3493-4a05-8337-2b44a60acf93 |
SCIP notification number (Italy) | 64e6a585-7b76-4924-a05c-aef46547e320 | SCIP notification number (Netherlands) | a28ffd06-b67b-4ae9-a7f2-2bc8a81daa8e |
SCIP notification number (Poland) | d4241cd3-4511-4f20-9c87-e399f47b0f4d | SCIP notification number (Romania) | 42c979a3-cc4a-494a-8732-d697be83ad36 |
SCIP notification number (Sweden) | 58683497-9961-47e3-8bdd-95e2e0fb6ada |
Specifications may be subject to change without notice
