Product Model

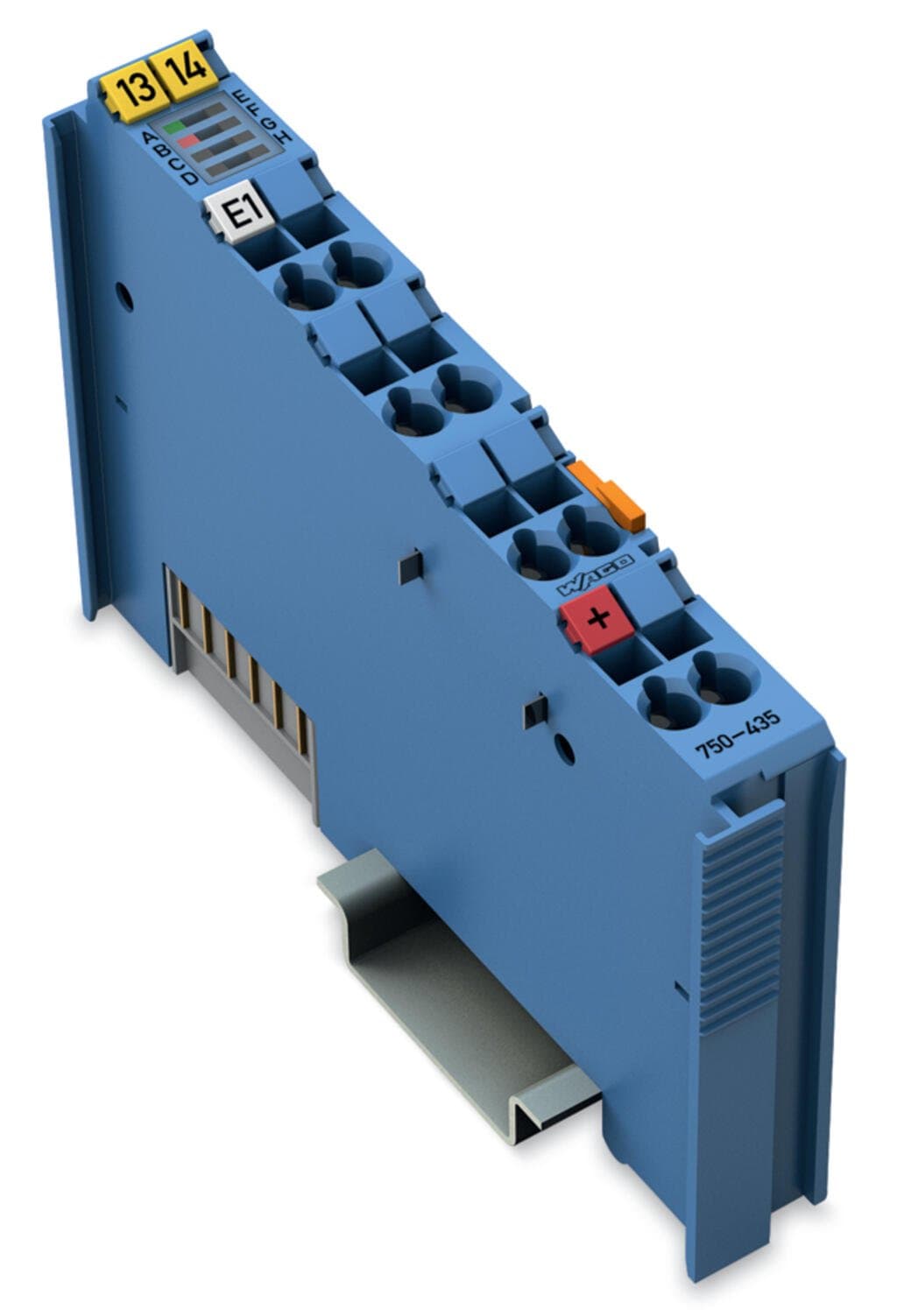

750-435
Selling Points
- 1High accuracy of 0.75%
- 21 Channel digital input module
- 3Compatible with WAGO-I/O-SYSTEM 750
- 4Easy installation with tool-free mounting
- 5Reliable operation in a wide temperature range (0°C to 55°C)
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The digital input module must only be operated with a 24 VDC Ex i power supply!General information (e.g., installation regulations) on explosion protection is available in the WAGO I/O System 750 manuals! | Number of digital inputs | 1 |
Number of Channels | 1 | Signal type | NAMUR |
Sensor connection | 1 x (2-wire) | Input characteristic | High-side switching |
Input filter (digital) | 3ms | Protection against incorrect wiring | Short circuit monitoring: > 6.4 mA |
Open-circuit voltage | 8.2V | Short-circuit current | ≤ 8.2?mA |
Signal current (0) NAMUR | ≤1.2mA | Signal current (1) NAMUR | ≥2.1mA |
Switching hysteresis | 0.2mA | Diagnostics | Short circuit, wire break |
Input pulse length | ≥5ms | Input pulse separation | ≥3ms |
Power consumption P<sub>max.</sub> | 0.5 W | Input data width (internal) max. | 2bits |
Data width | 2-bit input: 1-bit status, 1-bit error (short circuit/wire break) | Intrinsically safe Ex i | Yes |
Input resistance | 1,000Ω | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 2.5mA | Supply voltage (field) | 24 VDC; (Ex i power supply: Uo= max. 26.8 V); via power jumper contacts (power supply via blade contact; transmission via spring contact) |
Current consumption, field supply (module with no external load) | 13mA | Power loss P<sub>l</sub> | 0.37 W |
Isolation | 300?VAC system/supply | Indicators | LED (A) green: Status DI; LED (B) red: Error DI |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 1A | Identification | ATEXII 3 (1) G Ex ec [ia Ga] IIC T4 GcII (1) D [Ex ia Da] IIICI (M1) [Ex ia Ma] I |
Ex standard | EN IEC 60079-0, -7, -11 | Safety-relevant data (circuit) | Uo= 12 V; Io= 16 mA; Po= 48 mW; Linear characteristic curve |
Reactances?Ex ia IIC | Lo= 180 mH; Co= 1.4 μF | Reactances Ex ia IIB | Lo= 560 mH; Co= 9 μF |
Reactances Ex ia IIA | Lo= 900 mH; Co= 36 μF | Reactances Ex ia I | Lo= 1 H; Co= 38 μF |
Reactances (note) | Reactances without accounting for the concurrence of capacitance (Co) and inductance (Lo) | Connection technology: inputs / outputs | 2 x CAGE CLAMP? |
Connection type 1 | Inputs/outputs | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 67.8?mm?/ 2.669?inches | Depth from upper-edge of DIN-rail | 60.6?mm?/ 2.386?inches |
Mounting type | DIN-35 rail | Color | blue |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 0.976MJ |
Weight | 46g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -25 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-3, marine applications | Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | ETIM 9.0 | EC001599 |
ETIM 8.0 | EC001599 | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454725532 | Customs tariff number | 8538901000 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 2a239591-bd21-4dcf-ad44-aa133fd632ec | SCIP notification number (Belgium) | caed6a3c-d43e-48a9-8c5b-cbdd36302921 |
SCIP notification number (Bulgaria) | efce4914-2a6b-4272-914c-49f5bd245c34 | SCIP notification number (Czech Republic) | ba99738d-70c7-40ef-a58d-5ce1b6c44c12 |
SCIP notification number (Denmark) | 242f35ef-1631-48f8-92dc-4bbb4a6f2be9 | SCIP notification number (Finland) | 3289bfe7-27f4-4a4a-bb33-98ffc547d33b |
SCIP notification number (France) | 99c3910d-1f2a-425a-aba7-5a5a668ad948 | SCIP notification number (Germany) | 179a190c-c50a-4435-8bff-002aa1961681 |
SCIP notification number (Hungary) | 1804c544-4aa8-4a60-801e-7e904eb0bca0 | SCIP notification number (Italy) | 3957ac6d-4b92-441e-b521-75e065e484a8 |
SCIP notification number (Netherlands) | 524614ab-47cd-49dd-80bd-65f7ba9204e6 | SCIP notification number (Poland) | f95aa432-fa87-4e68-ac0b-f93183e55beb |
SCIP notification number (Romania) | 54304629-0e14-4aac-a480-9d935947784e | SCIP notification number (Sweden) | 2de901ee-f633-43a5-b3d3-96589416b697 |
Order text | 1-Channel Digital Input; NAMUR | Sensor supply | 8.2 VDC |
ECCN | NO US CLASSIFICATION |
Specifications may be subject to change without notice
