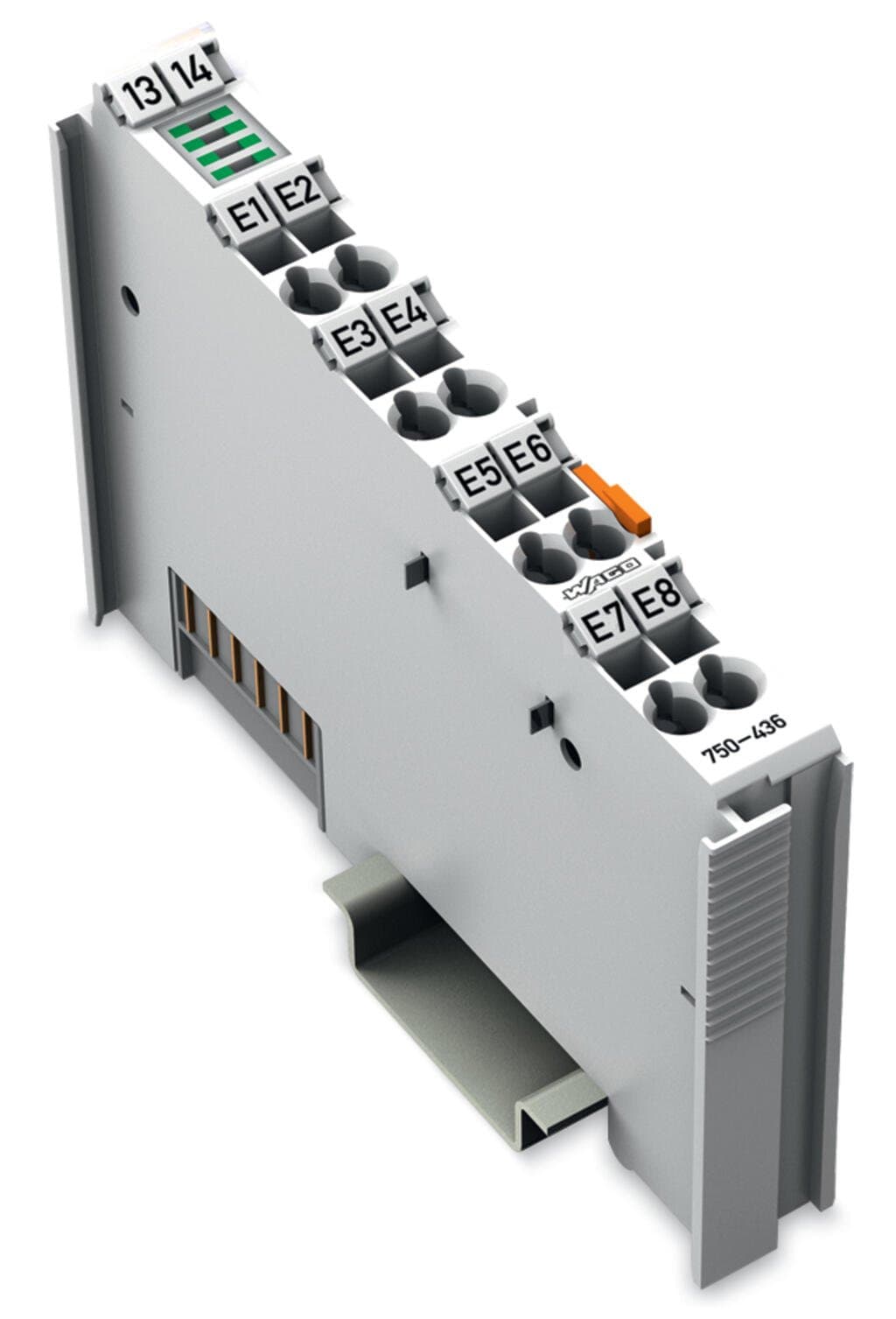

Product Model
750-436
Selling Points
- 18-channel digital input for multiple signal reception.
- 224 VDC power supply with 3 ms low-side switching.
- 3Robust 500 V system/field isolation for safety.
- 4Compact design with a width of just 12 mm.
- 5Vibration resistance up to 4g per IEC 60068-2-6.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of digital inputs | 8 | Number of Channels | 8 |
Signal type | Digital | Signal type (voltage) | 24 VDC |
Sensor connection | 8 x (1-wire) | Input characteristic | low-side switching |
Input filter (digital) | 3ms | Input current per channel for signal (0) typ. | 2.8mA |
Voltage range for signal (0) | 15 … 30 VDC | Voltage range for signal (1) | ?3 … +5 VDC |
Input data width (internal) max. | 8bits | Supply voltage (system) | 5 VDC; via data contacts |
Current consumption (5 V system supply) | 13mA | Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
Isolation | 500 V system/field | Indicators | LED (A-D) green: Status DI 1, DI 3, DI 5, DI 7; LED (E-H) green: Status DI 2, DI 4, DI 6, DI 8 |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 10A | Connection technology: inputs / outputs | 8 x CAGE CLAMP?(inputs) |
Connection type 1 | Input | Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Width | 12 mm / 0.472 inches | Height | 100 mm / 3.937 inches |
Depth | 67.8 mm / 2.669 inches | Depth from upper-edge of DIN-rail | 60.6 mm / 2.386 inches |
Mounting type | DIN-35 rail | Pluggable connector | fixed |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 1.195MJ | Weight | 47.9g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000 m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-3, marine applications |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-04 | eCl@ss 9.0 | 27-24-26-04 |
ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | Box | Country of origin | DE |
Customs tariff number | 85389099990 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 3b0390a1-fdff-45a5-a77b-f3b4c3efa934 |
SCIP notification number (Belgium) | bc898076-d147-4751-9e01-dfc6a8269600 | SCIP notification number (Bulgaria) | 8f023259-bcf7-40d9-aa1f-72cd3bb85fa0 |
SCIP notification number (Czech Republic) | b399e0aa-c702-4796-bc2d-21f4bbae8d60 | SCIP notification number (Denmark) | 9911f7d6-8841-41b7-a086-b73d80854179 |
SCIP notification number (Finland) | 81f1dbb9-81d3-41f3-9d03-d9f56ac6a627 | SCIP notification number (France) | 5db13f4e-29da-4992-a9e8-1f4766d895b7 |
SCIP notification number (Germany) | 27136a8e-47db-4aed-b829-fa8c1329132c | SCIP notification number (Hungary) | 67b75058-7a15-4e50-b12f-5e8a7271ea90 |
SCIP notification number (Italy) | a682c509-03e4-4417-852f-35a9bfbf1c11 | SCIP notification number (Netherlands) | 247f6547-ff3b-47e2-8a95-00a073d09f08 |
SCIP notification number (Poland) | 5b888487-8e34-4db2-a5ab-88349ec0daef | SCIP notification number (Romania) | ca905d91-89f0-4960-b5df-24731ebad890 |
SCIP notification number (Sweden) | f10a9ee3-c48e-4d8a-8905-2b4aa1dc90d2 |
Specifications may be subject to change without notice
