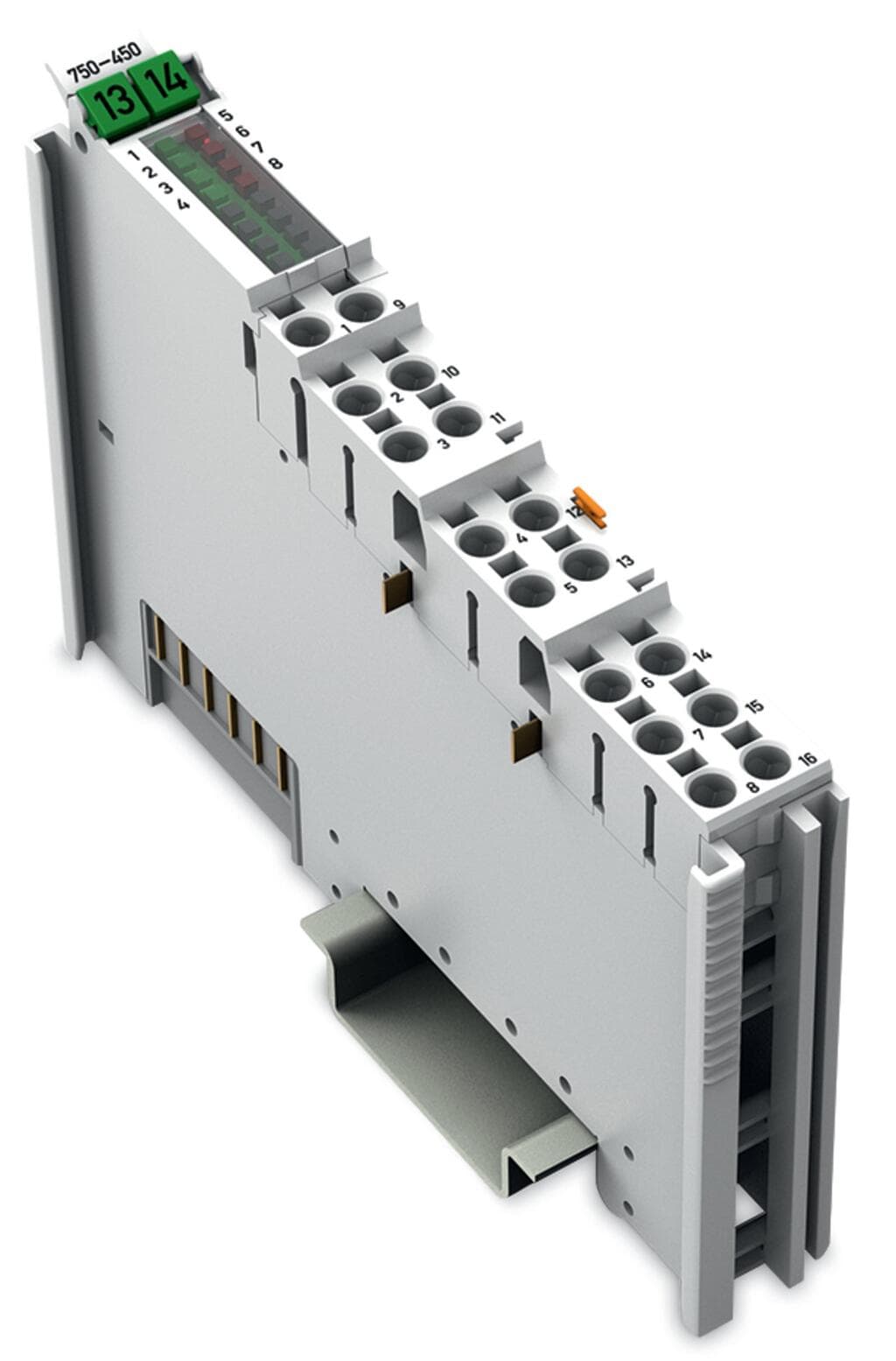

Product Model
750-450
Selling Points
- 1Supports Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, and potentiometers with 0.1°C resolution.
- 2Designed for easy installation on 35mm DIN rails.
- 3Ensures reliable operation in harsh industrial environments.
- 4100ms conversion time per channel for real-time data processing.
- 5Supports 2-wire, 3-wire, and 4-wire connections with Push-in spring CAGE CLAMP connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of analog inputs | 4 | Number of Channels | 4 |
Signal type | Resistance measurement | Signal type (configurable) | yes |
Sensor connection | 4 x (2-wire,?3-wire,?4-wire) | Data width | 4 x 16-bit data; 4 x 8-bit control/status (optional) |
Resolution (over entire range) | 0.1 °C (over the entire range); 0.01 °C (–50 … 150 °C; Pt1000, Ni1000) | Conversion time (typ. ≤) | 100ms |
Conversion time | Per channel: ≤ 100 ms (2-/4-wire connection), ≤ 200 ms (3-wire connection) | Measurement error (25 °C) | ≤?±0.6?K (Pt100, Pt200, Pt500, Ni100, Ni120); ≤?±0.2?K (Pt1000, Ni1000); ?±0.3 … 0.7?Ω for resistance measurement |
Measuring current (typ.) | ≤ 350?μA | Response time (max.) | 3s |
Sensor types | Pt100; Configurable: Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000 (TK6180 + TK5000), Potentiometer: 10R … 1k2, 10R … 5k0 | Temperature range | ?200 … +850?°C (Pt100, Pt200, Pt500, Pt1000), ?60 … +250?°C (Ni100, Ni1000), ?80 … +260?°C (Ni120) |
Configuration options | WAGO-I/O-CHECK | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 85mA | Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
Isolation | 500?V system/field | Indicators | LED (1-4) green: Status R1 … R4; LED (5-8) red: Error R1 … R4 |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Connection technology: inputs / outputs | 16 x Push-in CAGE CLAMP? | Connection type 1 | Inputs/Outputs |
Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Fine-stranded conductor | 0.25 … 1.5?mm2?/ 22 … 16?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 12?mm?/ 0.472?inches |
Height | 100?mm?/ 3.937?inches | Depth | 69?mm?/ 2.717?inches |
Depth from upper-edge of DIN-rail | 61.8?mm?/ 2.433?inches | Mounting type | DIN-35 rail |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 0.837MJ |
Weight | 49g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-1; EN 61000-6-2 |
EMC emission of interference | per EN 61000-6-3 | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-01 |
eCl@ss 9.0 | 27-24-26-01 | ETIM 9.0 | EC001596 |
ETIM 8.0 | EC001596 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332448635 |
Customs tariff number | 8538901000 | CAS-No. | 12626-81-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 263b784d-ab14-49e7-b3c5-71e6c6f19d29 |
SCIP notification number (Belgium) | 0aae1cb1-b683-4ff8-ac9c-e86f794a8640 | SCIP notification number (Bulgaria) | 733a44b7-56a8-49fd-bcec-bda15ebb82e1 |
SCIP notification number (Czech Republic) | 45cc6e52-17dd-445e-9d10-ac1b45d7c429 | SCIP notification number (Denmark) | 1c267569-8c37-4d4b-a2a2-9dac56f83e3a |
SCIP notification number (Finland) | 11c70648-790d-40fa-b6d8-676ae47859eb | SCIP notification number (France) | 79d8796b-8aa2-41c3-aadb-bfe311821ce2 |
SCIP notification number (Germany) | bd372b4d-2dc4-410d-bc11-92fcabea77da | SCIP notification number (Hungary) | fcf16377-3b55-4b40-a3f4-ab1f49599b82 |
SCIP notification number (Italy) | 990a7423-d597-48f0-a9a4-625b84434318 | SCIP notification number (Netherlands) | 65b63553-a692-403a-99d5-4a6b33b34ef7 |
SCIP notification number (Poland) | 53a7c50b-27ad-4dab-8ffa-c7b8a09bf75c | SCIP notification number (Romania) | 4a1fdb2a-6378-4325-b863-41e43995c132 |
SCIP notification number (Sweden) | e957b27a-2d32-45c9-ac71-478ca8844e9e |
Specifications may be subject to change without notice
