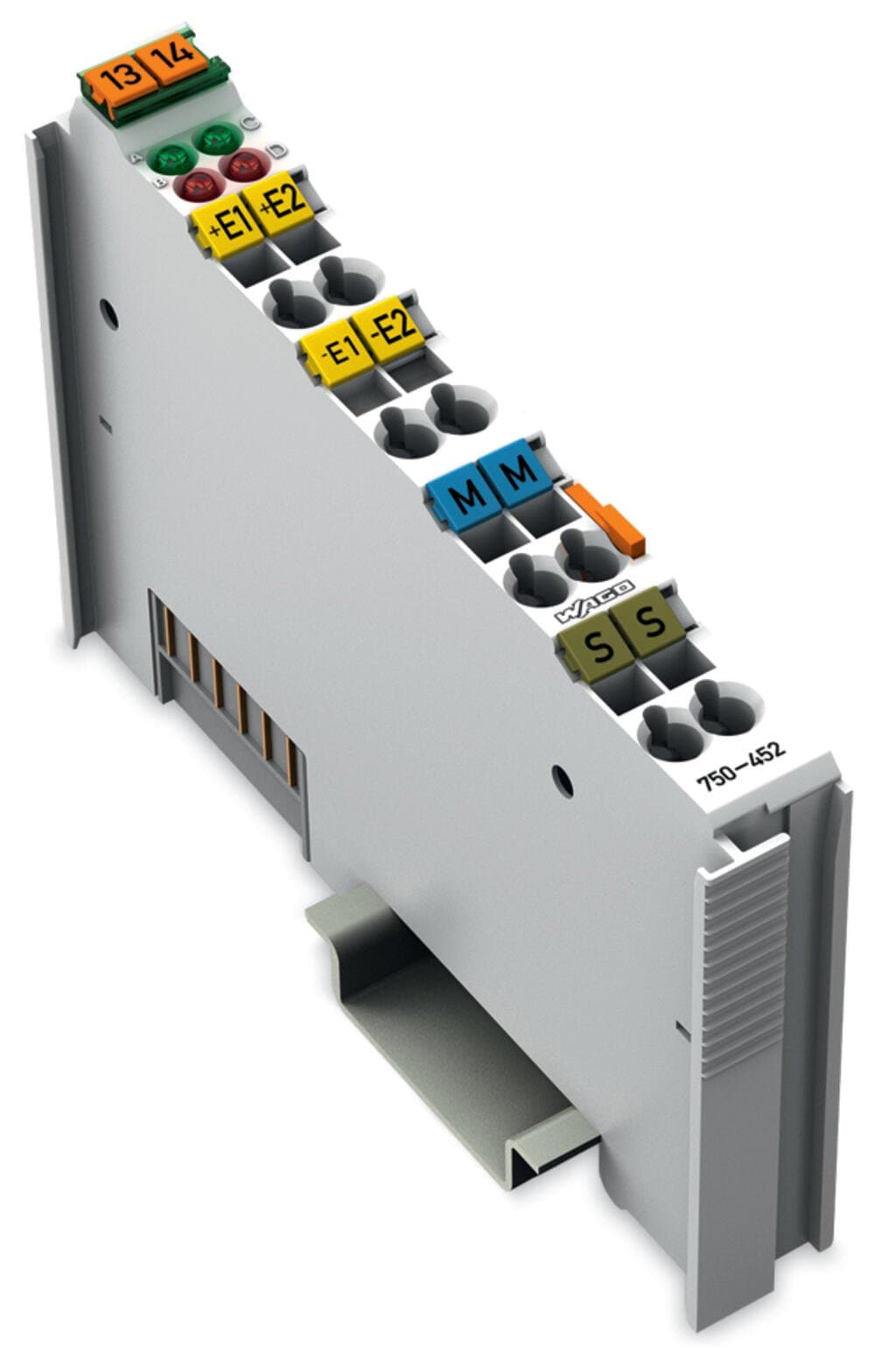

Product Model
750-452
Selling Points
- 1High Precision: 12-bit resolution for accurate signal processing.
- 2Differential Input: Handles 0-20 mA signals with differential input capability.
- 3Easy Installation: Designed for DIN-35 rail mounting with spring CAGE CLAMP connections.
- 4Robust Construction: IP20 protection rating and 500 V system/field isolation for durability.
- 5Versatile Operation: Operates within 0°C to +55°C ambient temperature range.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of analog inputs | 2 | Number of Channels | 2 |
Signal type | Current | Signal type (current) | 0 … 20?mADC |
Sensor connection | 2 x (2-wire) | Input voltage (max.) | 35 V |
Signal characteristics | Differential | Resolution [bit] | 12bits |
Input resistance (max.) | 220Ω | Data width | 2 x 16-bit data; 2 x 8-bit control/status (optional) |
Conversion time (typ. ≤) | 2ms | Measurement error, reference temperature | 25°C |
Measurement error, deviation max (upper-range value) ≤± | 0.2% | Temperature error max. (upper-range value) ≤± | 0.01%/K |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 70mA |
Isolation | 500?V system/field | Indicators | LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2 |
Connection technology: inputs / outputs | 8 x CAGE CLAMP? | Connection type 1 | Inputs/Outputs |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 12?mm?/ 0.472?inches |
Height | 100?mm?/ 3.937?inches | Depth | 69.8?mm?/ 2.748?inches |
Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches | Mounting type | DIN-35 rail |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 1.034MJ | Weight | 50.5g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-4, marine applications |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-01 | eCl@ss 9.0 | 27-24-26-01 |
ETIM 9.0 | EC001596 | ETIM 8.0 | EC001596 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454484040 | Customs tariff number | 8538901000 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 38a2f1ef-9ec2-4daf-b02e-91755adb4e8d | SCIP notification number (Belgium) | 058e53dd-4437-4f03-859a-0daaefd854e4 |
SCIP notification number (Bulgaria) | 8470dda5-44ec-4c1b-9fc6-7990ad84ab5d | SCIP notification number (Czech Republic) | 8bd4aa47-18e9-47a9-b933-be751913c487 |
SCIP notification number (Denmark) | 7cda3a0d-8c27-445d-ba99-22ac7eae14cf | SCIP notification number (Finland) | f9e6770d-b74e-4564-bed8-2f495ef3b0f3 |
SCIP notification number (France) | a4781fd4-63e1-49b3-87d8-abd2f15b754f | SCIP notification number (Germany) | 2182760a-045e-42a1-a1cf-78159d0693ef |
SCIP notification number (Hungary) | 4f74fab9-e60e-434a-9931-357ecba638ce | SCIP notification number (Italy) | 012f7c41-2dfc-4905-81f7-f350c756af46 |
SCIP notification number (Netherlands) | 0ca44209-8c40-4800-aafe-9205ba080577 | SCIP notification number (Poland) | e19b3ac3-1240-40e8-894f-9abee1610175 |
SCIP notification number (Romania) | 9590fc57-71b2-469b-be67-8e8c21ee7dd0 | SCIP notification number (Sweden) | 35a70de4-a80d-49a1-a82f-58e8fb53486c |
Specifications may be subject to change without notice
