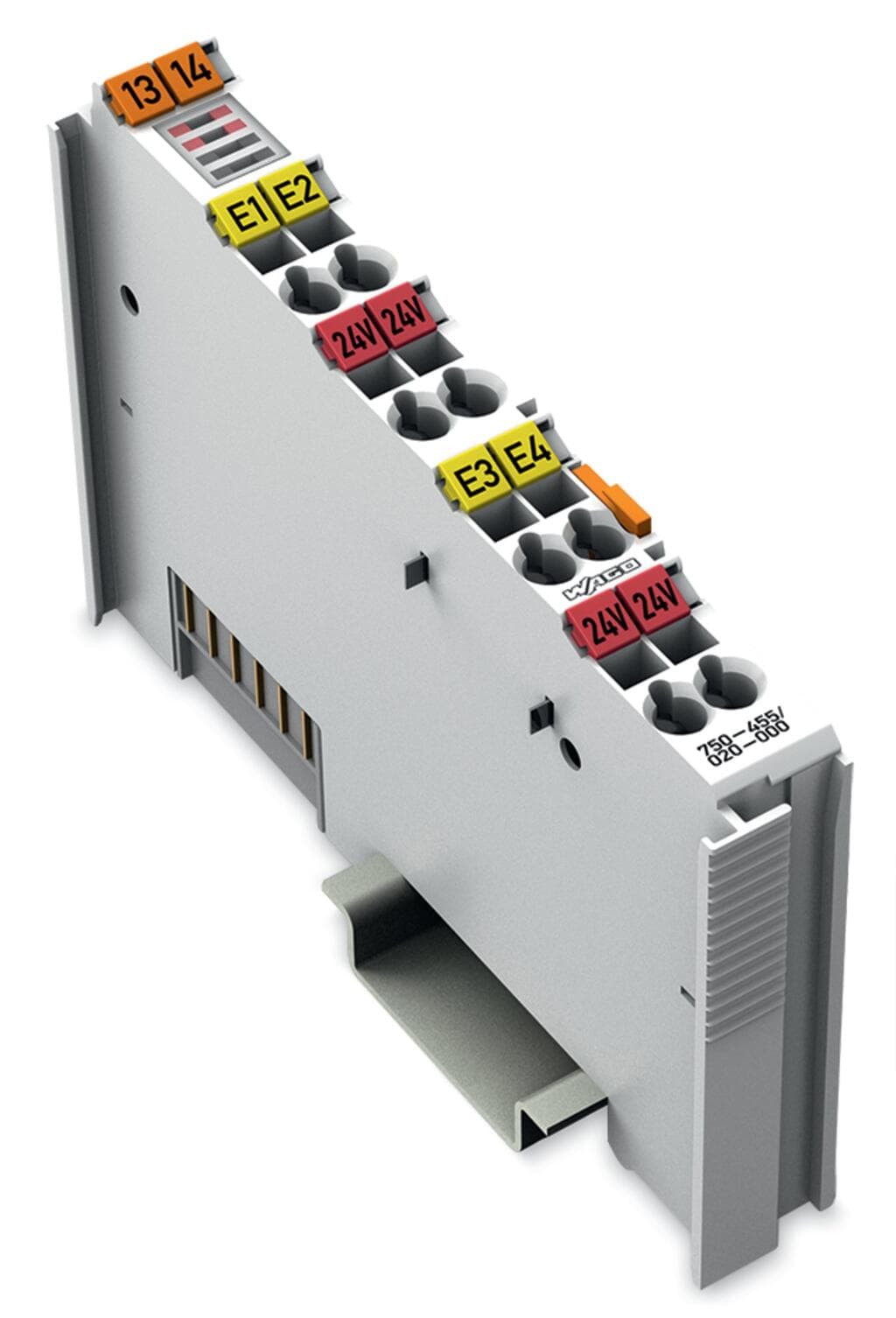

Product Model
750-455/020-000
Selling Points
- 14-channel analog input for diverse applications.
- 24-20 mA and single-ended signal characteristics.
- 3Compatible with DIN-35 rail mounting.
- 4High resolution of 12 bits for precise measurements.
- 5Robust IP20 protection and marine-grade compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of analog inputs | 4 | Number of Channels | 4 |
Signal type | Current | Signal type (current) | 4 … 20?mADC |
Sensor connection | 4 x (2-wire) | Input voltage (max.) | 32?V |
Signal characteristics | Single-ended | Resolution [bit] | 12bits |
Input resistance (max.) | 100Ω | Data width | 4 x 16-bit data; 4 x 8-bit control/status (optional) |
Conversion time (typ. ≤) | 10ms | Measurement error, reference temperature | 25°C |
Measurement error, deviation max (upper-range value) ≤± | 0.1% | Temperature error max. (upper-range value) ≤± | 0.01%/K |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 65mA |
Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Isolation | 500?V system/field |
Indicators | LED (A-D) red: Error AI 1 … AI 4 | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Connection technology: inputs / outputs | 8 x CAGE CLAMP? |
Connection type 1 | Inputs/Outputs | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 67.8?mm?/ 2.669?inches | Depth from upper-edge of DIN-rail | 60.6?mm?/ 2.386?inches |
Mounting type | DIN-35 rail | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 0.967MJ | Weight | 50g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-4, marine applications |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | eCl@ss 10.0 | 27-24-26-01 |
eCl@ss 9.0 | 27-24-26-01 | ETIM 9.0 | EC001596 |
ETIM 8.0 | EC001596 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143234665 |
Customs tariff number | 8538901000 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 8763048f-a4ff-426e-81b2-00c5f7cc86f1 |
SCIP notification number (Belgium) | 7084a166-f212-48d2-ad99-76677d580622 | SCIP notification number (Bulgaria) | c202da74-c9a0-4441-af7a-6936ca372a4f |
SCIP notification number (Czech Republic) | 5f5f8e77-d5a1-4090-b5b4-4e51077b5980 | SCIP notification number (Denmark) | 08241b48-5182-45f4-ae1e-d1afdb7e4074 |
SCIP notification number (Finland) | 308f76aa-071e-4784-ad6f-3bc0e5a1c550 | SCIP notification number (France) | f79fa431-30ea-4445-a1d1-1d8b9e39298e |
SCIP notification number (Germany) | 2521c478-6d30-4ae9-a872-5dcf6f0e1d38 | SCIP notification number (Hungary) | 5a6734db-290e-4c39-95a6-41e6a0e50be8 |
SCIP notification number (Italy) | eadbeaad-6922-4513-8a31-fb291a2eeefa | SCIP notification number (Netherlands) | f0c0e1cb-c372-4525-9856-f1140a09a5fb |
SCIP notification number (Poland) | dc63edb2-95c5-4c34-8aa5-b2566392fee3 | SCIP notification number (Romania) | d1a76fdb-7a3d-4ceb-b993-0c0f77100e4d |
SCIP notification number (Sweden) | c573a1fa-0371-4a68-b00b-60272e8c5b82 |
Specifications may be subject to change without notice
