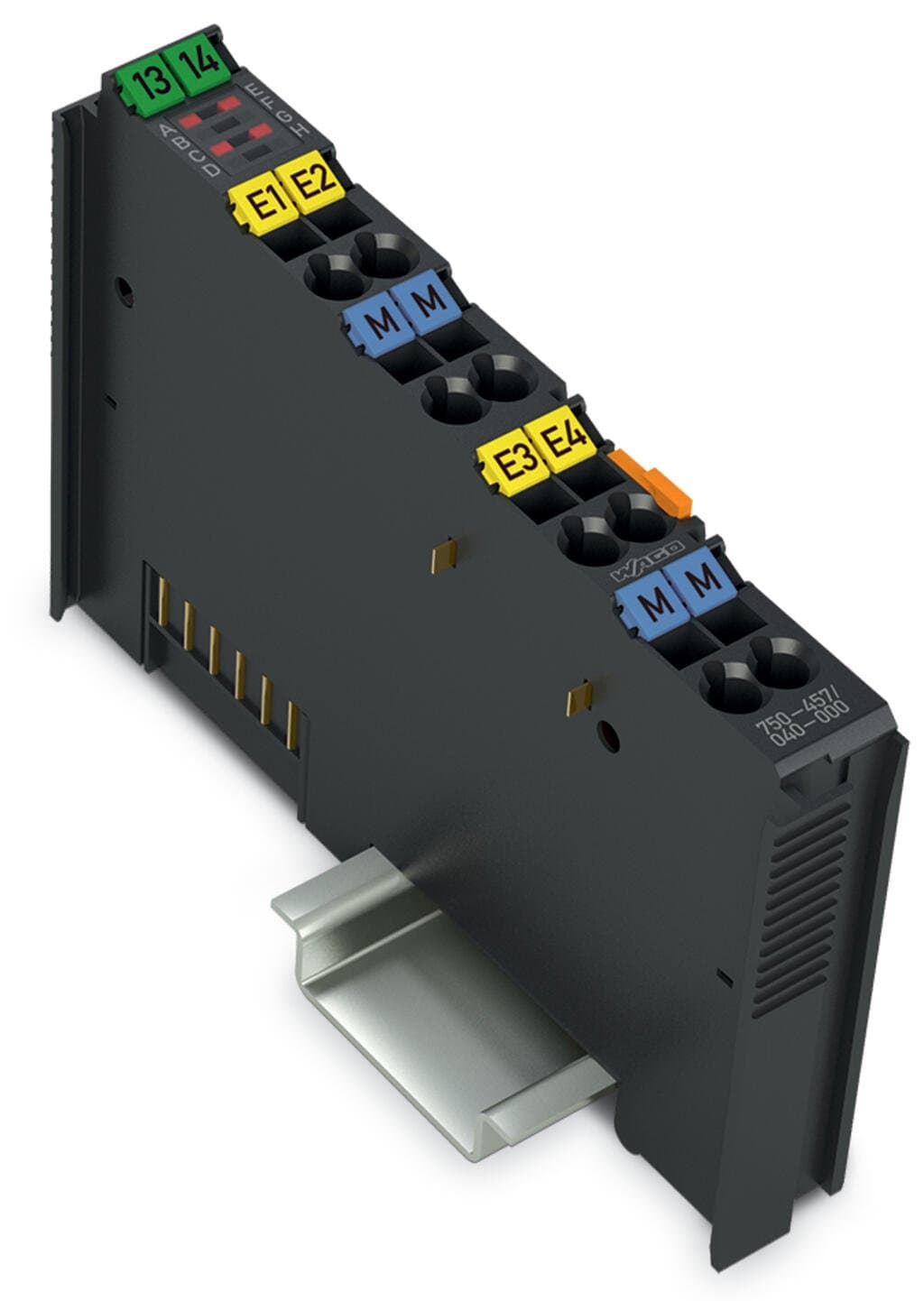

Product Model
750-457/040-000
Selling Points
- 1High Immunity to Impulse Voltages and Electromagnetic Interference: Ensures reliable operation in harsh environments.
- 2Extended Temperature Range: Operates from -40°C to +70°C, making it suitable for various industrial applications.
- 34-Channel Analog Input: Provides four single-ended analog inputs with ±10 VDC range and 12-bit resolution.
- 4Secure Spring CAGE CLAMP Connections: Facilitates easy and secure wiring for reliable data transmission.
- 5DIN Rail Mounting: Compact design fits seamlessly on DIN-35 rail, enhancing flexibility in system integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of analog inputs | 4 | Number of Channels | 4 |
Signal type | Voltage | Signal type (voltage) | -10 … +10?VDC |
Sensor connection | 4 x (2-wire) | Input voltage (max.) | ±40?V |
Signal characteristics | Single-ended | Resolution [bit] | 12bits |
Data width | 4 x 16-bit data; 4 x 8-bit control/status (optional) | Internal resistance | 100kΩ |
Conversion time (typ. ≤) | 10ms | Measurement error, reference temperature | 25°C |
Measurement error, deviation max (upper-range value) ≤± | 0.1% | Temperature error max. (upper-range value) ≤± | 0.01%/K |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 65mA |
Supply voltage (field) | 24?VDC?(-25 … +30?%);?via power jumper contacts (power supply via blade contact; transmission via spring contact); Derating must be observed! | Dielectric strength | 510 VAC / 775 VDC; per EN 60870-2-1 |
Rated surge voltage | 1?kV | Indicators | LED (A, E, C, G) red: Error AI 1 … AI 4 |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 10A | Derating | Derating (supply voltage):Ambient temperatures under laboratory conditions: (?25 … +30°%);for ?40 … +55°°C: 24°V (?25 … +20°%);for +55 … +70°°C: 24°V (?25 … +10°%);Lower limit in all temperature ranges: ?27.5°% (including 15°% residual ripple) |
Connection technology: inputs / outputs | 8 x CAGE CLAMP? | Connection type 1 | Inputs/outputs |
Solid conductor | 0.25 … 2.5?mm2?/ 24 … 14?AWG | Fine-stranded conductor | 0.25 … 2.5?mm2?/ 24 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 12?mm?/ 0.472?inches |
Height | 100?mm?/ 3.937?inches | Depth | 67.8?mm?/ 2.669?inches |
Depth from upper-edge of DIN-rail | 60.6?mm?/ 2.386?inches | Mounting type | DIN-35 rail |
Color | dark gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 0.958MJ | Weight | 50.5g |
Conformity marking | CE | Ambient temperature (operation) | -40 … +70 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | Without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) |
Mounting position | Horizontal left, horizontal up, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Relative humidity (with condensation) | Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation) | Vibration resistance | Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373 |
Shock resistance | Per IEC 60068-2-27 (15g/11?ms/half-sine/1,000 shocks; 25g/6?ms/1,000 shocks), EN 50155, EN 61373 | EMC immunity to interference | per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26;EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994 |
EMC emission of interference | Per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5 | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-01 |
eCl@ss 9.0 | 27-24-26-01 | ETIM 9.0 | EC001596 |
ETIM 8.0 | EC001596 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821460275 |
Customs tariff number | 8538901000 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Bulgaria) | f2b083d8-e608-47bc-a39a-90bcc0e449a0 |
SCIP notification number (Czech Republic) | 7316bc1f-3d3a-4a76-a4d1-9756b646f97a |
Specifications may be subject to change without notice
