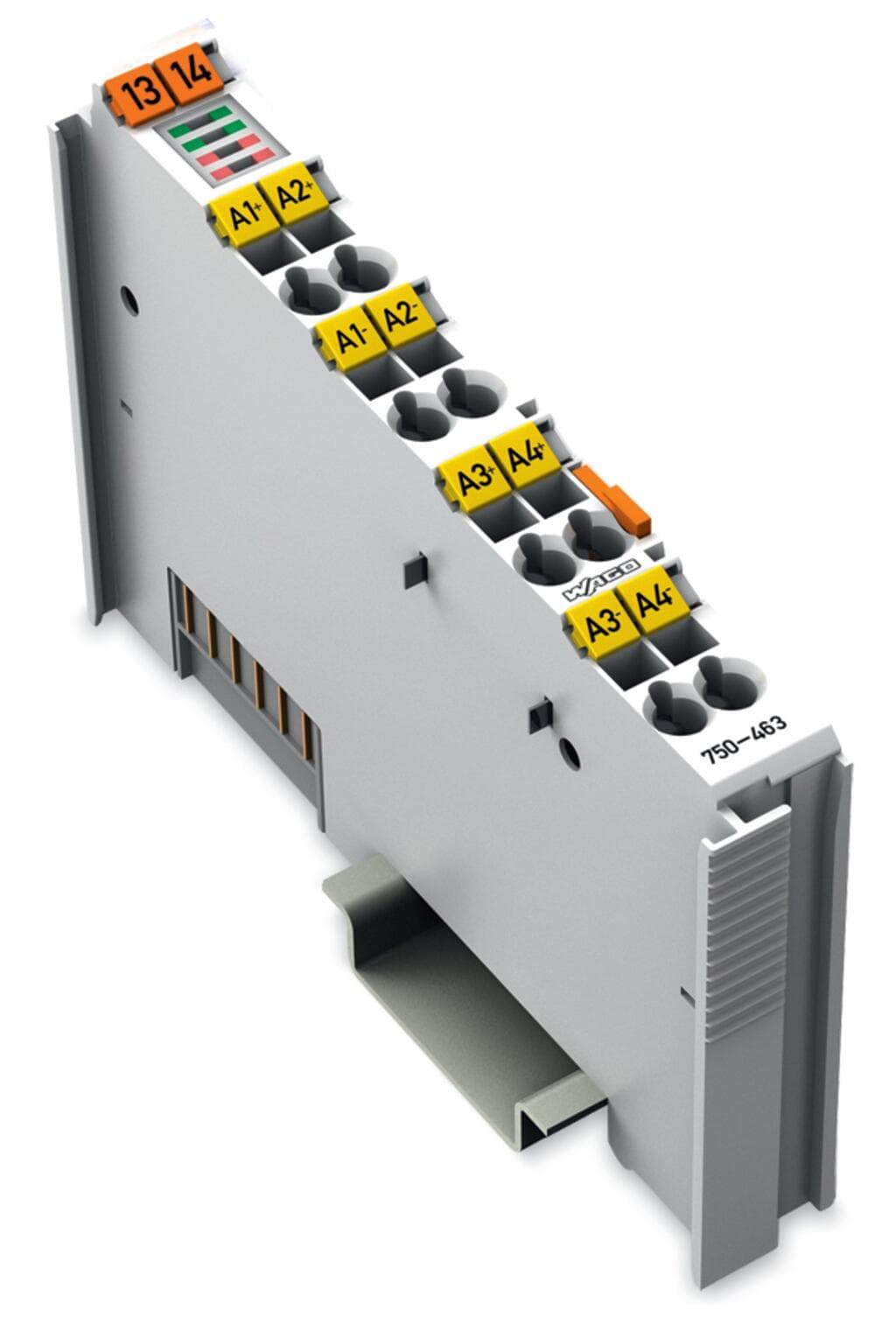

Product Model
750-463
Selling Points
- 1High Precision: 0.1°C resolution for accurate temperature measurements.
- 2Configurable Inputs: Supports Pt1000, Ni1000, and KTY 81 thermistors.
- 3Durable Design: IP20 protection and vibration resistance according to IEC 60068-2-6.
- 4Easy Installation: DIN-35 rail mounting with spring CAGE CLAMP connections.
- 5Versatile Power Supply: Operates on 5V DC system supply with adjustable field supply voltage (18-32.5V DC).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of analog inputs | 4 | Number of Channels | 4 |
Signal type | Resistance measurement | Signal type (configurable) | yes |
Sensor connection | 4 x (2-wire) | Data width | 4 x 16-bit data; 4 x 8-bit control/status (optional) |
Resolution (over entire range) | 0.1?°C | Measurement error (25 °C) | ≤?0.5?K in temperature range: ?30 … +150?°C |
Temperature coefficient | ≤?20?ppm/K | Measuring current (typ.) | ≤ 350?μA |
Measurement repetition rate (standard) | 1.1s | Measurement repetition rate (2-channel/2-conductor) | 0.63s |
Response time (max.) | 4s | Sensor types | Pt1000; Configurable: Ni1000, KTY 81 |
Temperature range | ?30 … +150?°C | Configuration options | WAGO-I/O-CHECK |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 50mA |
Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Isolation | 500?V system/field |
Indicators | LED (A, B, E, F) green: Function AI 1 … AI 4; LED (C, D, G, H) red: Error AI 1 … AI 4 | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Connection technology: inputs / outputs | 8 x CAGE CLAMP? |
Connection type 1 | Inputs/Outputs | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 67.8?mm?/ 2.669?inches | Depth from upper-edge of DIN-rail | 60.6?mm?/ 2.386?inches |
Mounting type | DIN-35 rail | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 0.967MJ |
Weight | 49.7g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-1; EN 61000-6-2 |
EMC emission of interference | per EN 61000-6-3 | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-01 |
eCl@ss 9.0 | 27-24-26-01 | ETIM 9.0 | EC001596 |
ETIM 8.0 | EC001596 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821419181 |
Customs tariff number | 8538901000 | CAS-No. | 11120-22-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 5bf9acfa-cae9-40f8-9227-dbac3fa5b5ff |
SCIP notification number (Belgium) | c5adc442-cade-45f2-9dda-5291786a185c | SCIP notification number (Bulgaria) | 351aa088-aa27-4073-acc7-d36e4d1c3e46 |
SCIP notification number (Czech Republic) | 51b6f167-f86d-4477-88a0-18224864da59 | SCIP notification number (Denmark) | 4e024681-b63d-4671-83ae-8f999d38b5e6 |
SCIP notification number (Finland) | 20ad00eb-d6c4-4606-91c6-3f058f102782 | SCIP notification number (France) | e53e2dc8-6e08-4243-a10b-f88a1261042b |
SCIP notification number (Germany) | 6912aeb9-9bc1-43f9-a3dc-03d6a7ddaf65 | SCIP notification number (Hungary) | 96a749ad-ddee-41b1-a067-4a5159a4fcaa |
SCIP notification number (Italy) | 495218c6-9554-4fbe-a4e2-7ed7ff8c6afe | SCIP notification number (Netherlands) | 42f490c3-0a52-4504-9233-6c8cffbca53d |
SCIP notification number (Poland) | 3bbdb231-cedc-4378-afc0-0b7a68417905 | SCIP notification number (Romania) | d71ce009-40a0-45c9-80ac-897713a322a6 |
SCIP notification number (Sweden) | e24e768b-0900-471e-a213-b9b1d9b5a430 |
Specifications may be subject to change without notice
