Product Model

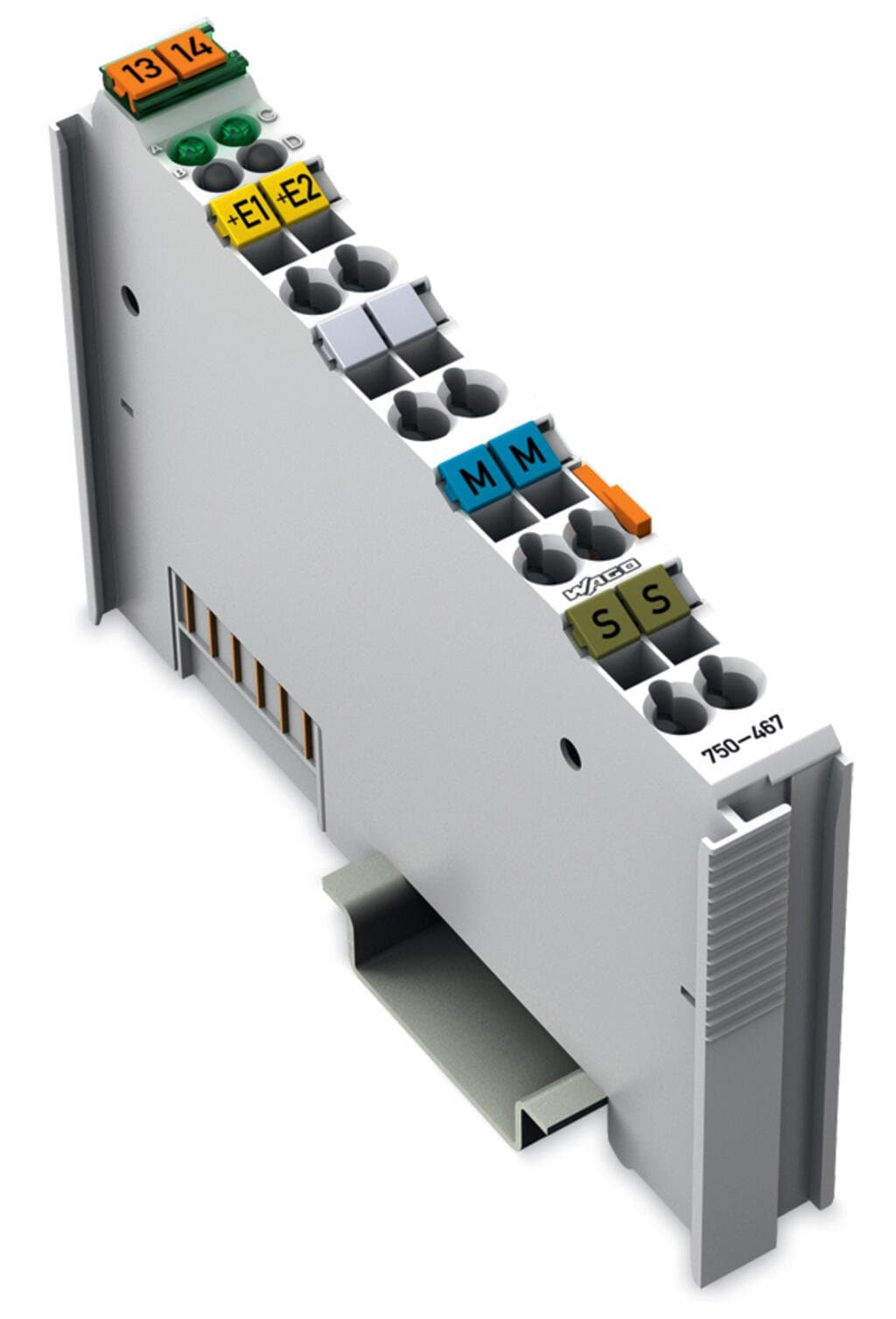

750-467
Selling Points
- 1High Accuracy: 12-bit resolution for precise signal processing.
- 2Easy Installation: 8 x CAGE CLAMP® connections for secure and efficient mounting.
- 3Durable Design: IP20 protection and robust housing made of polycarbonate and polyamide 6.6.
- 4Versatile Application: Suitable for horizontal and vertical mounting on DIN-35 rail.
- 5Reliable Isolation: 500 V system/field isolation for safe operation in industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of analog inputs | 2 | Number of Channels | 2 |
Signal type | Voltage | Signal type (voltage) | 0 … 10?VDC |
Sensor connection | 2 x (2-wire) | Input voltage (max.) | 35 V |
Signal characteristics | Single-ended | Resolution [bit] | 12bits |
Data width | 2 x 16-bit data; 2 x 8-bit control/status (optional) | Internal resistance | 130kΩ |
Conversion time (typ. ≤) | 2ms | Measurement error, reference temperature | 25°C |
Measurement error, deviation max (upper-range value) ≤± | 0.2% | Temperature error max. (upper-range value) ≤± | 0.01%/K |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 60mA |
Isolation | 500?V system/field | Indicators | LED (A, C) green: Function AI 1, AI 2 |
Connection technology: inputs / outputs | 6 x CAGE CLAMP? | Connection type 1 | Inputs/Outputs |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 12?mm?/ 0.472?inches |
Height | 100?mm?/ 3.937?inches | Depth | 69.8?mm?/ 2.748?inches |
Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches | Mounting type | DIN-35 rail |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 1.014MJ | Weight | 47.6g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2 | EMC emission of interference | per EN 61000-6-4 |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-01 | eCl@ss 9.0 | 27-24-26-01 |
ETIM 9.0 | EC001596 | ETIM 8.0 | EC001596 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454392994 | Customs tariff number | 8538901000 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 7daf7c58-b236-4e47-9b75-6d15ff655b93 | SCIP notification number (Belgium) | f0b934af-d8c6-4c3a-b00d-c31ec437ff6a |
SCIP notification number (Bulgaria) | 8b9c2188-4d74-44c1-865c-612307cd25e2 | SCIP notification number (Czech Republic) | 9f780f42-565a-41dd-be95-afb8da4d44fd |
SCIP notification number (Denmark) | 1756c932-55b9-4e30-9b73-1d19fdb7c2bd | SCIP notification number (Finland) | 82f550b8-d48d-4477-897b-8c9fd2cf2fcc |
SCIP notification number (France) | dea70fdb-33b9-416d-8c1e-88e737e8690e | SCIP notification number (Germany) | 787c35fc-c496-4354-9d28-b9aea662a11a |
SCIP notification number (Hungary) | 4c8befe0-9e01-46b6-8a6e-cf80f25f731a | SCIP notification number (Italy) | e3698ec4-a690-4767-a299-aa046343070e |
SCIP notification number (Netherlands) | c31ba6ec-fcae-49de-bc97-5394159d4295 | SCIP notification number (Poland) | 11831b17-7a0d-43d0-8ef1-b9cc6e0bb45a |
SCIP notification number (Romania) | 8ce057ae-9f70-46f5-8327-f805024916cc | SCIP notification number (Sweden) | 1ae5e9cf-a405-425c-8687-40f8ffa78648 |
Specifications may be subject to change without notice
