Product Model

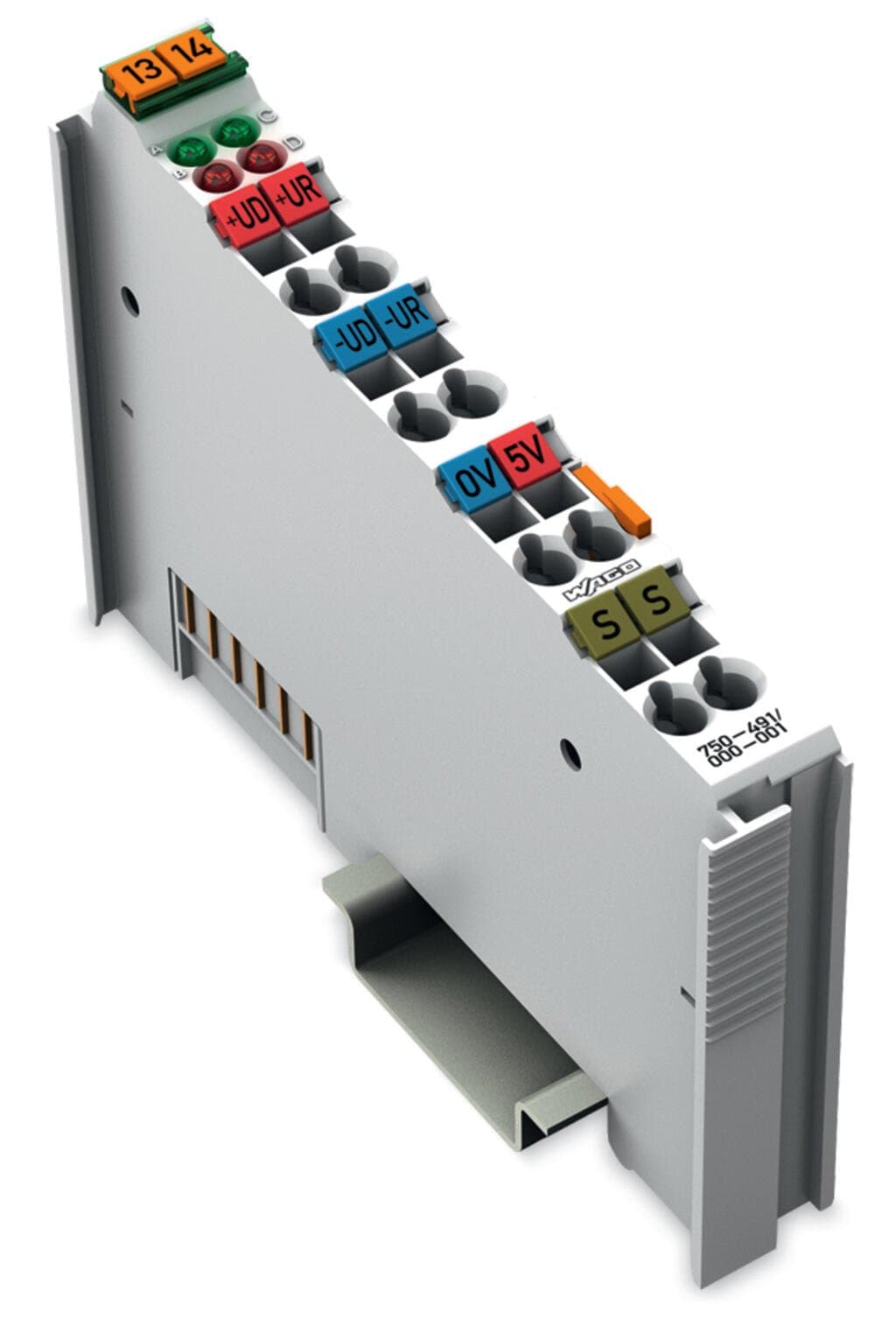

750-469/000-001
Selling Points
- 1High Accuracy for Thermocouples: Designed to accurately measure thermocouple signals, ensuring precise temperature readings.
- 2Durable Construction: Built with robust materials for long-lasting performance in harsh industrial environments.
- 3Easy Installation: Features CAGE CLAMP connections for quick and secure wiring, simplifying setup and maintenance.
- 4Diagnostic Capabilities: Includes diagnostics for thermocouples, allowing for easy troubleshooting and monitoring.
- 5Comprehensive Support: Compatible with various thermocouple types, including K, S, and others, making it versatile for different applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of analog inputs | 2 | Number of Channels | 2 |
Signal type | Thermocouple | Sensor connection | 2 x (2-wire) |
Data width | 2 x 16-bit data; 2 x 8-bit control/status (optional) | Internal resistance | 1000kΩ |
Resolution (over entire range) | 0.1?°C | Conversion time (typ. ≤) | 320ms |
Measurement error (25 °C) | < ±6 K (voltage input < ±2 K; cold junction compensation < ±4 K) | Temperature coefficient | < ±0.2 K/K |
Sensor types | Thermocouple S | Temperature range | ?50 … +1700?°C |
Cold junction compensation | at each pair of terminal blocks | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 65mA | Isolation | 500?V system/field |
Indicators | LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2 | Connection technology: inputs / outputs | 8 x CAGE CLAMP? |
Connection type 1 | Inputs/Outputs | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 69.8?mm?/ 2.748?inches | Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches |
Mounting type | DIN-35 rail | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 1MJ |
Weight | 53g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-4, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-01 |
eCl@ss 9.0 | 27-24-26-01 | ETIM 9.0 | EC001596 |
ETIM 8.0 | EC001596 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454393090 |
Customs tariff number | 8538901000 | End of Sale | 2023-12-31 |
End of Production | 2024-03-31 | End of Delivery | 2024-04-01 |
End of Service and Repair | 2026-04-01 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | cd841cff-9f54-4910-81a8-c29b045ca066 |
SCIP notification number (Belgium) | 2035ea29-730d-4f39-bd44-0279be49d3a0 | SCIP notification number (Bulgaria) | 9abc8797-81c4-45c7-a79f-6401b9026f79 |
SCIP notification number (Czech Republic) | f64da3b0-4eaf-490a-a037-798e88961ab4 | SCIP notification number (Denmark) | 4cd03a75-73c4-41eb-a2f6-bdaa080a391c |
SCIP notification number (Finland) | d579f075-f68e-491d-92f7-e58b64ca139c | SCIP notification number (France) | 6b3c7e64-25d0-4ce9-84e5-9bb9cfe98bd2 |
SCIP notification number (Germany) | 99288fb2-48c5-4bac-9c7c-0b3cc11a3972 | SCIP notification number (Hungary) | 16d4126b-e57f-405c-8ede-1105278c9441 |
SCIP notification number (Italy) | 8903d94f-8d35-4e39-91cd-fd2fec691ad9 | SCIP notification number (Netherlands) | fc52221a-9c96-48e8-b319-6ee54850b299 |
SCIP notification number (Poland) | 33d78208-b8ca-471a-99dc-39c4c7568059 | SCIP notification number (Romania) | 38dcbfac-f3d0-4ee9-b5df-30cf67cfa718 |
SCIP notification number (Sweden) | 52fcc984-572c-4207-bf45-bed48f6e1a9d |
Specifications may be subject to change without notice
