Product Model

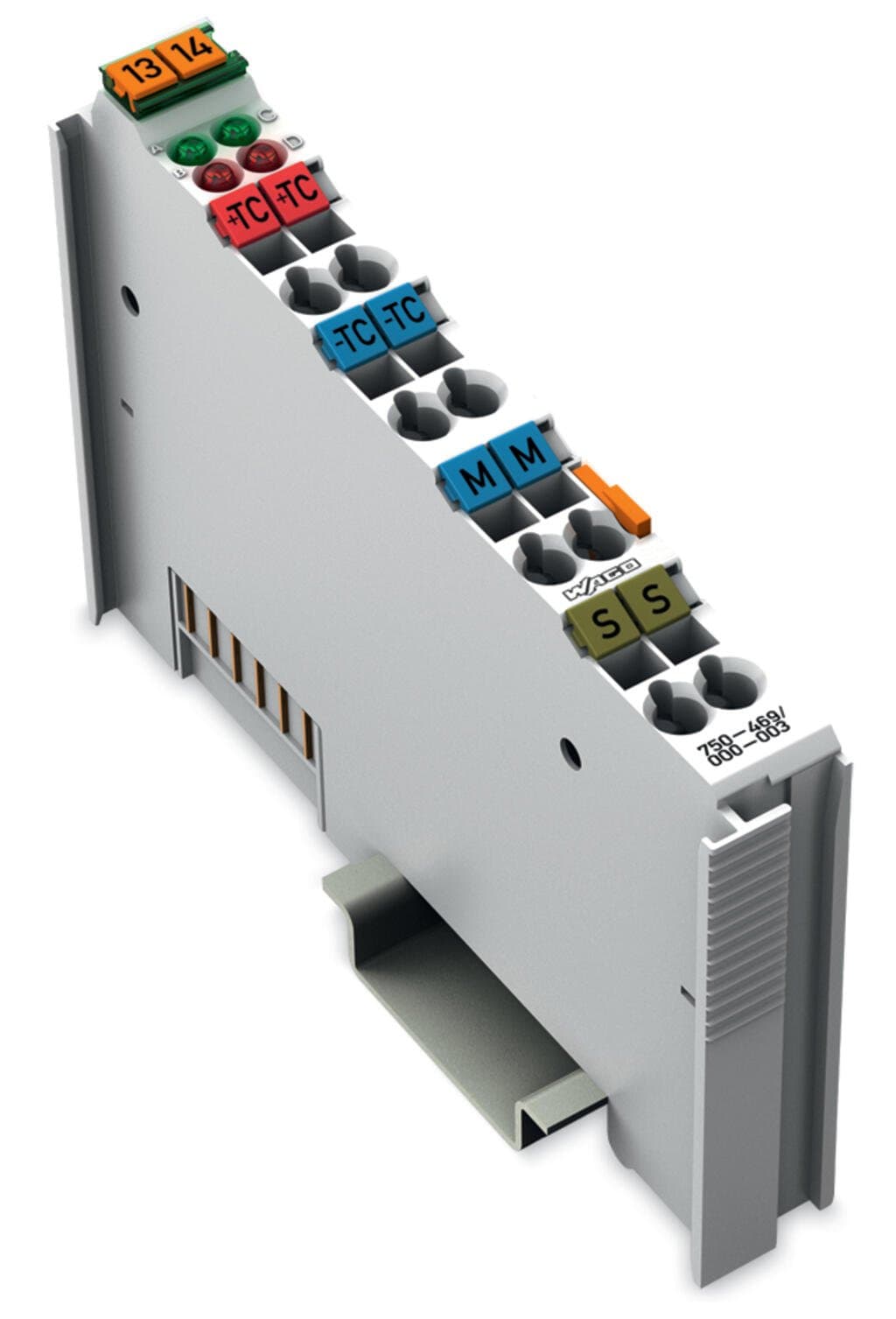

750-469/000-003
Selling Points
- 1High Accuracy: Supports all thermocouple types with ±0.1°C resolution.
- 2Durable Design: Constructed with polycarbonate and polyamide 6.6 for IP20 protection.
- 3Easy Installation: Mounts on DIN-35 rail with secure CAGE CLAMP connections.
- 4Versatile Connectivity: Compatible with various sensor types including K, J, E, T, N, U, B, R, S, and mV.
- 5Reliable Diagnostics: Includes adjustable diagnostics for enhanced system monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of analog inputs | 2 | Number of Channels | 2 |
Signal type | Low voltages | Sensor connection | 2 x (2-wire) |
Data width | 2 x 16-bit data; 2 x 8-bit control/status (optional) | Internal resistance | 1000kΩ |
Resolution (over entire range) | 0.1?°C | Conversion time (typ. ≤) | 320ms |
Measurement error (25 °C) | < ±6 K (voltage input < ±2 K; cold junction compensation < ±4 K) | Temperature coefficient | < ±0.2 K/K |
Sensor types | ±120?mV | Cold junction compensation | at each pair of terminal blocks |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 65mA |
Isolation | 500?V system/field | Indicators | LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2 |
Connection technology: inputs / outputs | 8 x CAGE CLAMP? | Connection type 1 | Inputs/Outputs |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 12?mm?/ 0.472?inches |
Height | 100?mm?/ 3.937?inches | Depth | 69.8?mm?/ 2.748?inches |
Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches | Mounting type | DIN-35 rail |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 1MJ | Weight | 52g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-4, marine applications |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-01 | eCl@ss 9.0 | 27-24-26-01 |
ETIM 9.0 | EC001596 | ETIM 8.0 | EC001596 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454393113 | Customs tariff number | 8538901000 |
End of Sale | 2023-12-31 | End of Production | 2024-03-31 |
End of Delivery | 2024-04-01 | End of Service and Repair | 2026-04-01 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 50fee08c-019f-4d61-b20a-fd00b77ba1de | SCIP notification number (Belgium) | 4607f4dd-15bc-48e8-86a1-4096e3b5bcc5 |
SCIP notification number (Bulgaria) | f6b08914-d23c-4a90-9069-877c176be816 | SCIP notification number (Czech Republic) | 0db9d391-c455-4a48-a21d-9d0962bb6bf1 |
SCIP notification number (Denmark) | e4a2a4ef-839e-4dd3-9916-f7cf4bf4278a | SCIP notification number (Finland) | fe51ea03-17b6-43e9-be38-c5280df1886b |
SCIP notification number (France) | 281a6eb6-07c4-4c54-aee2-46324b53ac82 | SCIP notification number (Germany) | 8a969715-e170-4f40-8a26-a0d2c5ce57be |
SCIP notification number (Hungary) | 5d62ba1f-a22b-4421-a23d-087575f96203 | SCIP notification number (Italy) | da0ffe97-b9b4-4576-b091-02a2cd7563d4 |
SCIP notification number (Netherlands) | c40b5f2e-67e7-4341-aaef-5038d1b1937f | SCIP notification number (Poland) | f2b9638e-5fc5-4ccf-bc83-04ee370f6a93 |
SCIP notification number (Romania) | ae39142b-c742-41b3-bdc3-3e0a2298f062 | SCIP notification number (Sweden) | 0c5c3e21-b933-4564-bec8-d7667807bdd7 |
