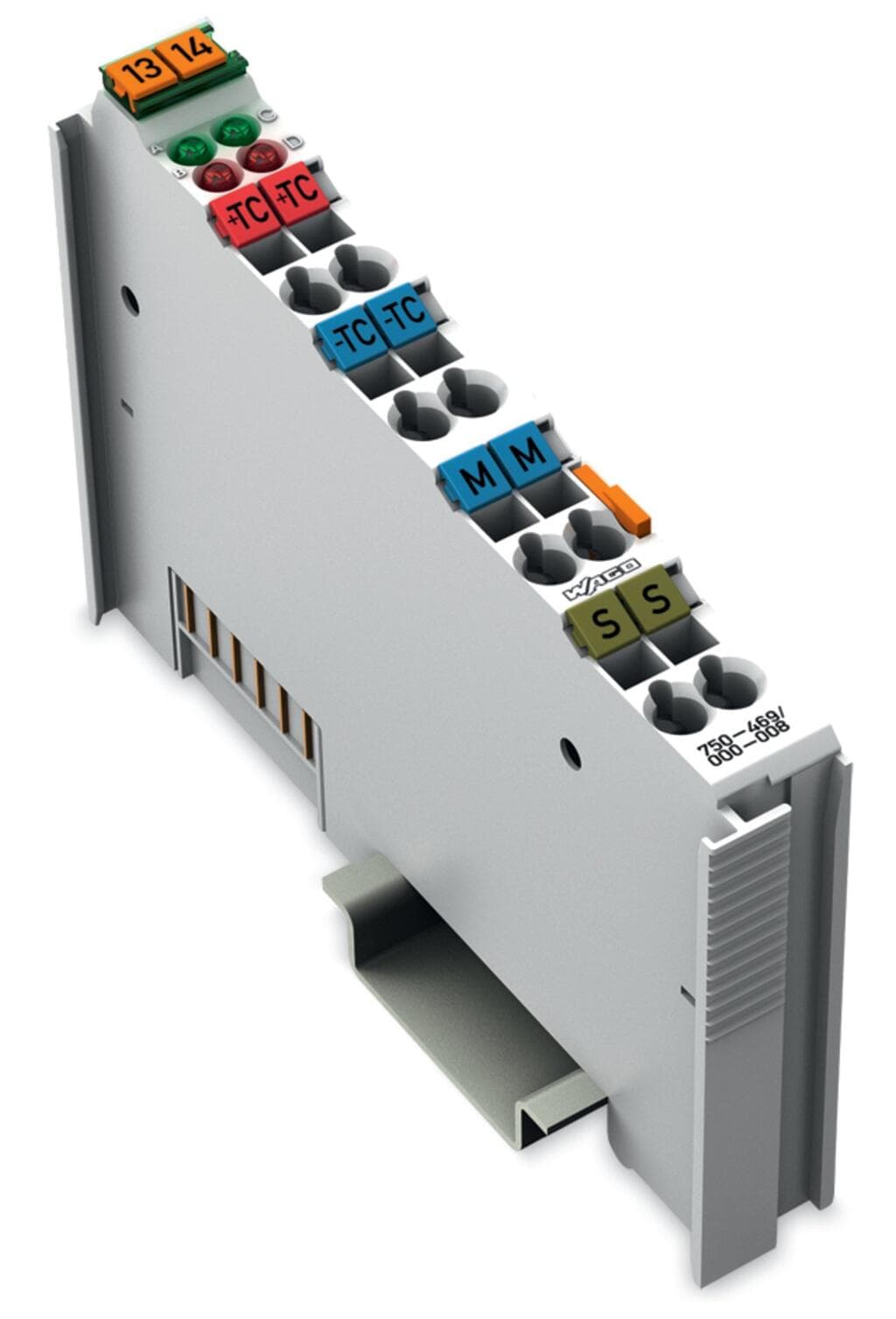

Product Model
750-469/000-008
Selling Points
- 1High Accuracy: 0.1°C resolution for precise thermocouple measurements.
- 2Fast Conversion: 320ms conversion time ensures quick data processing.
- 3Durable Design: IP20 protection rating and robust polycarbonate/polyamide housing.
- 4Easy Installation: Spring CAGE CLAMP connections for secure wiring and DIN-35 rail mounting.
- 5Versatile Applications: Suitable for various industrial applications with a 5V DC supply voltage.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of analog inputs | 2 | Number of Channels | 2 |
Signal type | Thermocouple | Sensor connection | 2 x (2-wire) |
Data width | 2 x 16-bit data; 2 x 8-bit control/status (optional) | Internal resistance | 1000kΩ |
Resolution (over entire range) | 0.1?°C | Conversion time (typ. ≤) | 320ms |
Measurement error (25 °C) | < ±6 K (voltage input < ±2 K; cold junction compensation < ±4 K) | Temperature coefficient | < ±0.2 K/K |
Sensor types | Thermocouple E | Temperature range | ?100 … +1000 °C |
Cold junction compensation | at each pair of terminal blocks | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 65mA | Isolation | 500?V system/field |
Indicators | LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2 | Connection technology: inputs / outputs | 8 x CAGE CLAMP? |
Connection type 1 | Inputs/Outputs | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 69.8?mm?/ 2.748?inches | Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches |
Mounting type | DIN-35 rail | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 1MJ |
Weight | 51.1g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-4, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-01 |
eCl@ss 9.0 | 27-24-26-01 | ETIM 9.0 | EC001596 |
ETIM 8.0 | EC001596 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454393144 |
Customs tariff number | 8538901000 | End of Sale | 2023-12-31 |
End of Production | 2024-03-31 | End of Delivery | 2024-04-01 |
End of Service and Repair | 2026-04-01 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 7f8418ed-7efb-4e00-8ea4-b3dde89c8eae |
SCIP notification number (Belgium) | 2b7be2c1-b3a4-444b-ac58-02ee6def4855 | SCIP notification number (Bulgaria) | e15830cf-f5ae-446a-bb97-5b57292dc432 |
SCIP notification number (Czech Republic) | 288d67ba-b020-44e8-9b6f-3ca97cbab0a3 | SCIP notification number (Denmark) | 519b19a4-abfb-44e5-98af-b72032516894 |
SCIP notification number (Finland) | 006b7420-a9d6-41de-a797-5c52afea0253 | SCIP notification number (France) | f5651d77-9788-4e61-8e55-62034e4d468e |
SCIP notification number (Germany) | 0c827ac7-613c-4c89-9870-0f76f53906ff | SCIP notification number (Hungary) | 685963af-ff75-4b43-9a1f-7f72e11308f2 |
SCIP notification number (Italy) | 8b7ac983-d19f-4cd7-823c-5c173f32b715 | SCIP notification number (Netherlands) | c04927bf-47aa-4cad-b63d-c31aa32f26a1 |
SCIP notification number (Poland) | 70c83e1b-cc2f-44eb-b8dd-87c5941c93e9 | SCIP notification number (Romania) | f0f7992b-25a9-430b-b756-e6376797a924 |
SCIP notification number (Sweden) | 7c4f76ad-f78e-4ae1-8c16-720f65e49e9e |
