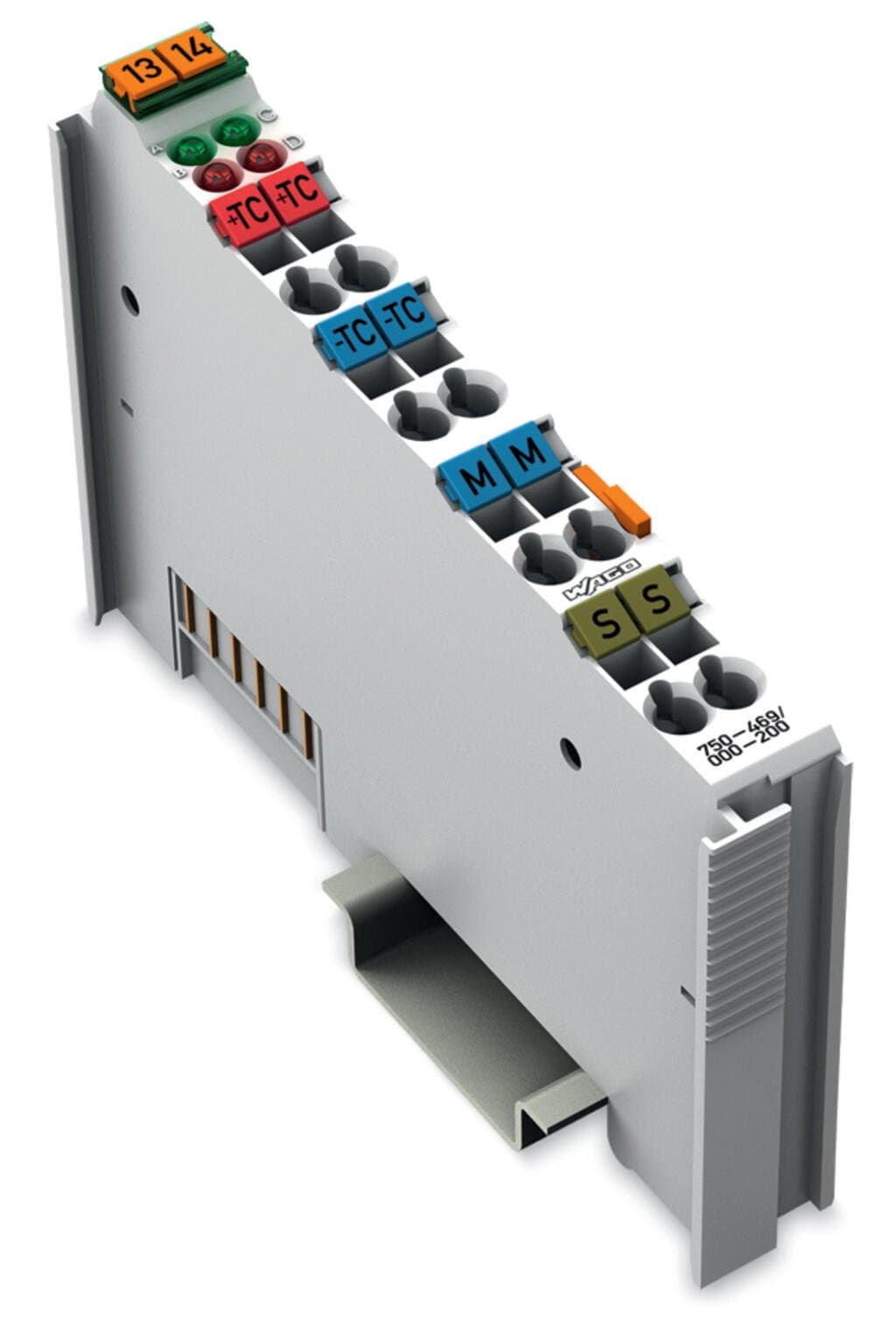

Product Model
750-469/000-200
Selling Points
- 1High Precision Thermocouple K Input: Accurate temperature measurement with 0.1°C resolution.
- 2Diagnostics and S5 PLC Compatibility: Enhanced diagnostics and seamless integration with S5 PLC systems.
- 3Secure Wiring with CAGE CLAMP: Spring-loaded CAGE CLAMP connections ensure secure and reliable wiring.
- 4DIN-35 Rail Mounting: Compact design for easy mounting on DIN-35 rail systems.
- 5IP20 Protection and Wide Temperature Range: Robust IP20 protection and operable in ambient temperatures from 0°C to +55°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of analog inputs | 2 | Number of Channels | 2 |
Signal type | Thermocouple | Sensor connection | 2 x (2-wire) |
Data width | 2 x 16-bit data; 2 x 8-bit control/status (optional) | Internal resistance | 1000kΩ |
Resolution (over entire range) | 0.1?°C | Conversion time (typ. ≤) | 320ms |
Measurement error (25 °C) | < ±6 K (voltage input < ±2 K; cold junction compensation < ±4 K) | Temperature coefficient | < ±0.2 K/K |
Sensor types | Thermocouple K | Temperature range | ?100 … +1370?°C |
Cold junction compensation | at each pair of terminal blocks | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 65mA | Isolation | 500?V system/field |
Indicators | LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2 | Connection technology: inputs / outputs | 8 x CAGE CLAMP? |
Connection type 1 | Inputs/Outputs | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 69.8?mm?/ 2.748?inches | Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches |
Mounting type | DIN-35 rail | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 1MJ |
Weight | 51.5g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-4, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-01 |
eCl@ss 9.0 | 27-24-26-01 | ETIM 9.0 | EC001596 |
ETIM 8.0 | EC001596 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454495060 |
Customs tariff number | 8538901000 | End of Sale | 2023-12-31 |
End of Production | 2024-03-31 | End of Delivery | 2024-04-01 |
End of Service and Repair | 2026-04-01 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 9a0e2d36-c36a-4cc9-b063-146288537883 |
SCIP notification number (Belgium) | a656e701-ddba-48a6-804a-7ef3ecc169f9 | SCIP notification number (Bulgaria) | ed9b90d7-f947-419e-8904-3b9c5fa06a2f |
SCIP notification number (Czech Republic) | 1a936d04-4027-42a1-af7d-e699155db859 | SCIP notification number (Denmark) | d1928ca9-c11e-470a-b987-a7bcfa3d621a |
SCIP notification number (Finland) | c485ecfd-5e46-4c1e-a77b-fa04a7aa2f60 | SCIP notification number (France) | 835fda92-2066-4390-8be8-42ddebd3b146 |
SCIP notification number (Germany) | 2c812532-d304-4428-9b9c-065e1f0cc133 | SCIP notification number (Hungary) | 9975758a-c651-4752-bcef-82b2389ef9b6 |
SCIP notification number (Italy) | 2e137c3a-d141-4194-9cf8-4745fad05df5 | SCIP notification number (Netherlands) | 07df5cdf-e8dd-48ad-bfbd-ca3c7bfb4a86 |
SCIP notification number (Poland) | a92e0fb4-7bea-432e-811d-313646c44461 | SCIP notification number (Romania) | 3077a809-d1bc-4fa1-b95d-644df3af2a0a |
SCIP notification number (Sweden) | c2e33402-d618-4f60-9be8-526474f34b9c |
Specifications may be subject to change without notice
