Product Model

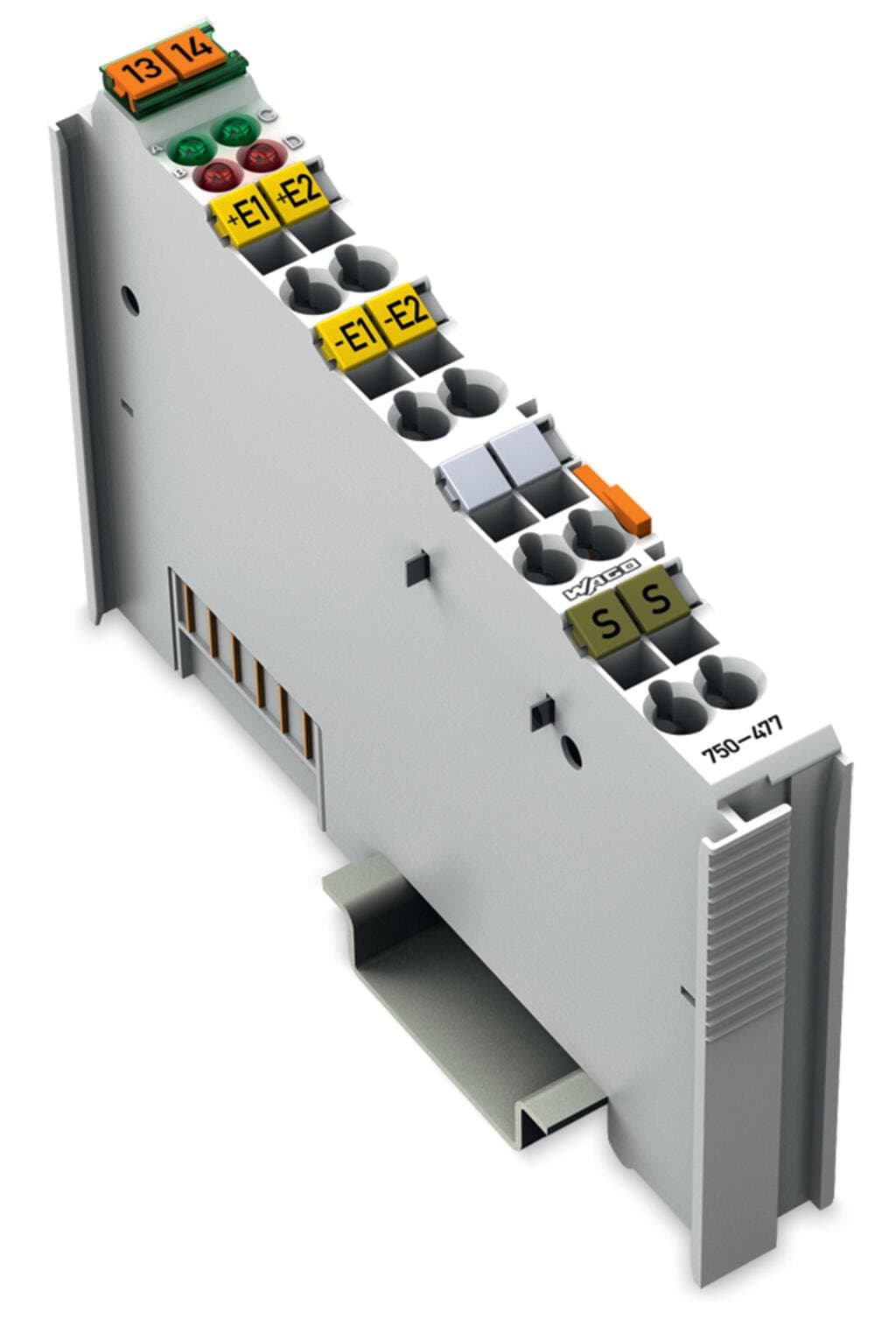

750-477
Selling Points
- 1Differential Input: Process AC and DC voltages from 0 to 10 V with differential inputs for precise measurements.
- 2Compact Design: Measuring 69.8 mm in depth and 100 mm in height, this module fits seamlessly into limited spaces.
- 3Secure Connections: Utilize 8 x CAGE CLAMP® connections for fast, vibration-proof, and maintenance-free connections.
- 4Wide Operating Range: Operate in ambient temperatures from 0 to +55°C and at altitudes up to 2000 meters.
- 5High Isolation: Ensure electrical isolation with 500 V system/field or channel/channel for safe operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of analog inputs | 2 | Number of Channels | 2 |
Signal type | Voltage | Signal type (voltage) | 0 … 10?VAC/DC |
Sensor connection | 2 x (2-wire) | Signal characteristics | Differential |
Resolution [bit] | 15bits | Data width | 2 x 16-bit data; 2 x 8-bit control/status (optional) |
Internal resistance | 120kΩ | Conversion time (typ. ≤) | 200ms |
Measurement error, reference temperature | 25°C | Measurement error, deviation max (upper-range value) ≤± | 0.1% |
Measurement error over entire temperature range | ≤ ±0.6 % | Temperature coefficient | < ±110 ppm/K of greatest measurement range |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 80mA |
Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Process data | 0.0 V corresponds to 0x0000; 20 VDC corresponds to 0x4E20 |
Isolation | 500?V system/field or channel/channel | Indicators | LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2 |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Connection technology: inputs / outputs | 6 x CAGE CLAMP? | Connection type 1 | Inputs/Outputs |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 12?mm?/ 0.472?inches |
Height | 100?mm?/ 3.937?inches | Depth | 69.8?mm?/ 2.748?inches |
Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches | Mounting type | DIN-35 rail |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 1.247MJ | Weight | 49.4g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2 | EMC emission of interference | per EN 61000-6-4 |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-01 | eCl@ss 9.0 | 27-24-26-01 |
ETIM 9.0 | EC001596 | ETIM 8.0 | EC001596 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454504649 | Customs tariff number | 8538901000 |
CAS-No. | 25550-51-0 | REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | 4e65f0e5-789e-4372-8fab-8177d5a7940a |
SCIP notification number (Belgium) | 7cfd9bab-83d7-427a-9a46-b008639199df | SCIP notification number (Bulgaria) | 809d8029-2f02-452e-b71d-3cbc15ee210a |
SCIP notification number (Czech Republic) | 64b6c738-b433-4405-a8c3-d1bd11e54c92 | SCIP notification number (Denmark) | 4dba9653-53bb-4ee0-92cf-e4b8c5ce26d2 |
SCIP notification number (Finland) | 51e5530e-7a20-4cdf-8580-34cf272848fd | SCIP notification number (France) | 03b24fc8-cf8e-44ca-8bd8-bdc824d7c134 |
SCIP notification number (Germany) | 67ffb58c-b8f4-4a21-b160-b6308f229004 | SCIP notification number (Hungary) | a4a67c99-5a86-45c2-a346-28af9968a2e7 |
SCIP notification number (Italy) | 09b613bc-7c61-4258-82f7-7be527c92756 | SCIP notification number (Netherlands) | b39367a4-4a4f-46b6-b8f8-0f295321ee60 |
SCIP notification number (Poland) | 466443ec-68d5-4f56-84fd-8a8a684eaaf4 | SCIP notification number (Romania) | dd1f8f05-62d4-4133-9b95-460a0245690b |
SCIP notification number (Sweden) | 3bdcf72c-c3b7-46cc-97c4-9cee41b3a66c |
Specifications may be subject to change without notice
