Product Model

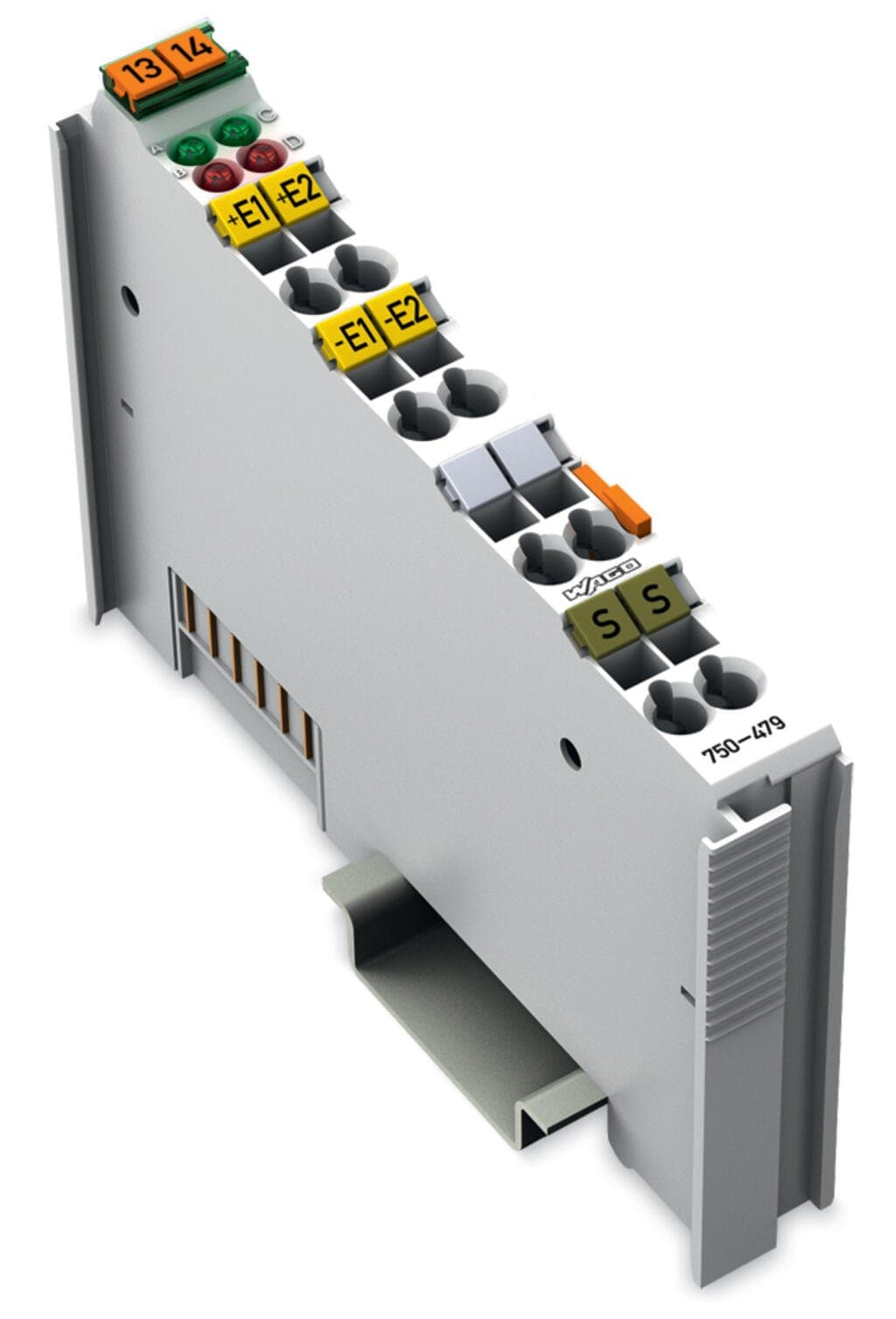

750-479
Selling Points
- 114-bit resolution for precise measurements.
- 2Constructed with polycarbonate and polyamide 6.6 for long-lasting performance.
- 3Mounts on DIN rail for straightforward integration.
- 4IP20 protection against dust and water, ensuring reliable operation.
- 5Uses 8 x CAGE CLAMP terminals for secure connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of analog inputs | 2 | Number of Channels | 2 |
Signal type | Voltage | Signal type (voltage) | -10 … +10?VDC |
Sensor connection | 2 x (2-wire) | Input filter | Low pass (1st order), fG= 5?kHz |
Signal characteristics | Differential | Resolution [bit] | 14bits |
Operating mode | Continuously sampling (default) | Data width | 2 x 16-bit data; 2 x 8-bit control/status (optional) |
Protective device | RC circuit | Admissible continuous overload | 60V |
Crosstalk attenuation | 80dB | Monotonicity without error code | yes |
Internal resistance | 1000kΩ | Measurement error, reference temperature | 25°C |
Measurement error, deviation max (upper-range value) ≤± | 0.05% | Measurement error over entire temperature range | ≤ 0.4 % |
Temperature error max. (upper-range value) ≤± | 0.01%/K | Sampling duration | 5μs |
Sampling delay (channel/channel) | 1μs | Sampling delay (module) | 1ms |
Sampling repetition time | 1ms | Measurement range overflow/underflow | Status byte and LED |
Measured value acquisition | Time synchronous within the module | Value of the least significant bit (LSB) | 1.2 mV |
Conversion method | SAR (Successive Approximation Register) | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 100mA | Isolation | 500?V system/field or channel/channel |
Indicators | LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2 | Connection technology: inputs / outputs | 6 x CAGE CLAMP? |
Connection type 1 | Inputs/Outputs | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 69.8?mm?/ 2.748?inches | Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches |
Mounting type | DIN-35 rail | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 1.034MJ |
Weight | 49.6g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-4, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-01 |
eCl@ss 9.0 | 27-24-26-01 | ETIM 9.0 | EC001596 |
ETIM 8.0 | EC001596 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454510237 |
Customs tariff number | 8538901000 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 02f6a6aa-3fe1-453a-b931-7ebd9af910c5 |
SCIP notification number (Belgium) | 2ed53dde-cdf6-4fd3-9364-dfa45eeba796 | SCIP notification number (Bulgaria) | 6527ae40-28ff-4e6c-a9a3-384d0d9fa413 |
SCIP notification number (Czech Republic) | b5df8ac8-d901-48a4-9a18-b7011a876218 | SCIP notification number (Denmark) | 23f4ec6b-587d-4839-9274-8c3c62216666 |
SCIP notification number (Finland) | c751e229-9550-485d-9490-fa0bb21edf05 | SCIP notification number (France) | 935f37c9-916f-46ca-8e17-7123db0ccea0 |
SCIP notification number (Germany) | 68e2a886-0541-4aa4-a51c-351347ea478a | SCIP notification number (Hungary) | 8d402b6a-5eb2-43bc-94fa-0d2d9b9100db |
SCIP notification number (Italy) | 3e3584ba-d8ef-4d40-ae54-6e58ae017f9f | SCIP notification number (Netherlands) | 3b2f0f49-86f7-47c2-8f5f-2050095e1a65 |
SCIP notification number (Poland) | 5b0131db-9cb4-4391-8c6c-a70a0d78c102 | SCIP notification number (Romania) | 5ca1287a-a10c-4e4b-9f81-1e8e3733bb58 |
SCIP notification number (Sweden) | cca9294f-316d-412b-a803-6582e4253655 |
Specifications may be subject to change without notice
