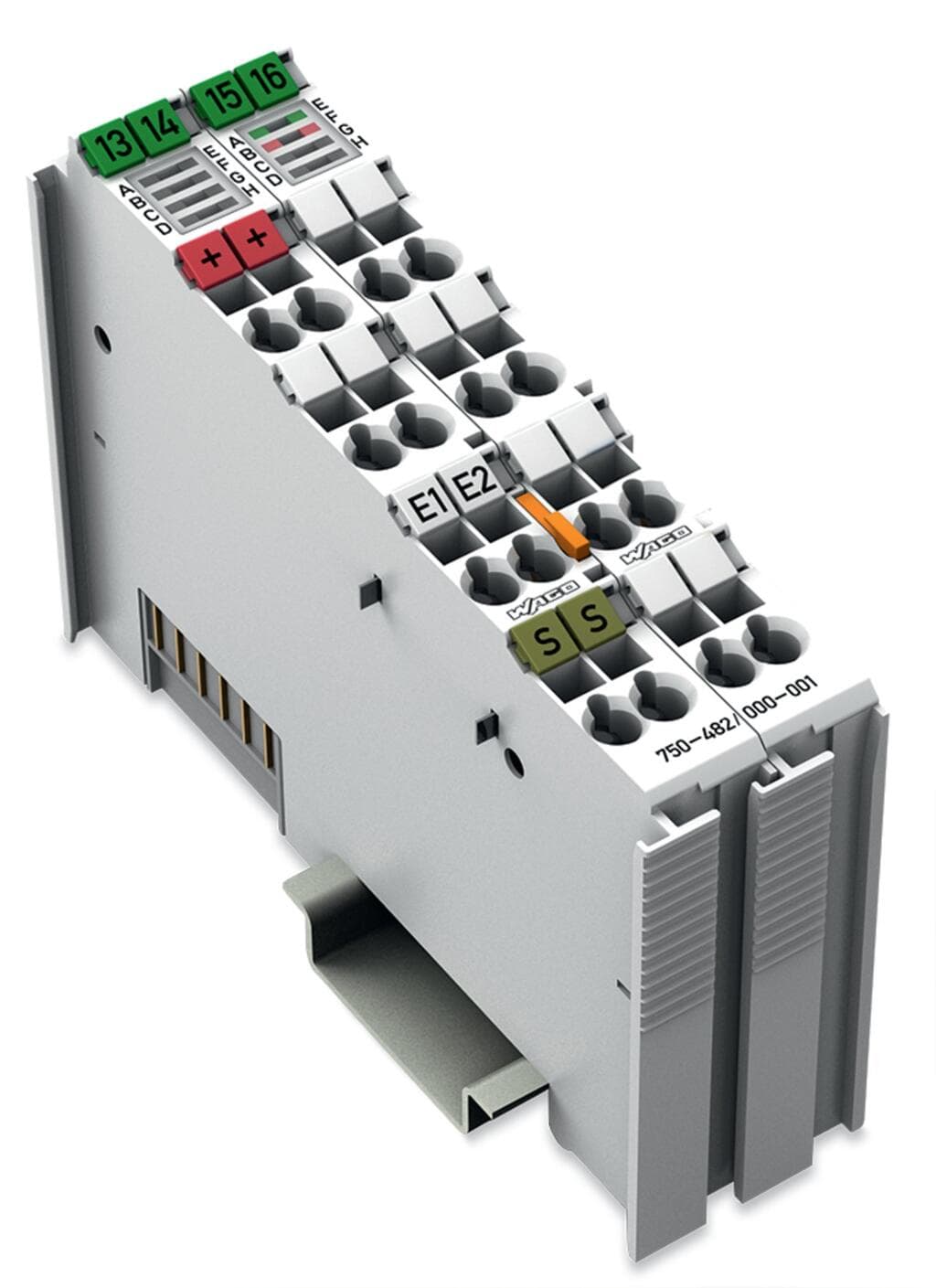

Product Model
750-482/000-001
Selling Points
- 112-bit resolution for precise analog input readings.
- 2Supports 4 dynamic variables (PV, SV, TV, QV) for advanced process control.
- 3IP20 protection rating and robust construction for reliable operation in harsh environments.
- 4DIN-35 rail mounting for straightforward integration into your automation system.
- 5Spring clamp connections for secure and efficient wiring setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of analog inputs | 2 | Number of Channels | 2 |
Signal type | Current | Signal type (current) | 3.6 … 21?mADC |
Sensor connection | 2 x (2-wire) | Input filter | parameterizable |
Input filter: parametrizable (channel by channel) | yes | Input voltage (max.) | 24 V |
Input voltage drop | (I meas < 28 mA): non-linear, overload protected U = 1.0 V + 300 Ω x I meas | Signal characteristics | Single-ended |
Diagnostics | Wire break, short circuit, measurement range overflow/underflow | Resolution [bit] | 12bits |
Data width | 2 x 2-byte data; 2 x 2-byte data + 2n x 4-byte data (n = number of dynamic variables); 2 x 2-byte data + 6-byte mailbox | Overvoltage protection | 30 V, reverse polarity protected |
Conversion time (typ. ≤) | 315ms | Measurement error, reference temperature | 25°C |
Measurement error, deviation max (upper-range value) ≤± | 0.2% | Temperature error max. (upper-range value) ≤± | 0.01%/K |
Line break detection | I meas < 1.0 mA | Short-circuit detection | I meas > 23 mA |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 25mA |
Supply voltage (field) | 24 VDC; via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | HART devices per channel | 1 device (single-drop, no multi-drop) |
HART modems per channel | 1 modem (no multiplex) | Isolation | 300?VAC system/supply |
Indicators | LED (A, E) green: Function HART 1, HART 2; LED (B, F) red: Error HART 1, HART 2 | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Connection technology: inputs / outputs | 6 x CAGE CLAMP? |
Connection type 1 | Inputs/Outputs | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 24?mm?/ 0.945?inches | Height | 100?mm?/ 3.937?inches |
Depth | 67.8?mm?/ 2.669?inches | Depth from upper-edge of DIN-rail | 60.6?mm?/ 2.386?inches |
Mounting type | DIN-35 rail | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 2.025MJ | Weight | 94.2g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2 | EMC emission of interference | per EN 61000-6-3 |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | eCl@ss 10.0 | 27-24-26-01 |
eCl@ss 9.0 | 27-24-26-01 | ETIM 9.0 | EC001596 |
ETIM 8.0 | EC001596 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143686327 |
Customs tariff number | 8538901000 | CAS-No. | 11120-22-2 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 0dc2670b-5987-4e2f-af08-ebe6ddadaf22 |
SCIP notification number (Belgium) | 1575da3b-a1e9-45b4-b4db-2d2b4a669e47 | SCIP notification number (Bulgaria) | 24c226ad-1fa5-433e-8bfa-cf734e960ad8 |
SCIP notification number (Czech Republic) | fca8ae5f-ad08-4026-aed5-48ce540d8c22 | SCIP notification number (Denmark) | 1cb11065-de95-4c52-93d6-8e7e70e43edd |
SCIP notification number (Finland) | f296c99d-c44d-4bb0-9b4b-3cdaedca636f | SCIP notification number (France) | 53b04e1f-0c74-4b58-9e26-7055cea4f178 |
SCIP notification number (Germany) | c3400d33-5ad5-4187-b599-1238c1fcfc38 | SCIP notification number (Hungary) | 78425d40-f020-4e9d-9db6-bf695b16d296 |
SCIP notification number (Italy) | e3a46cf9-b99b-4baa-994b-8a6fd6274e5e | SCIP notification number (Netherlands) | cab0440b-5fb8-46f1-bc0b-947a50081baa |
SCIP notification number (Poland) | 01064f68-a6e7-4b75-b44f-468b94eccdc3 | SCIP notification number (Romania) | b6933f10-8331-471e-8dcb-e91931c06649 |
SCIP notification number (Sweden) | c9c0a554-3b28-43b0-8b3b-cc55fd4caff6 |
Specifications may be subject to change without notice
