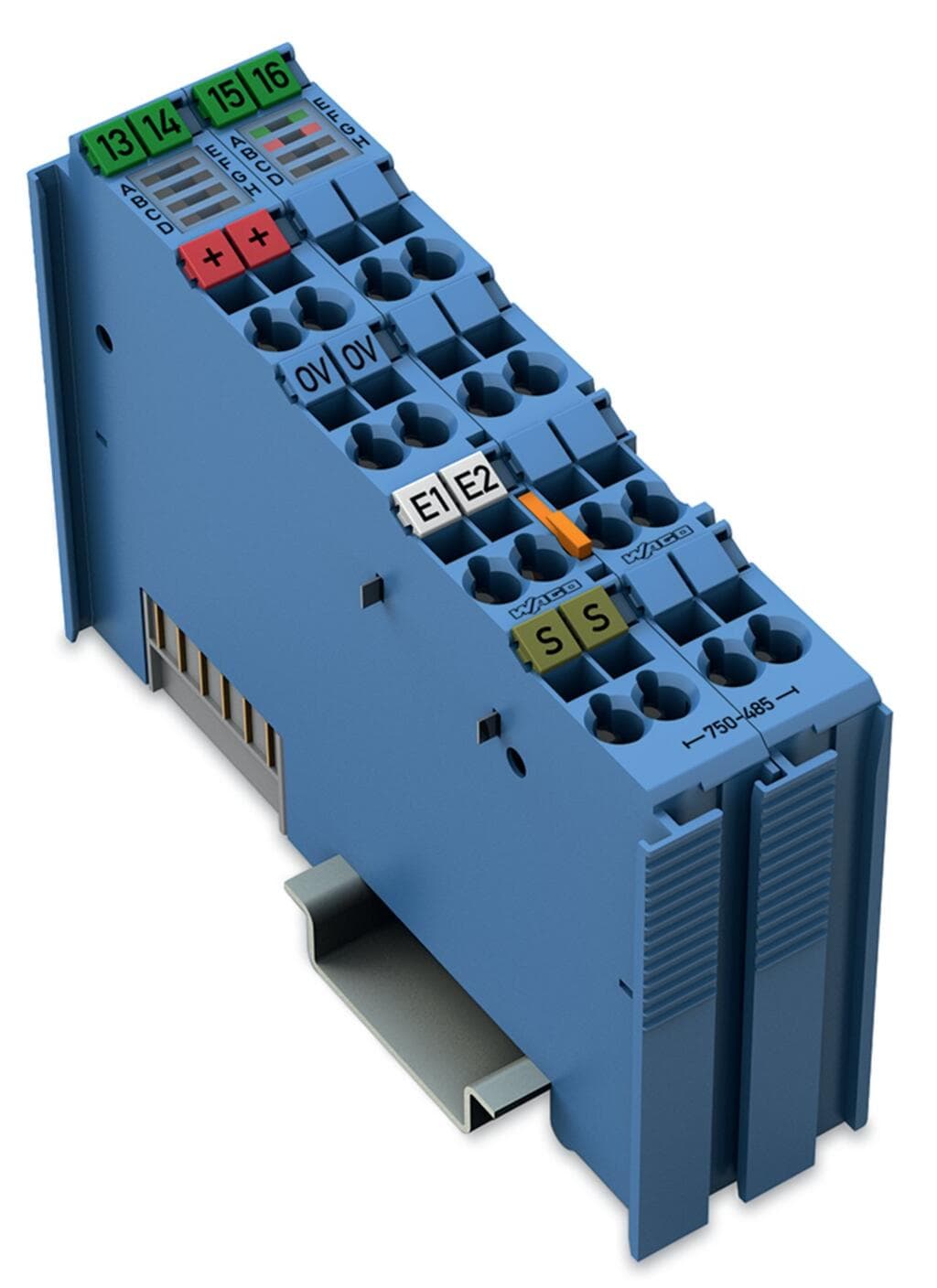

Product Model
750-485
Selling Points
- 1Intrinsically Safe Design: Ensures safe operation in hazardous environments.
- 2DIN Rail Mounting: Easy installation on DIN rail for compact and efficient setup.
- 32-Channel Analog Input: Supports two analog inputs for versatile signal processing.
- 44-20 mA Signal Type: Compatible with standard 4-20 mA current signals.
- 5High Accuracy: Offers a measurement error deviation of 0.2% from the upper range value.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The analog input module must only be operated via 24 VDC Ex i!General information (e.g., installation regulations) on explosion protection is available in the WAGO I/O System 750 manuals! | Order text | 2-Channel Analog Input; 4 … 20 mA |
Number of analog inputs | 2 | Number of Channels | 2 |
Signal type | Current | Signal type (current) | 4 … 20?mADC |
Sensor connection | 2 x (3-wire) | Signal characteristics | Single-ended |
Sensor supply | 16 VDC | Resolution [bit] | 12bits |
Conversion time (typ. ≤) | 2ms | Measurement error, reference temperature | 25°C |
Measurement error, deviation max (upper-range value) ≤± | ±0.2% | Temperature error max. (upper-range value) ≤± | ±0.01%/K |
Input resistance (max.) | 100Ω | Intrinsically safe Ex i | Yes |
Data width | 2 x 16-bit data; 2 x 8-bit control/status (optional) | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 31mA | Supply voltage (field) | 24 VDC; (Ex i power supply: Uo= max. 26.8 V); via power jumper contacts (power supply via blade contact; transmission via spring contact) |
Current consumption, field supply (module with no external load) | 11mA | Power consumption P<sub>max.</sub> | 1.3 W |
Power loss P<sub>l</sub> | 0.75 W | Isolation | 300?VAC system/supply |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Indicators | LED (A, E) green: Function AI 1, AI 2; LED (B, F) red: Error AI 1, AI 2 | Identification | ATEXII 3 (1) G Ex ec [ia Ga] IIC T4 GcII (1) D [Ex ia Da] IIICI (M1) [Ex ia Ma] I |
Ex standard | EN IEC 60079-0, -7, -11 | Safety-relevant data (circuit) | Uo= 27.3 V; Io= 90 mA; Po= 0.61 W; linear characteristic curve |
Reactances?Ex ia IIC | Lo= 5 mH; Co= 88 nF | Reactances Ex ia IIB | Lo= 18 mH; Co= 680 nF |
Reactances Ex ia IIA | Lo= 40 mH; Co= 2.2 μF | Reactances Ex ia I | Lo= 100 mH; Co= 3.5 μF |
Reactances (note) | Reactances without accounting for the concurrence of capacitance (Co) and inductance (Lo) | Connection technology: inputs / outputs | 8 x CAGE CLAMP? |
Connection type 1 | Inputs/outputs | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 24?mm?/ 0.945?inches | Height | 100?mm?/ 3.937?inches |
Depth | 67.8?mm?/ 2.669?inches | Depth from upper-edge of DIN-rail | 60.6?mm?/ 2.386?inches |
Mounting type | DIN-35 rail | Color | blue |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 2.379MJ |
Weight | 97.6g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -25 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-3, marine applications | Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-01 |
eCl@ss 9.0 | 27-24-26-01 | ETIM 9.0 | EC001596 |
ETIM 8.0 | EC001596 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 8538901000 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Bulgaria) | 5065582b-f270-43af-9e74-f9e23017a7b1 | SCIP notification number (Czech Republic) | 0170611b-8bdf-4c42-9ac1-72bd32bec088 |
Specifications may be subject to change without notice
