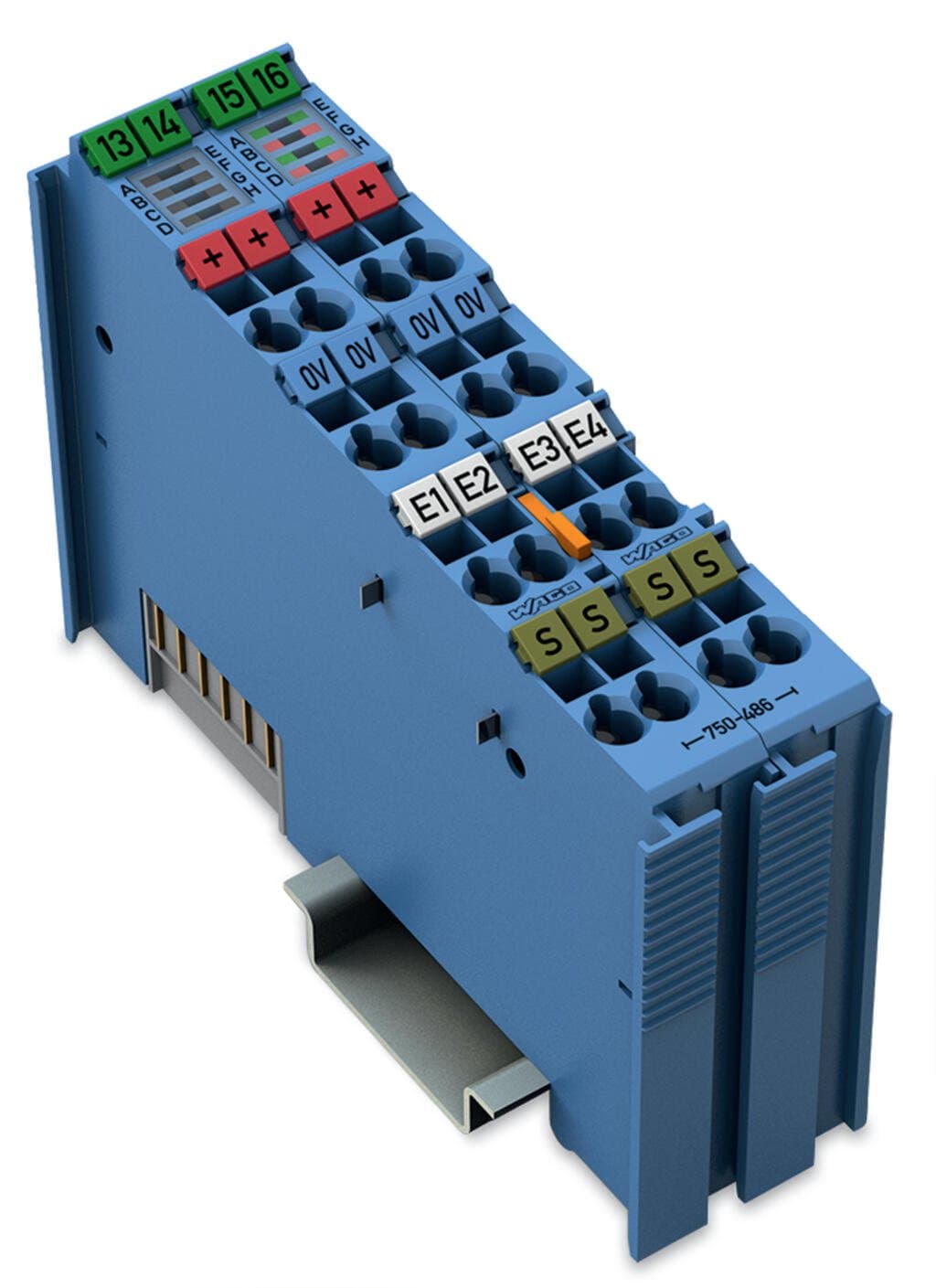

Product Model
750-486
Selling Points
- 1Measures 0/4 … 20 mA with single-ended input for precise analog signal processing.
- 2Designed for safe operation in hazardous environments, ensuring reliable performance.
- 3Compact footprint for easy integration into control systems, minimizing space requirements.
- 4Compatible with various fieldbus protocols and Ethernet standards for seamless integration.
- 5Built with polycarbonate housing, providing durability and resistance to environmental factors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The analog input module must only be operated via 24 VDC Ex i!General information (e.g., installation regulations) on explosion protection is available in the WAGO I/O System 750 manuals! | Order text | 4-Channel Analog Input; 0/4 … 20 mA; NAMUR NE43 |
Number of analog inputs | 4 | Number of Channels | 4 |
Signal type | Current | Signal type (current) | 0 … 20 mADC; 4 … 20 mADC; 3.6 … 21 mADC |
Sensor connection | 2 x (3-wire) | Signal characteristics | Single-ended |
Sensor supply | 15 VDC | Resolution [bit] | 12bits |
Conversion time (typ. ≤) | 10ms | Measurement error, reference temperature | 25°C |
Measurement error, deviation max (upper-range value) ≤± | ±0.1% | Temperature error max. (upper-range value) ≤± | ±0.01%/K |
Input resistance (max.) | 200Ω | Intrinsically safe Ex i | Yes |
Data width | 4 x 16-bit data; 4 x 8-bit control/status (optional) | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 45mA | Supply voltage (field) | 24 VDC; (Ex i power supply: Uo= max. 26.8 V); via power jumper contacts (power supply via blade contact; transmission via spring contact) |
Current consumption, field supply (module with no external load) | 19mA | Power consumption P<sub>max.</sub> | 2.7 W (at 4 x 21 mA signal current) |
Power loss P<sub>l</sub> | 1.5 W (at 4 x 21 mA signal current) | Isolation | UM = 375 V system/supply |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 1A | Indicators | LED (A, E, C, G) green: Function AI 1 … AI 4; LED (B, F, D, H) red: Error AI 1 … AI 4 |
Identification | ATEXII 3 (1) G Ex ec [ia Ga] IIC T4 GcII (1) D [Ex ia Da] IIICI (M1) [Ex ia Ma] I | Ex standard | EN IEC 60079-0, -7, -11 |
Safety-relevant data (circuit) | Uo= 27.3 V; Io= 98.4 mA; Po= 0.672 W; linear characteristic curve | Reactances?Ex ia IIC | Lo= 970 μH; Co= 88 nF |
Reactances Ex ia IIB | Lo= 13 mH; Co= 683 nF | Reactances Ex ia IIA | Lo= 22 mH; Co= 2.28 μF |
Reactances Ex ia I | Lo= 31 mH; Co= 3.6 μF | Reactances (note) | Reactances without accounting for the concurrence of capacitance (Co) and inductance (Lo) |
Connection technology: inputs / outputs | 16 x CAGE CLAMP? | Connection type 1 | Inputs/outputs |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 24?mm?/ 0.945?inches |
Height | 100?mm?/ 3.937?inches | Depth | 67.8?mm?/ 2.669?inches |
Depth from upper-edge of DIN-rail | 60.6?mm?/ 2.386?inches | Mounting type | DIN-35 rail |
Color | blue | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 2.033MJ | Weight | 116g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -25 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-3, marine applications |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | eCl@ss 10.0 | 27-24-26-01 |
eCl@ss 9.0 | 27-24-26-01 | ETIM 9.0 | EC001596 |
ETIM 8.0 | EC001596 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 8538901000 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 549055d6-6f9f-4c9d-b855-7486a1d6cb3a | SCIP notification number (Belgium) | 7c5e0ec5-4b5c-495e-85ab-8c4b17d0b137 |
SCIP notification number (Bulgaria) | 485c2c34-1cda-4cc4-a49f-bdbe01d8d580 | SCIP notification number (Czech Republic) | 474cd881-197a-4e7f-9d9d-56ae52483311 |
SCIP notification number (Denmark) | 7f8cc8a2-4c17-4246-901a-f36a098de931 | SCIP notification number (Finland) | 7602d62b-94b5-44a6-8da6-ccfea8ef5ecf |
SCIP notification number (France) | 60a2160b-b980-4efb-ba16-b12cd1cabb0d | SCIP notification number (Germany) | 9e11c3b8-9702-4919-a91b-bda35f90810c |
SCIP notification number (Hungary) | 8119bf7f-3b21-48b7-ab84-a594bf80a530 | SCIP notification number (Italy) | 40b21ee0-9bc8-486f-9958-c6e22e9afb1b |
SCIP notification number (Netherlands) | 97e4e9f6-cc3f-4289-9a68-d071c0e6fa99 | SCIP notification number (Poland) | f0ea8734-9828-4e42-86bd-3c858df8aa95 |
SCIP notification number (Romania) | 8d08dea9-f978-4ce4-9dc1-dcf3e759b55f | SCIP notification number (Sweden) | c378fdab-274a-422c-a91c-1e8be031c67d |
