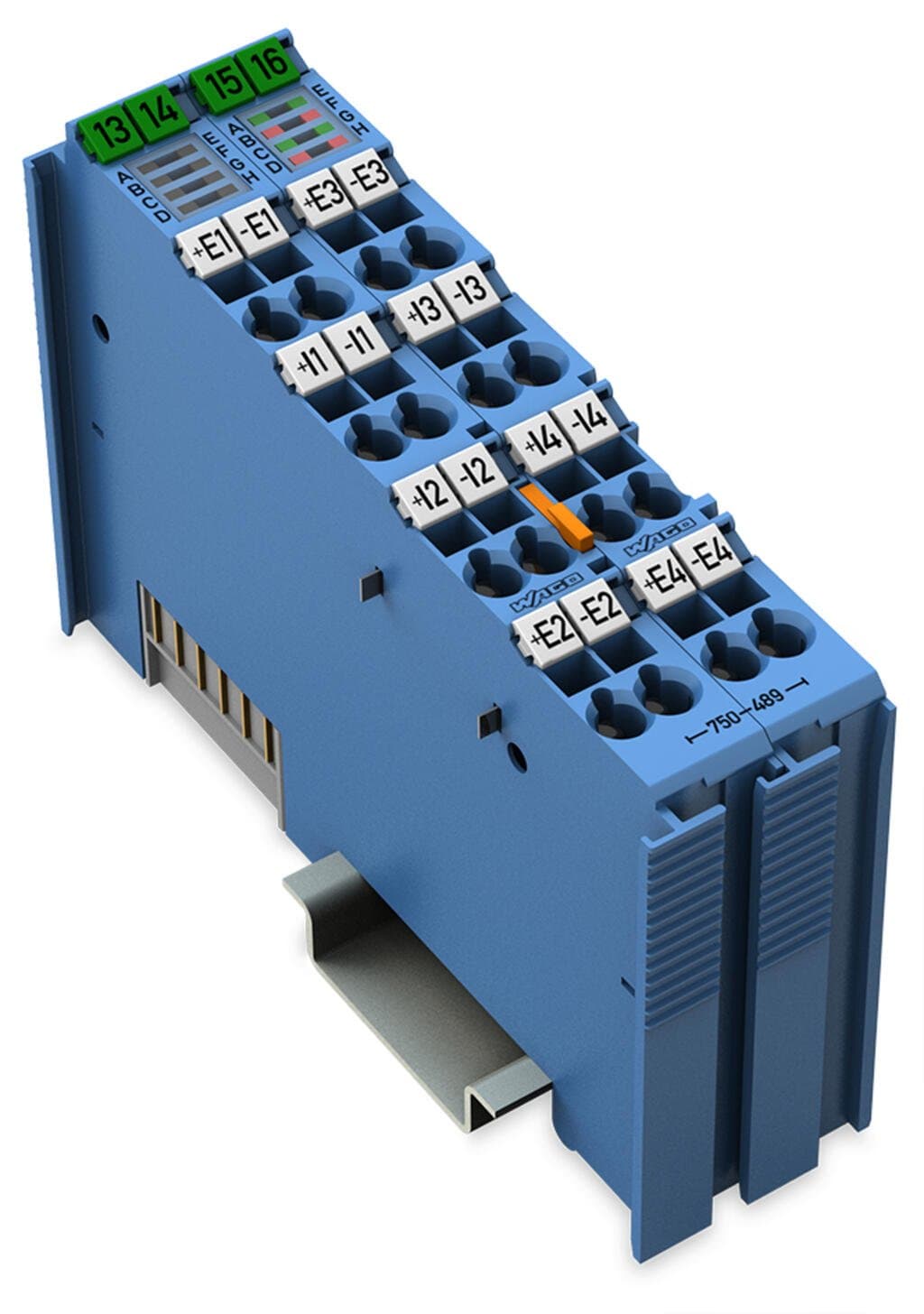

Product Model
750-489
Selling Points
- 14-Channel Analog Input: Supports multiple sensor types including RTD, TC, and strain gauge.
- 2Intrinsically Safe: Designed for hazardous environments with ATEX Ex certification.
- 316-Bit Resolution: Provides high accuracy in measurements with 16-bit resolution.
- 4DIN Rail Mounting: Easy installation on DIN rail for compact and efficient setup.
- 5LED Status Indicator: Visual diagnostics for quick status checks and troubleshooting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The analog input module must only be operated via 24 VDC Ex i!General information (e.g., installation regulations) on explosion protection is available in the WAGO I/O System 750 manuals! | Order text | 4-Channel Analog Input; RTD/TC |
Number of analog inputs | 4 | Number of Channels | 4 |
Signal type | Potentiometer positions | Signal type (configurable) | Yes |
Sensor connection | 4 x (2-wire, 3-wire, 4-wire) | Measurement range | RTDs: Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni200, Ni500, Ni1000, Ni1000-TK5000;Resistors:250 Ω, 500 Ω, 1 kΩ, 2 kΩ, 4 kΩ, PTC;Potentiometer setting: 0 … 100 %;Thermocouples: Type B; Type C; Type E; Type J; Type K; Type N; Type R, S; Type T;mV sensors:±30 mV; ±60 mV; ±120 mV; ±250 mV; ±500 mV; ±1,000 mV; ±2,000 mV; PTC thermistor;Resistor bridges (strain gauges) |
Resolution (over entire range) | 0.1 K of full scale value; 0.01 K of full scale value (restricted to -50 °C … +150 °C) | Conversion time | ≥10 ms/2 wires (per channel)*;≥20 ms/3 wires, 4 wires (per channel)*;*for RTD/R; TC/U conversion time depends on module setting |
Reference for measurement error | at 0 ≤ TA ≤ 55 °C | Measurement error, reference temperature | 25°C |
Measurement error, deviation max (upper-range value) ≤± | ±0.05% | Reference for measurement / output error | during user calibration |
Measurement error, reference temperature | 25°C | Temperature error max. (upper-range value) ≤± | ±0.001%/K |
Cold junction compensation | integrated | Intrinsically safe Ex i | Yes |
Data width | 4 x 16-bit data; 4 x 8-bit control/status (optional) | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 50mA | Supply voltage (field) | 24 VDC; (Ex i power supply: Uo= max. 26.8 V); via power jumper contacts (power supply via blade contact; transmission via spring contact) |
Current consumption, field supply (module with no external load) | 50mA | Power consumption P<sub>max.</sub> | 1.6 W (RTD/TC operation) |
Power loss P<sub>l</sub> | 1.6 W (RTD/TC operation) | Isolation | 300 VAC system/supply; 1200 VDC system/supply/channel |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Indicators | LED (A, C, E, G) green: Function AI 1 … AI 4; LED (B, D, F, H) red: Error AI 1 … AI 4 | Identification | ATEXII 3 (1) G Ex ec [ia Ga] IIC T4 GcII (1) D [Ex ia Da] IIICI (M1) [Ex ia Ma] I |
Ex standard | EN IEC 60079-0, -7, -11 | Safety-relevant data (circuit) | Uo= 4 V; Io= 13.46 mA; Po= 13.46 mW; linear characteristic curve |
Reactances?Ex ia IIC | Lo= 0.19 H; Co= 100 μF | Reactances Ex ia IIB | Lo= 0.78 H; Co= 1000 μF |
Reactances Ex ia IIA | Lo= 1.57 H; Co= 1000 μF | Reactances Ex ia I | Lo= 2.57 H; Co= 1000 μF |
Reactances (note) | Reactances, if the internal inductance Lior capacitance Ci(without cable) of the connected device is ≤1?% of the specified values. | Connection technology: inputs / outputs | 16 x CAGE CLAMP? |
Connection type 1 | Inputs/outputs | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 24?mm?/ 0.945?inches | Height | 100?mm?/ 3.937?inches |
Depth | 67.8?mm?/ 2.669?inches | Depth from upper-edge of DIN-rail | 60.6?mm?/ 2.386?inches |
Mounting type | DIN-35 rail | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 2.036MJ | Weight | 99.3g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -25 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-3, marine applications |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | ETIM 9.0 | EC001596 |
ETIM 8.0 | EC001596 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 8538901000 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 2e967755-29fa-4c20-883b-b9085830cedb | SCIP notification number (Belgium) | 2b743fd2-d462-4b6d-b4a1-7992ed6bca5f |
SCIP notification number (Bulgaria) | cd3136c4-5842-493a-a6c7-aaccbae35441 | SCIP notification number (Czech Republic) | 06e947da-9a5e-4f16-86d6-d6c3a2a72497 |
SCIP notification number (Denmark) | 7f96b952-ca60-43e7-b2df-fb463a8cb615 | SCIP notification number (Finland) | 2d55b01b-e34c-4619-a37c-47e3d79f3158 |
SCIP notification number (France) | a325a1e0-ba65-4396-a8ab-1b4499385f8f | SCIP notification number (Germany) | 85e3688e-39a6-447b-aa87-ad08b282a833 |
SCIP notification number (Hungary) | 5df6d0ea-10d7-4caf-85f2-5569529bf243 | SCIP notification number (Italy) | 2616f35b-5661-4756-8961-a4f345a9e642 |
SCIP notification number (Netherlands) | f4f4df14-9da6-4e9c-b012-e425bf3a5b61 | SCIP notification number (Poland) | 97af6679-bfe0-4362-bcc4-b2ff7c57ccfb |
SCIP notification number (Romania) | 5d2755b8-7838-4e0c-9775-0a99aa0c54a9 | SCIP notification number (Sweden) | f00e1d03-d337-4ba2-94ea-69972672f649 |
Specifications may be subject to change without notice
