Product Model

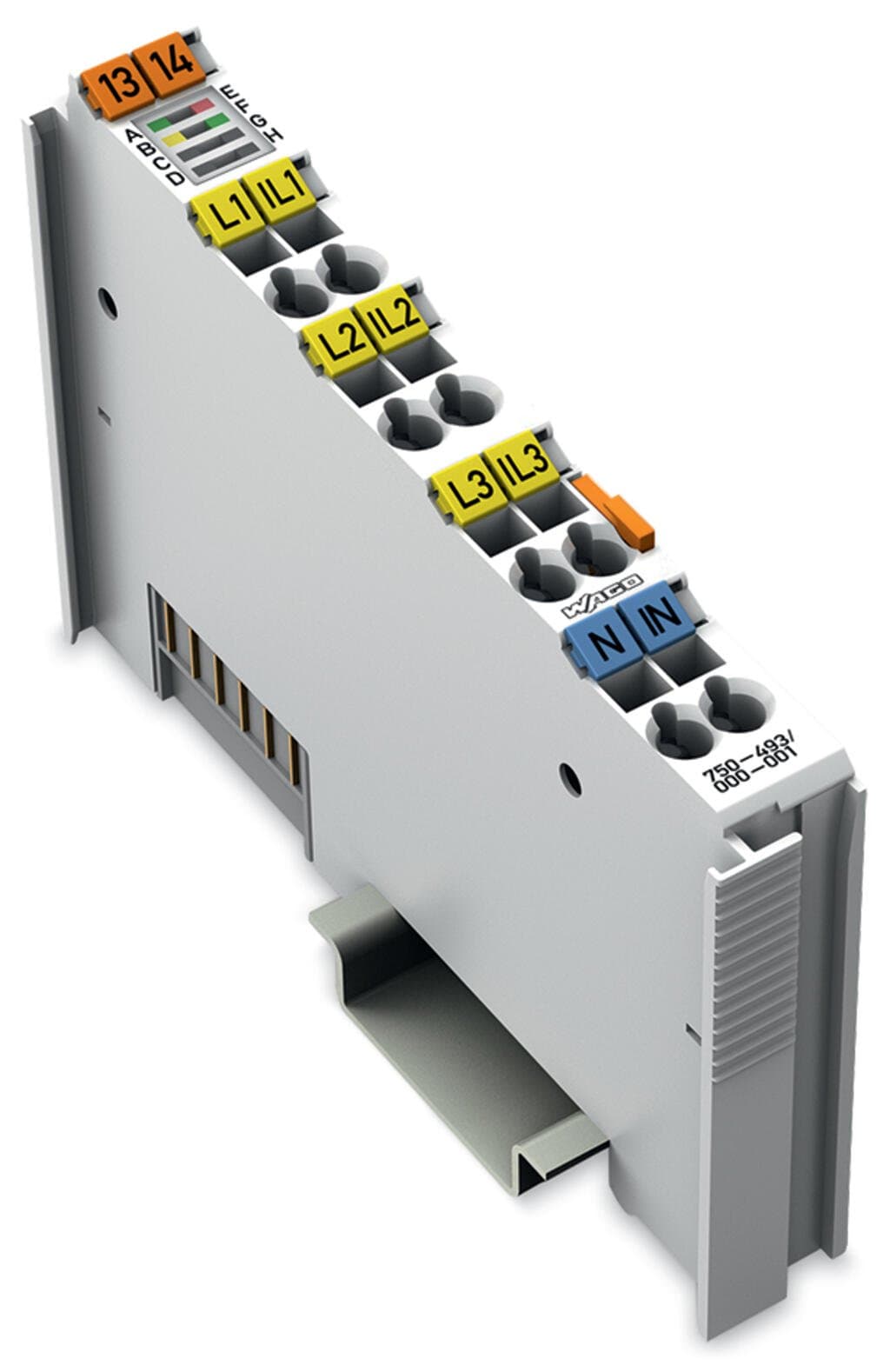

750-493/000-001
Selling Points
- 1Accurate Power Measurement: True RMS measurement ensures precise power consumption data.
- 2Durable Design: Built with polycarbonate and polyamide 6.6 for long-lasting performance.
- 3Comprehensive Analysis: Provides detailed network analysis via fieldbus, including voltage, current, and power consumption.
- 4Easy Installation: Mounts on DIN-35 rail for straightforward integration into industrial systems.
- 5High Resolution: 16-bit resolution for precise data transmission and analysis.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of measurement inputs | 6 (3 voltage measurement inputs, 3 current measurement inputs) | Signal type | Power measurement |
Input voltage (max.) | Current Inputs: 18 VAC | Signal form | Any (taking the maximum frequency into account) |
Resolution [bit] | 16bits | Data width | 2 x 48-bit data; 2 x 24-bit control/status (optional) |
Voltage path input resistance (typ.) | 1071kΩ | Current path input resistance (typ.) | 5?mΩ |
Reference for measurement error | AC current/voltage | Measurement error, reference temperature | 25°C |
Measurement error, deviation max (upper-range value) ≤± | 0.5% | Measurement current (max.) | 5 A |
Measurement cycle time | Adjustable measuring cycle time for Min_Max_Values | Frequency range with activated DC filter | 10 … 2000 Hz |
Frequency range with deactivated DC filter | 0 … 2000 Hz | Frequency range (mains frequency) | 45 … 65 Hz |
Limit frequency | 7.2kHz | Rated voltage | ULN= 277 VAC; ULL= 480 VAC |
Calculated values | Active power, active energy, grid frequency, cos ? | Measurement components | Evaluating |
Measurement method | True RMS measurement | Configuration options | WAGO-I/O-CHECK |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 100mA |
Isolation | 4?kV system/field | Rated surge voltage | 4?kV |
Indicators | LED (A) green: Communication; LED (B-G) red: Error L1, Override in Current Measurement Path (display), Undervoltage in Voltage Measurement Path (display), Error L2, Error L3, Override in Voltage Measurement Path (display); LED (H) yellow: Interchange in Phase Sequence L1-L2-L3 | Connection technology: inputs / outputs | 8 x CAGE CLAMP? |
Connection type 1 | Inputs/outputs | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 67.8?mm?/ 2.669?inches | Depth from upper-edge of DIN-rail | 60.6?mm?/ 2.386?inches |
Mounting type | DIN-35 rail | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 0.955MJ |
Weight | 48g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2 |
EMC emission of interference | per EN 61000-6-3 | Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
eCl@ss 10.0 | 27-24-26-05 | eCl@ss 9.0 | 27-24-26-05 |
ETIM 9.0 | EC001596 | ETIM 8.0 | EC001596 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4055143374422 | Customs tariff number | 8538901000 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Bulgaria) | e3e85262-907a-4597-ae48-32a09b67dbb7 | SCIP notification number (Czech Republic) | 3571f887-aabc-4d71-87be-3c15cf0dd178 |
Specifications may be subject to change without notice
