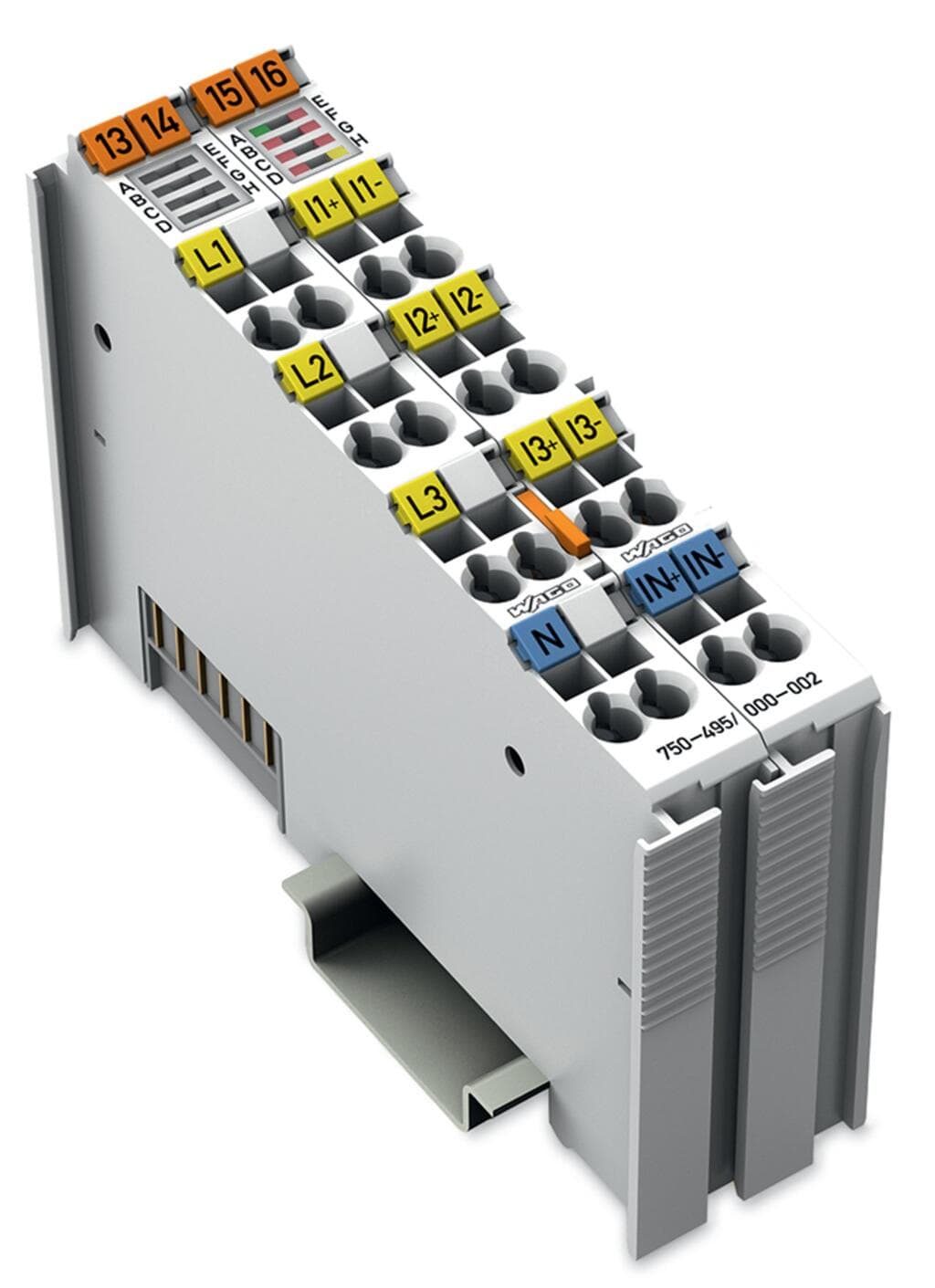

Product Model
750-495/000-002
Selling Points
- 1Accurate 3-Phase Power Measurement: Measures line-to-line voltage, power output, energy, and power factors with high precision.
- 2True RMS Measurement: Ensures accurate measurement of AC current and voltage.
- 3Rogowski Coils for High Accuracy: Utilizes 690 VAC Rogowski coils for precise power measurement.
- 4IP20 Protection: Designed with IP20 protection for safe operation in industrial environments.
- 5Versatile Mounting Options: Can be mounted horizontally or vertically on DIN-35 rails.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of measurement inputs | 7 (3 voltage measurement inputs, 4 differential current measurement inputs) | Signal type | Power measurement |
Signal form | Sinusoidal signals (taking the cutoff frequency into account) | Resolution [bit] | 24bits |
Data width | 2 x 128-bit data; 2 x 64-bit control/status | Voltage path input resistance (typ.) | 1429kΩ |
Current path input resistance (typ.) | 22?kΩ | Reference for measurement error | AC current/voltage |
Measurement error, reference temperature | 23°C | Measurement error, deviation max (upper-range value) ≤± | 0.5% |
Measurement current (max.) | Secondary voltages of Rogowski coils up to 88 mV | Measurement cycle time | Adjustable for arithmetic mean value, Min_Max_Values |
Frequency range (mains frequency) | 50/60 Hz | Frequency range (harmonics analysis) | 0 … 3300 Hz |
Limit frequency | 15.9kHz | Permissible common mains supply systems | Three-phase, four-wire system: max. 277/480 VAC; Three-phase, three-wire system: max. 600 VAC (UL) |
Note on common mains supply systems | ULLup to 690°V is possible under special conditions (see manual). | Upper-range value for the measurement accuracy | 400/690 V |
Calculated values | Line-to-line voltage, power output, energy, power factors, mains frequency, harmonic analysis (up to the 41st harmonic), THD | Measurement method | True RMS measurement |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 100mA |
Indicators | LED (A) green: Communication; LED (B-G) red: Error L1, Override in Current Measurement Path (display), Undervoltage in Voltage Measurement Path (display), Error L2, Error L3, Override in Voltage Measurement Path (display); LED (H) yellow: Interchange in Phase Sequence L1-L2-L3 | Measurement category per EN/UL 61010-2-030 | CAT III |
Connection technology: inputs / outputs | 12 x CAGE CLAMP? | Connection type 1 | Inputs/outputs |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Note (conductor cross-section) | Solid conductor: 20 … 14 AWG (UL); Fine-stranded conductor: 20 … 16 AWG (UL) These values refer exclusively to the mechanical connection capacity of the clamping points. When the applications/devices are operated in locations covered by UL, only solid conductor with 20 … 14 AWG and fine-stranded conductor with 20 … 16 AWG are permitted. |
Width | 24?mm?/ 0.945?inches | Height | 100?mm?/ 3.937?inches |
Depth | 67.8?mm?/ 2.669?inches | Depth from upper-edge of DIN-rail | 60.6?mm?/ 2.386?inches |
Mounting type | DIN-35 rail | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 2.001MJ | Weight | 98.1g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per EN 60664-1 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal up, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2 | EMC emission of interference | per EN 61000-6-3 |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | eCl@ss 10.0 | 27-24-26-05 |
eCl@ss 9.0 | 27-24-26-05 | ETIM 9.0 | EC001596 |
ETIM 8.0 | EC001596 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 8538901000 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Bulgaria) | e83add9f-a08c-482e-b2f1-fe61968b9c7b | SCIP notification number (Czech Republic) | 845c8c1a-bd89-471a-9229-b5af9b6b4696 |
Test voltage | 3.51 kVAC, 50/60 Hz, 1 min. | Rated surge voltage | System/field side: 5.0 kV (EN 60870-2-1 / Class VW3) 6.4 kV (EN/UL 61010-1) |
System voltage | ≤ 600 V | Note on system voltage | To ensure safe insulation, the module's N connector must not be connected. The system voltage corresponds to the line conductor/neutral conductor voltage, which was derived from standard power supply systems |
Overvoltage category | III | Insulation type | Double isolation (basic isolation and supplementary isolation by impedance/current measurement transformer) Safe isolation from the adjacent SELV/PELV modules must be ensured. The product manual contains the types of isolation to adjacent modules in section “Isolation to Adjacent I/O Modules per EN/UL 61010 2-201.” Without double or reinforced isolation, the 750-495/000-00x Power Measurement Module must not be placed directly next to SELV/PELV modules. Under such conditions, the 750-616 Distance Module must be used. |
Specifications may be subject to change without notice
