Product Model

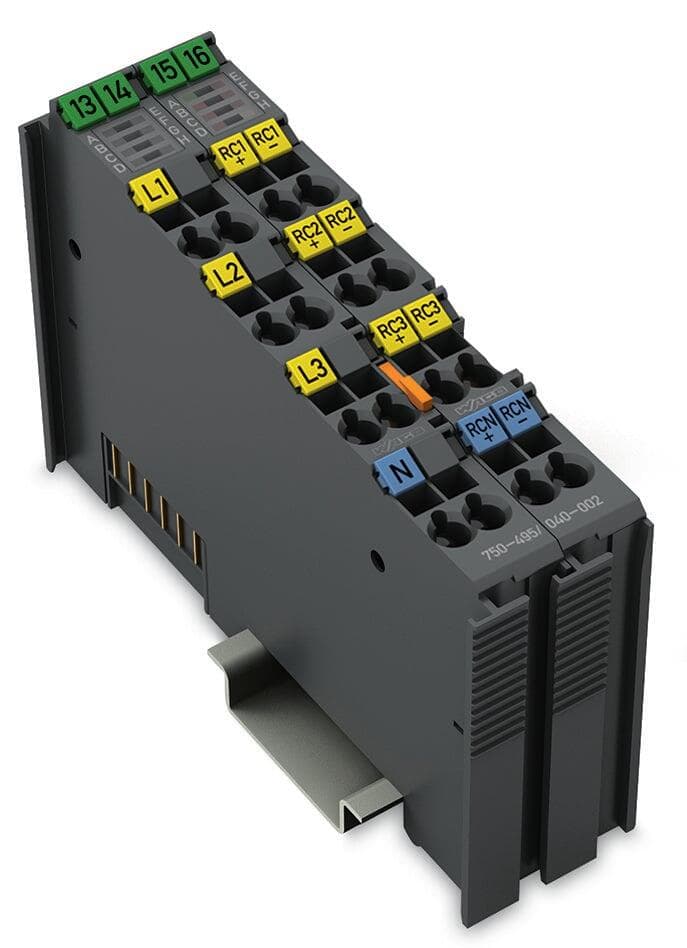

750-495/040-002
Selling Points
- 1Advanced 3-Phase Power Measurement: Accurately measure 3-phase power with 690 VAC Rogowski coils.
- 2Extreme Temperature Range: Operates from -40°C to +70°C, ensuring reliability in harsh environments.
- 3Robust IP20 Protection: Designed for industrial use with a high level of protection against electrical shock and dust.
- 4High Resolution: 24-bit conversion for precise measurements.
- 5Versatile Mounting Options: Mounts on DIN-35 rail with adjustable mounting positions for horizontal and vertical installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of measurement inputs | 7 (3 voltage measurement inputs, 4 differential current measurement inputs) | Signal type | Power measurement |
Signal form | Sinusoidal signals (taking the cutoff frequency into account) | Resolution [bit] | 24bits |
Data width | 2 x 128-bit data; 2 x 64-bit control/status | Voltage path input resistance (typ.) | 1429kΩ |
Current path input resistance (typ.) | 22?kΩ | Reference for measurement error | AC current/voltage |
Measurement error, reference temperature | 23°C | Measurement error, deviation max (upper-range value) ≤± | 0.5% |
Measurement current (max.) | Secondary voltages of Rogowski coils up to 88 mV | Measurement cycle time | Adjustable for the arithmetic mean value, min./max. values |
Frequency range (mains frequency) | 50/60 Hz | Frequency range (harmonics analysis) | 0 … 3300 Hz |
Limit frequency | 15.9kHz | Permissible common mains supply systems | Three-phase, four-wire system: max. 277/480 VAC; Three-phase, three-wire system: max. 600 VAC (UL) |
Note on common mains supply systems | ULLup to 690°V is possible under special conditions (see manual). | Upper-range value for the measurement accuracy | 400/690 V |
Calculated values | Line-to-line voltage, power output, energy, power factors, mains frequency, harmonic analysis (up to the 41st harmonic), THD | Measurement method | True RMS measurement |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 100mA |
Indicators | LED (A) green: Communication; LED (B-G) red: Error L1, Override in Current Measurement Path (display), Undervoltage in Voltage Measurement Path (display), Error L2, Error L3, Override in Voltage Measurement Path (display); LED (H) yellow: Interchange in Phase Sequence L1-L2-L3 | Measurement category per EN/UL 61010-2-030 | CAT III up to 3000 m; CAT II at 3000 m … 5000 m |
Connection technology: inputs / outputs | 12 x CAGE CLAMP? | Connection type 1 | Inputs/outputs |
Solid conductor | 0.25 … 2.5?mm2?/ 24 … 14?AWG | Fine-stranded conductor | 0.25 … 2.5?mm2?/ 24 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Note (conductor cross-section) | Solid conductor: 20 … 14 AWG (UL); Fine-stranded conductor: 20 … 16 AWG (UL) These values refer exclusively to the mechanical connection capacity of the clamping points. When the applications/devices are operated in locations covered by UL, only solid conductor with 20 … 14 AWG and fine-stranded conductor with 20 … 16 AWG are permitted. |
Width | 24?mm?/ 0.945?inches | Height | 100?mm?/ 3.937?inches |
Depth | 67.8?mm?/ 2.669?inches | Depth from upper-edge of DIN-rail | 60.6?mm?/ 2.386?inches |
Mounting type | DIN-35 rail | Color | dark gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 1.997MJ |
Weight | 90g | Conformity marking | CE |
Ambient temperature (operation) | -40 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per EN 60664-1 |
Operating altitude | without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) | Mounting position | Horizontal left, horizontal up, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Relative humidity (with condensation) | Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation) |
Vibration resistance | per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373 | Shock resistance | per IEC 60068-2-27 (15g/11?ms/half-sine/1,000 shocks; 25g/6?ms/1,000 shocks), EN 50155, EN 61373 |
EMC immunity to interference | per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26;EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994 | EMC emission of interference | per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5 |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | eCl@ss 10.0 | 27-24-26-05 |
eCl@ss 9.0 | 27-24-26-05 | ETIM 9.0 | EC001596 |
ETIM 8.0 | EC001596 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 8538901000 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | eeec456d-099b-4bce-9d21-18f42782f600 | SCIP notification number (Belgium) | 3a80c892-e3d3-4c4b-9d6d-3eb171c5267e |
SCIP notification number (Bulgaria) | 10be588a-908c-4d29-ae8d-5e8b3a1bd52e | SCIP notification number (Czech Republic) | b1e21373-9132-4406-a83f-b8d1f9b1f159 |
SCIP notification number (Denmark) | 9f7e2dcf-eaaf-4067-b510-a549f44db64f | SCIP notification number (Finland) | 764c4149-9ce9-4bf4-bd3a-691004bcd6ec |
SCIP notification number (France) | 044269a8-cbab-4c38-b8f1-26314c6a6141 | SCIP notification number (Germany) | f3fc0e36-173c-4b63-9f09-c3bb10a11330 |
SCIP notification number (Hungary) | 01868264-0d2d-43fd-bf95-d4bca0ff60e3 | SCIP notification number (Italy) | 0172e486-29d0-49f6-beb9-abddc6d33519 |
SCIP notification number (Netherlands) | b193bb56-98fe-4f12-b297-05b43e6aecd7 | SCIP notification number (Poland) | 2afaf5f3-15fc-4592-adcd-c0ecb1b3e7c0 |
SCIP notification number (Romania) | ce3b6f14-6e31-4284-9c20-54fec9ad4470 | SCIP notification number (Sweden) | 8d6251f4-50f6-4b0e-92a5-f3e240b44b1e |
Test voltage | 3.51 kVAC, 50/60 Hz, 1 min. | Rated surge voltage | System/field side: 5.0 kV (EN 60870-2-1 / Class VW3) 6.4 kV (EN/UL 61010-1) |
System voltage | ≤ 600 V | Note on system voltage | To ensure safe insulation, the module's N connector must not be connected. The system voltage corresponds to the line conductor/neutral conductor voltage, which was derived from standard power supply systems |
Overvoltage category | III up to 3000°m; II at 3000°m … 5000°m | Insulation type | Double isolation (basic isolation and supplementary isolation by impedance/current measurement transformer) Safe isolation from the adjacent SELV/PELV modules must be ensured. The product manual contains the types of isolation to adjacent modules in section “Isolation to Adjacent I/O Modules per EN/UL 61010 2-201.” Without double or reinforced isolation, the 750-495/040-00x Power Measurement Module must not be placed directly next to SELV/PELV modules. Under such conditions, the 750-616/040-000 Distance Module must be used. |
Specifications may be subject to change without notice
