Product Model

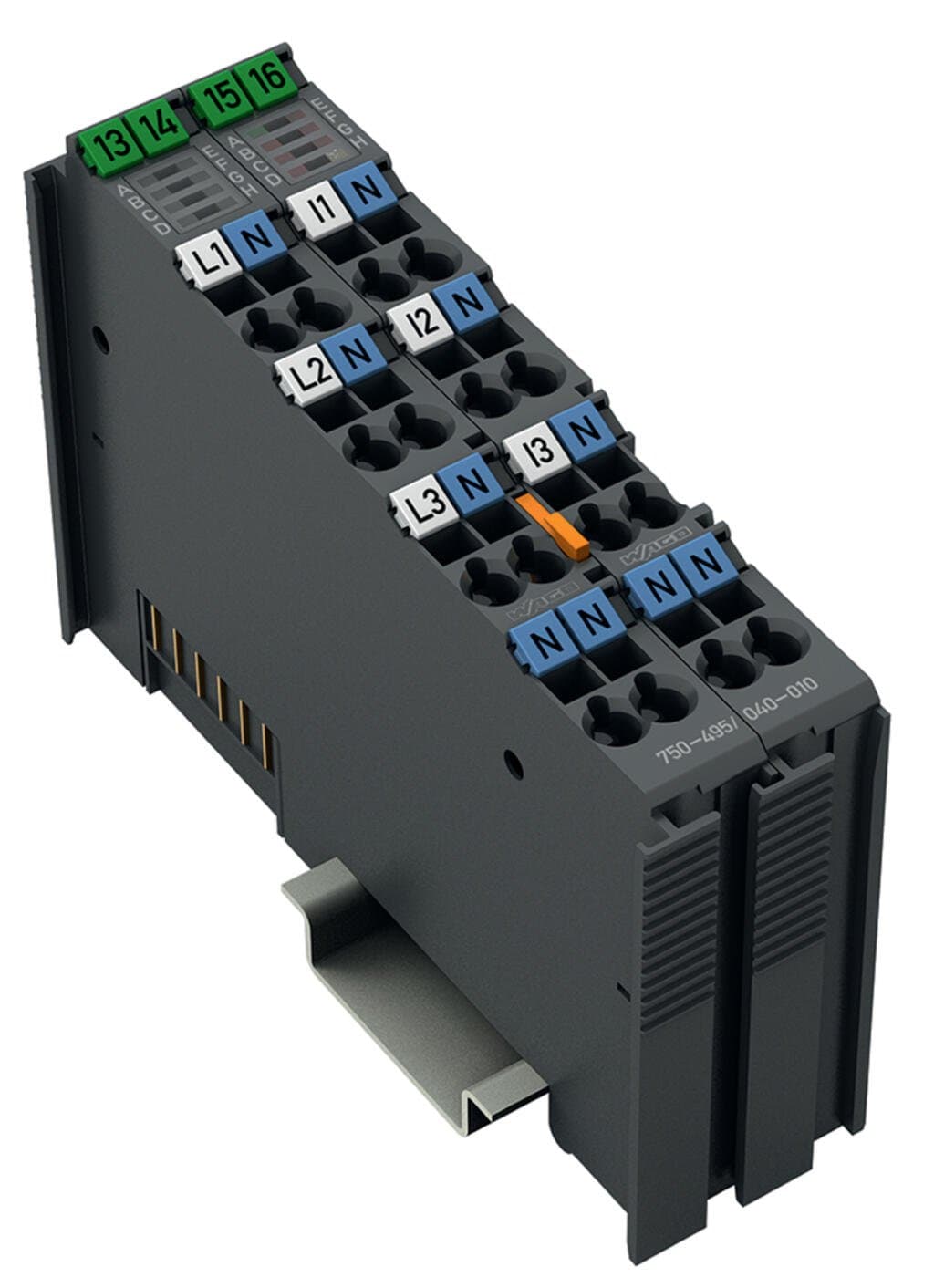

750-495/040-010
Selling Points
- 1High Vibration and Shock Resistance: Designed to withstand harsh environments with IEC 60068-2-6 and EN 50155 compliance.
- 2Extended Temperature Range: Operates from -40°C to +70°C, ensuring reliable performance in various conditions.
- 3Advanced Immunity: Offers greater immunity to impulse voltages and electromagnetic interference for stable measurements.
- 4High Accuracy: Features 24-bit conversion for precise line-to-line voltage, power output, energy, and power factor calculations.
- 5Durable Construction: Built with polycarbonate and polyamide 6.6 housing materials for long-lasting durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of measurement inputs | 6 (3 input pairs for voltage and current measurement sensors) | Signal type | Power measurement |
Signal form | Any periodic signals (considering the threshold frequencies) | Resolution [bit] | 24bits |
Data width | 2 x 128-bit data; 2 x 64-bit control/status | Voltage path input resistance (typ.) | 200.3kΩ |
Current path input resistance (typ.) | 20.8?Ω | Reference for measurement error | AC current/voltage |
Measurement error, deviation max (upper-range value) ≤± | 0.3% | Frequency range (mains frequency) | 45 … 65 Hz |
Frequency range (harmonics analysis) | 45 … 2665 Hz | Limit frequency | 8.6kHz |
Calculated values | Line-to-line voltage, power output, energy, power factors, mains frequency, harmonic analysis (up to the 41st harmonic), THD | Measurement method | True RMS measurement |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 100mA |
Rated surge voltage | 4?kV | Indicators | LED (A) green: Communication; LED (B-G) red: Error L1, Override in Current Measurement Path (display), Undervoltage in Voltage Measurement Path (display), Error L2, Error L3, Override in Voltage Measurement Path (display); LED (H) yellow: Interchange in Phase Sequence L1-L2-L3 |
Overvoltage category | III (EN 61010) | Connection technology: inputs / outputs | 16 x CAGE CLAMP? |
Connection type 1 | Inputs/outputs | Solid conductor | 0.25 … 2.5?mm2?/ 24 … 14?AWG |
Fine-stranded conductor | 0.25 … 2.5?mm2?/ 24 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 24?mm?/ 0.945?inches | Height | 100?mm?/ 3.937?inches |
Depth | 67.8?mm?/ 2.669?inches | Depth from upper-edge of DIN-rail | 60.6?mm?/ 2.386?inches |
Mounting type | DIN-35 rail | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 1.997MJ | Weight | 99.4g |
Conformity marking | CE | Ambient temperature (operation) | -40 … +70 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Operating altitude | without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) | Mounting position | Horizontal left, horizontal up, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Relative humidity (with condensation) | Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation) |
Vibration resistance | per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373 | Shock resistance | per IEC 60068-2-27 (15g/11?ms/half-sine/1,000 shocks; 25g/6?ms/1,000 shocks), EN 50155, EN 61373 |
EMC immunity to interference | per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26;EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994 | EMC emission of interference | per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5 |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | ETIM 9.0 | EC001596 |
ETIM 8.0 | EC001596 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | Box |
Country of origin | DE | GTIN | 4066966077704 |
Customs tariff number | 8538901000 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | dc917482-3d21-4e39-be25-7940fa53a0d0 |
SCIP notification number (Belgium) | e85f61dc-2394-4594-bbf7-07a9ffc36b58 | SCIP notification number (Bulgaria) | 344a9e66-bcd5-488e-a8a5-34bac4374c5e |
SCIP notification number (Czech Republic) | 26c5e7fc-a582-493e-b9d8-c31a8c22f46d | SCIP notification number (Denmark) | d0e9e2e4-ce51-41d7-8b7e-8cb9c8e90d21 |
SCIP notification number (Finland) | ceacc7a2-7be6-43f0-acd3-62c4accb485a | SCIP notification number (France) | c58410fb-b309-4896-9a0f-ff9d19b9a7c8 |
SCIP notification number (Germany) | 1c3aeabc-11e2-4d28-9c3d-ca4f8185eb94 | SCIP notification number (Hungary) | 74f6925b-c26b-44f2-82db-c04c6d524089 |
SCIP notification number (Italy) | b2dace86-0f35-4d4e-912c-286f9f7fc8db | SCIP notification number (Netherlands) | 6265c0e0-08d6-4ba7-9d97-451b818735fd |
SCIP notification number (Poland) | bf984cfc-f628-47cf-a085-2d591adf279d | SCIP notification number (Romania) | 2d2af331-a2d2-4f8f-a704-f89c9b1916f5 |
SCIP notification number (Sweden) | 0bbac5bb-09bf-4738-8fe3-4d48b51a83fb |
Specifications may be subject to change without notice
