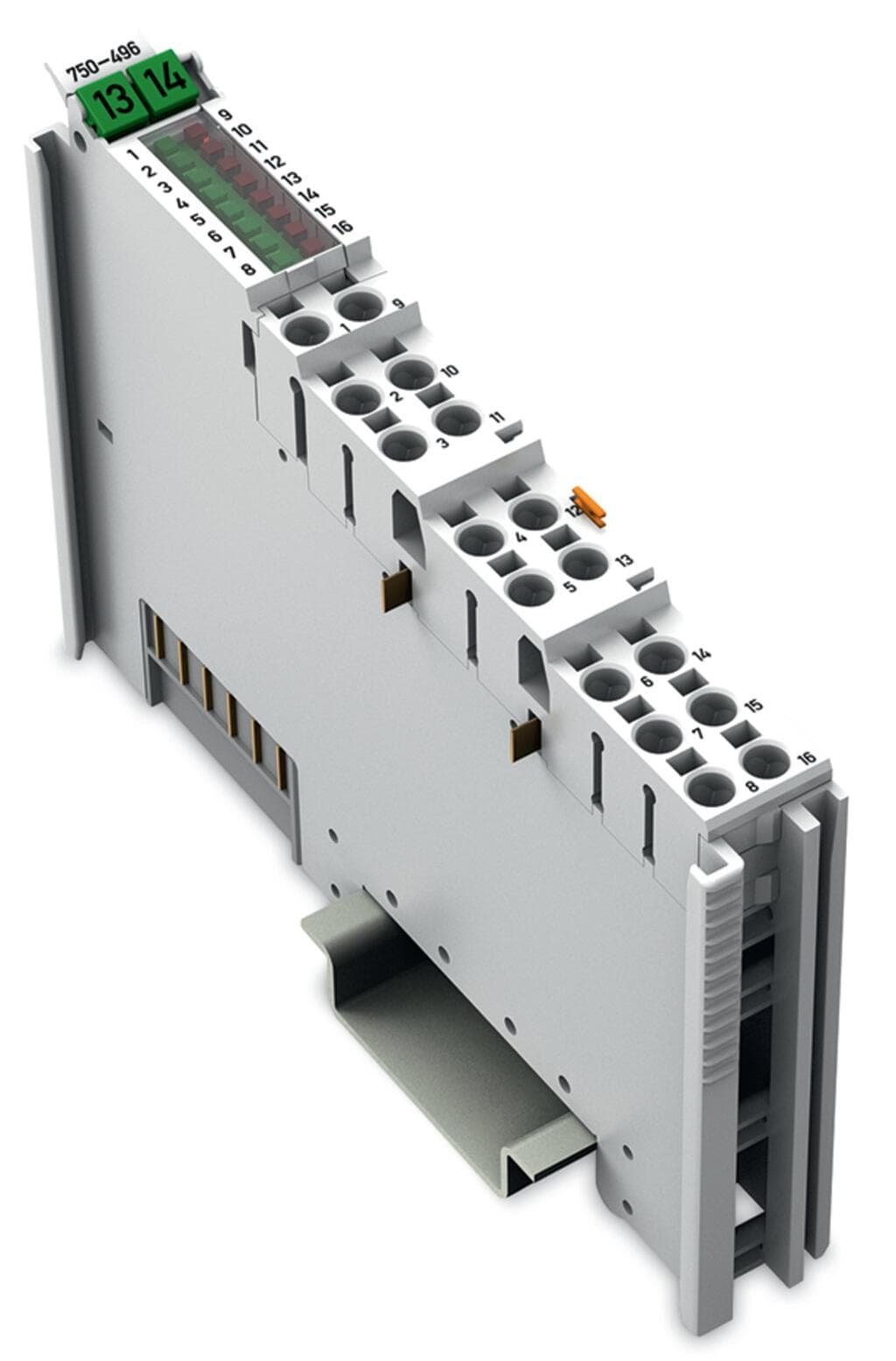

Product Model
750-496
Selling Points
- 18 Analog Inputs: Configurable for 0-20mA, 4-20mA, or 3.6-21mA signals with 12-bit resolution.
- 2Compact Design: Measures 12mm x 100mm x 69mm, ideal for DIN-35 rail mounting.
- 3High Accuracy: Measuring error of ±0.1%, ensuring precise signal processing.
- 4Robust Construction: Made from polycarbonate and polyamide 6.6, with IP20 protection rating.
- 5Versatile Connectivity: Uses Push-in spring CAGE CLAMP connections for easy installation and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of analog inputs | 8 | Number of Channels | 8 |
Signal type | Current | Signal type (current) | 0 … 20?mADC; 4 … 20?mADC; 3.6 … 21?mADC |
Signal type (configurable) | yes | Sensor connection | 8 x (2-wire) |
Input voltage (max.) | 31.2 V | Resolution [bit] | 12bits |
Input resistance (max.) | 220Ω | Data width | 8 x 16-bit data; 8 x 8-bit control/status (optional) |
Conversion time (typ. ≤) | 10ms | Measurement error, reference temperature | 25°C |
Measurement error, deviation max (upper-range value) ≤± | 0.1% | Temperature error max. (upper-range value) ≤± | 0.01%/K |
Configuration options | WAGO-I/O-CHECK | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 69mA | Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
Isolation | 500?V system/field | Indicators | LED (1-8) green: Status AI 1 … AI 8; LED (9-16) red: Error AI 1 … AI 8 |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Connection technology: inputs / outputs | 16 x Push-in CAGE CLAMP? | Connection type 1 | Inputs/Outputs |
Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Fine-stranded conductor | 0.25 … 1.5?mm2?/ 22 … 16?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 12?mm?/ 0.472?inches |
Height | 100?mm?/ 3.937?inches | Depth | 69?mm?/ 2.717?inches |
Depth from upper-edge of DIN-rail | 61.8?mm?/ 2.433?inches | Mounting type | DIN-35 rail |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 0.837MJ |
Weight | 47.4g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2 |
EMC emission of interference | per EN 61000-6-3 | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
eCl@ss 10.0 | 27-24-26-01 | eCl@ss 9.0 | 27-24-26-01 |
ETIM 9.0 | EC001596 | ETIM 8.0 | EC001596 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143350365 | Customs tariff number | 8538901000 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | b785bcac-0806-4a65-a8e7-48d3da093e45 | SCIP notification number (Belgium) | e5213c94-97eb-4467-9cf4-ce2358a25d02 |
SCIP notification number (Bulgaria) | 9b58f044-0d46-4d3e-99d2-193eb5e476b2 | SCIP notification number (Czech Republic) | f1cfeb92-72c7-478a-9264-a8065f001a00 |
SCIP notification number (Denmark) | b95bd59a-27e9-45b0-bd58-1e81fb9ee5a7 | SCIP notification number (Finland) | 0e5da981-ad71-4f9b-93ff-699077d336ec |
SCIP notification number (France) | a47c2f90-6f81-4fe3-af9c-13d1d31bc374 | SCIP notification number (Germany) | d7086ca6-ca36-4306-8c35-2248c0a43603 |
SCIP notification number (Hungary) | 4b46e431-d6da-4818-a74b-eaa7a7dd19ce | SCIP notification number (Italy) | 8f35dfcf-0dfa-4104-b1be-c03e60880d18 |
SCIP notification number (Netherlands) | 544437cf-415a-4635-be76-8b2d08622afd | SCIP notification number (Poland) | 163e5e6c-f9a2-4eb6-ab19-a8c0a6d11727 |
SCIP notification number (Romania) | 3a6288bc-25fa-46df-b389-57d7bca2317c | SCIP notification number (Sweden) | 1dc6b39c-9def-4c9d-a1e5-cff4c8000434 |
Specifications may be subject to change without notice
