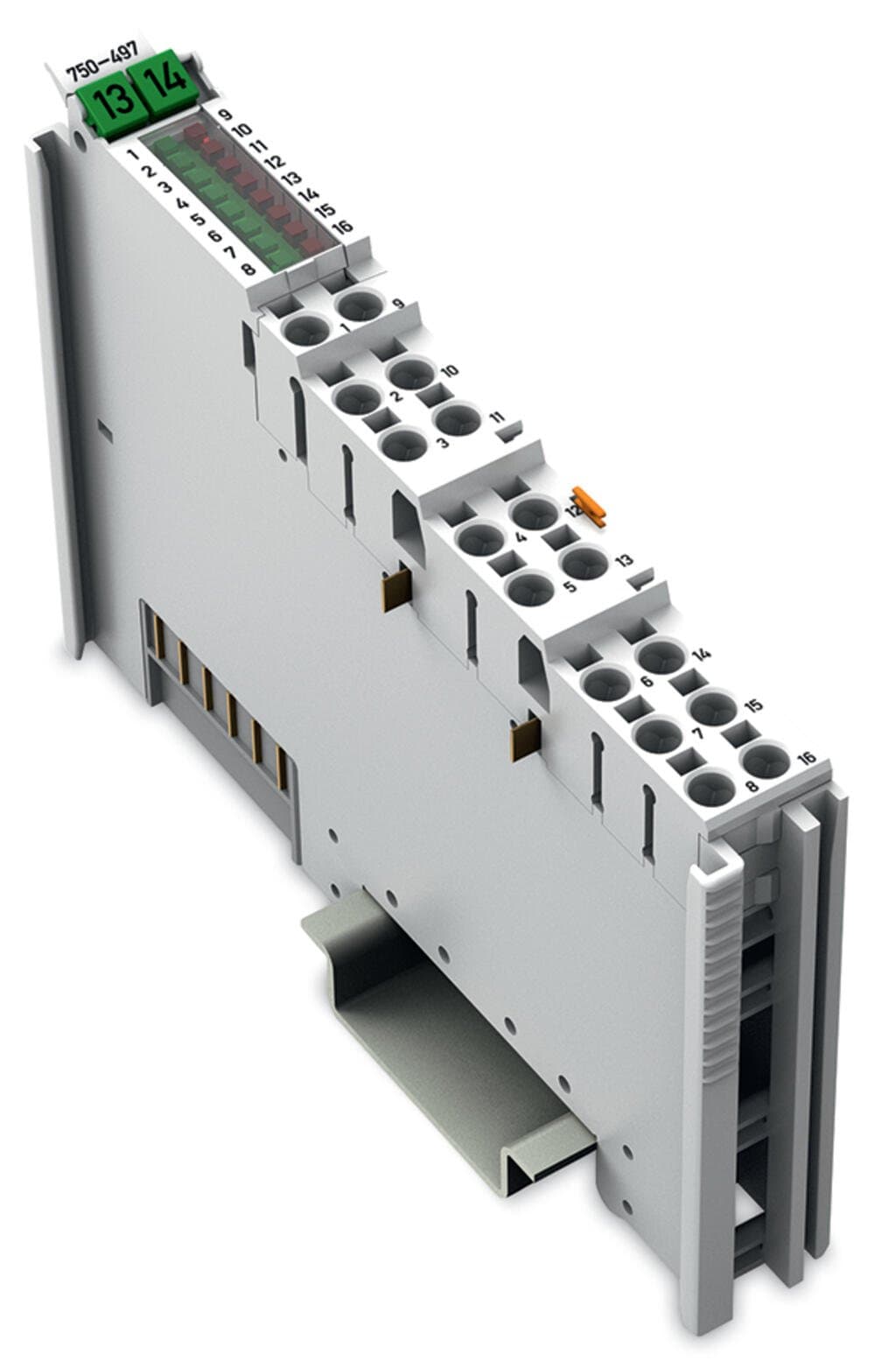

Product Model
750-497
Selling Points
- 1High Precision: 12-bit resolution for accurate signal processing.
- 2Reliable Connectivity: 16 x Push-in CAGE CLAMP connections ensure secure and easy wiring.
- 3Versatile Mounting: Designed for DIN-35 rail mounting with a compact 12mm width.
- 4Wide Operating Range: Operates in ambient temperatures from 0°C to +55°C with IP20 protection.
- 5Easy Configuration: Configurable via WAGO-I/O-CHECK or GSD files for seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of analog inputs | 8 | Number of Channels | 8 |
Signal type | Voltage | Signal type (voltage) | 0 … 10?VDC; -10 … +10?VDC |
Signal type (configurable) | yes | Sensor connection | 8 x (2-wire) |
Input voltage (max.) | 35 V | Resolution [bit] | 12bits |
Data width | 8 x 16-bit data; 8 x 8-bit control/status (optional) | Internal resistance | 100kΩ |
Measurement error, reference temperature | 25°C | Measurement error, deviation max (upper-range value) ≤± | 0.1% |
Temperature error max. (upper-range value) ≤± | 0.01%/K | Configuration options | WAGO-I/O-CHECK |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 105mA |
Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Isolation | 500?V system/field |
Indicators | LED (1-8) green: Status AI 1 … AI 8; LED (9-16) red: Error AI 1 … AI 8 | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Connection technology: inputs / outputs | 16 x Push-in CAGE CLAMP? |
Connection type 1 | Inputs/Outputs | Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Fine-stranded conductor | 0.25 … 1.5?mm2?/ 22 … 16?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 69?mm?/ 2.717?inches | Depth from upper-edge of DIN-rail | 61.8?mm?/ 2.433?inches |
Mounting type | DIN-35 rail | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 0.837MJ | Weight | 51.5g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2 | EMC emission of interference | per EN 61000-6-3 |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | eCl@ss 10.0 | 27-24-26-01 |
eCl@ss 9.0 | 27-24-26-01 | ETIM 9.0 | EC001596 |
ETIM 8.0 | EC001596 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143350389 |
Customs tariff number | 8538901000 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 38de749d-60e7-4ae0-8a6c-b7904631cc54 |
SCIP notification number (Belgium) | 617d2eee-1051-47a5-a6f3-241ffc99cd81 | SCIP notification number (Bulgaria) | ec0fec79-db68-4962-8b63-e4c7fa14ed75 |
SCIP notification number (Czech Republic) | a8030d24-0aaa-40ba-8889-6fb64f1f7369 | SCIP notification number (Denmark) | f7502ecb-a254-45cd-afe6-998813d77656 |
SCIP notification number (Finland) | b5c5226d-727b-44e3-b399-5758985b3d61 | SCIP notification number (France) | 3cfd4907-984d-4011-9458-2cc7b41c0686 |
SCIP notification number (Germany) | 874938e3-f716-48cb-809e-60271ce1949b | SCIP notification number (Hungary) | dbe4bef0-4e14-490d-bc6c-9884adfea47b |
SCIP notification number (Italy) | a340c2a5-4e3b-44c9-a071-bdfdecf7878c | SCIP notification number (Netherlands) | c7044e74-e017-41f8-b9be-7984d9467ca3 |
SCIP notification number (Poland) | 68af4241-5680-43d6-b427-21db7e324d80 | SCIP notification number (Romania) | 90270177-f50c-416f-b6f4-64291fd3831d |
SCIP notification number (Sweden) | de69e8e7-6046-4fdc-939a-c044525c1cb6 |
Specifications may be subject to change without notice
