Product Model

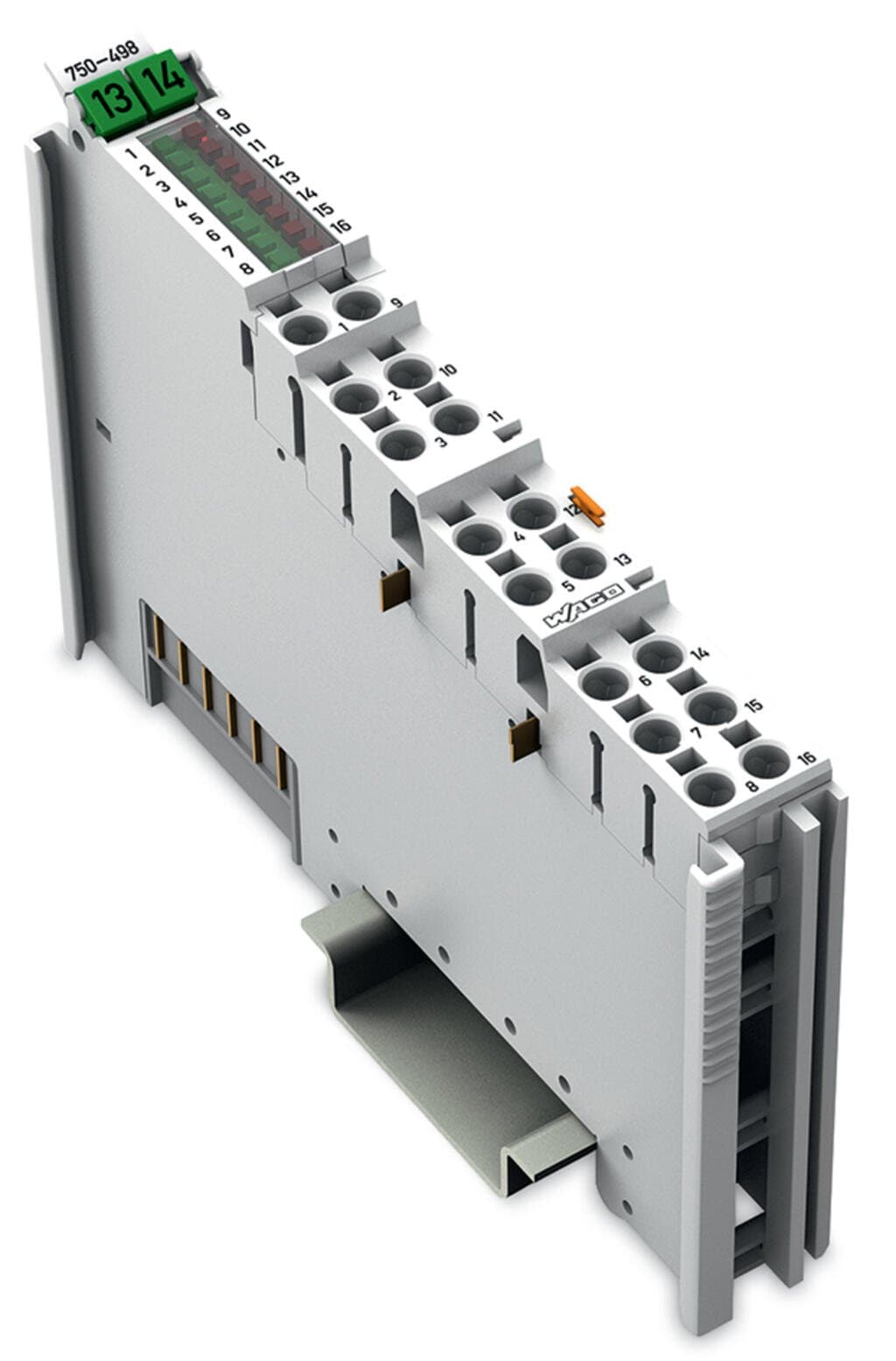

750-498
Selling Points
- 1High Precision Measurement: Measures temperatures with a resolution of 0.1°C using thermocouples of types K, J, B, E, N, R, S, T, and C.
- 2Durable Design: Built with polycarbonate and polyamide 6.6, ensuring robustness in harsh environments with an IP20 protection rating.
- 3Easy Installation: Mounts easily on DIN-35 rail with a width of 12mm, making it versatile for various industrial settings.
- 4Versatile Connectivity: Features 16 x Push-in CAGE CLAMP connections for secure and reliable input/output connections.
- 5Compliant with Industry Standards: Compliant with CE marking, IEC 61131-2, and other relevant standards for industrial automation equipment.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of analog inputs | 8 | Number of Channels | 8 |
Signal type | Thermocouple | Signal type (configurable) | Yes |
Sensor connection | 8 x (2-wire) | Data width | 8 x 16-bit data; 8 x 8-bit control/status (optional) |
Resolution (over entire range) | 0.1?°C | Conversion time | ≤100 ms (per channel), activated notch filter; ≤50 ms (per channel), deactivated notch filter |
Measurement error (25 °C) | with cold junction compensation: ≤ ±1 K (type E, N, K, T, J) at ≥-50 °C; ≤ ±2 K (type S, R, C) at ≥100 °C; ≤ ±3 K (type B) at ≥350 °C;(Please find additional measurement error information in the manual.) | Temperature error max. (upper-range value) ≤± | 0.05%/K |
Temperature coefficient | Type K: ±0.05 K/K of the upper-range value; Voltage measurements: ±50 ppm/K of the upper-range value | Sensor types | Type K, J, B, E, N, R, S, T, C; Voltage measurement: ±30 mV; ±60 mV; ±120 mV; ±240 mV |
Cold junction compensation | Module-internal based on a cold junction temperature measurement | Configuration options | WAGO-I/O-CHECK |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 100mA |
Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Isolation | 500?V system/field |
Indicators | LED (1-8) green: Status TC 1 … TC 8; LED (9-16) red: Error TC 1 … TC 8 | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Connection technology: inputs / outputs | 16 x Push-in CAGE CLAMP? |
Connection type 1 | Inputs/outputs | Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Fine-stranded conductor | 0.25 … 1.5?mm2?/ 22 … 16?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 69?mm?/ 2.717?inches | Depth from upper-edge of DIN-rail | 61.8?mm?/ 2.433?inches |
Mounting type | DIN-35 rail | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 0.837MJ | Weight | 48.9g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, EN 61131-2 | EMC emission of interference | per EN 61000-6-3, EN 61131-2 |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | ETIM 9.0 | EC001596 |
ETIM 8.0 | EC001596 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143944380 |
Customs tariff number | 8538901000 | CAS-No. | 12060-00-3 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | f6735f8e-5ed0-4b19-b01a-c84836383432 |
SCIP notification number (Belgium) | 40dde180-eeb7-44e2-a3c2-6d459beea0f6 | SCIP notification number (Bulgaria) | 17b4a04f-6a56-4906-98ef-68f5187c67bb |
SCIP notification number (Czech Republic) | c655c53f-bf90-48b4-accb-11d8423ca2cb | SCIP notification number (Denmark) | 77b4f325-303c-4d0f-b4a6-bf3b6f39cf0e |
SCIP notification number (Finland) | 043412a0-436a-419a-b605-0253e6596fac | SCIP notification number (France) | 52e4b31a-37d0-4f16-b015-6728e0784851 |
SCIP notification number (Germany) | 2772e26d-1005-4081-8e88-75048872c85b | SCIP notification number (Hungary) | 4f91372f-d671-4ecd-bb80-5ac1f6dde9a4 |
SCIP notification number (Italy) | a4376f3e-2ac5-42ee-ac28-37a1ee973a82 | SCIP notification number (Netherlands) | 6e040007-e411-4954-bb29-a5db777b8dbf |
SCIP notification number (Poland) | 143cbffc-74d9-45bc-9bb9-e0d65e0b7616 | SCIP notification number (Romania) | 423c9bbe-539b-4a45-857a-783369ee023f |
SCIP notification number (Sweden) | 7789035f-c5ed-4027-88ee-9404a04d32ec |
Specifications may be subject to change without notice
