Product Model

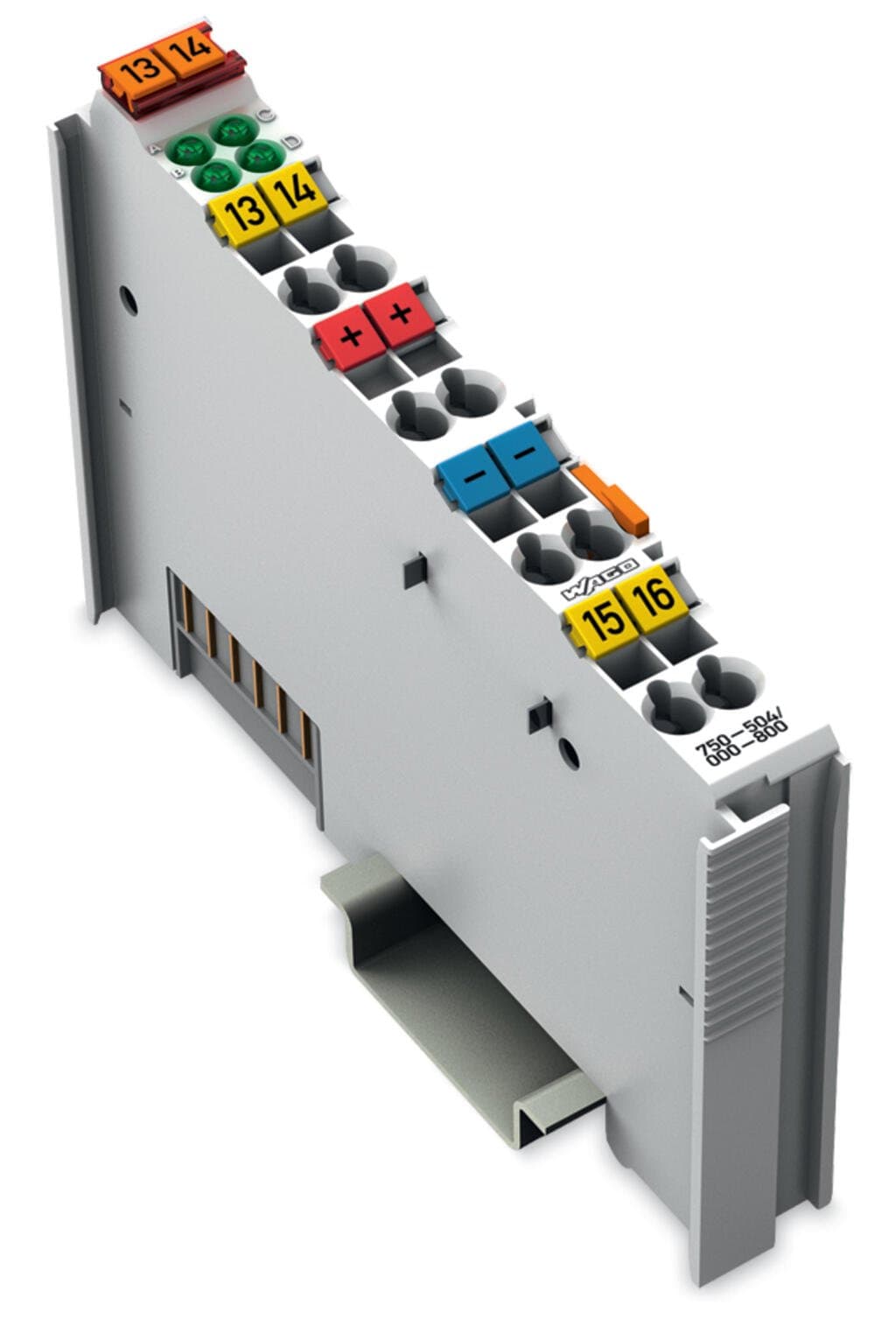

750-504/000-800
Selling Points
- 1High-side switching for reliable digital output.
- 24 channels with 24 VDC and 0.5 A each.
- 3Interference-free operation for stable performance.
- 4DIN-35 rail mounting for easy installation.
- 5IP20 protection rating for safe use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of digital outputs | 4 | Number of Channels | 4 |
Signal type | Digital | Signal type (voltage) | 24 VDC |
Actuator connection | 2 x (2-wire, 3-wire); A suitable field side connection module (e.g., 750-614) must also be used to connect other actuators. | Output characteristic | high-side switching |
Output current per channel | 0.5A | Output current | short-circuit-protected |
Load type | Resistive, inductive, lamp load | Switching frequency (max.) | 1 kHz |
Inductive load switch-off energy dissipation (max.) | 0.3J | Output data width (internal) max. | 4bits |
Supply voltage (system) | 5 VDC; via data contacts | Current consumption (5 V system supply) | 10mA |
Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Current consumption, field supply (module with no external load) | 30mA |
Isolation | 500 V system/field | Interference-free with safety function | Yes |
Indicators | LED (A-D) green: Status DO 1 … DO 4 | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Current carrying capacity (power jumper contacts) | 10A |
Connection technology: inputs / outputs | 8 x CAGE CLAMP?(outputs) | Connection type 1 | Output |
Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Strip length | 8 … 9 mm / 0.31 … 0.35 inches | Width | 12 mm / 0.472 inches |
Height | 100 mm / 3.937 inches | Depth | 69.8 mm / 2.748 inches |
Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches | Mounting type | DIN-35 rail |
Pluggable connector | fixed | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 1.486MJ |
Weight | 48.4g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000 m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-4, marine applications | Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-04 |
eCl@ss 9.0 | 27-24-26-04 | ETIM 9.0 | EC001599 |
ETIM 8.0 | EC001599 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1 pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 8537109170 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | a08770db-21c0-4bed-82e3-a40a37701efe | SCIP notification number (Belgium) | 2a2ec452-cc3f-49ce-8ca0-11b7edf42f97 |
SCIP notification number (Bulgaria) | 969a7672-d542-4fa8-95ec-0e32d51b6423 | SCIP notification number (Czech Republic) | b305b855-7e2f-41f6-9460-0e05ef57fae2 |
SCIP notification number (Denmark) | 18d9e0e9-e462-473b-8f52-707b340188c2 | SCIP notification number (Finland) | 509a241c-88bf-4a76-a6f0-2cf96fb4c3ca |
SCIP notification number (France) | 90548fcf-83c9-4ca3-8f23-4c10d1474699 | SCIP notification number (Germany) | 68fbe5f8-499e-41df-b1d5-f08d33e1bd15 |
SCIP notification number (Hungary) | 3439fe27-dc80-4a79-b80a-c9fa8e8368d0 | SCIP notification number (Italy) | 4c0ce7f4-3c92-49f6-a01f-29e1b1d56f96 |
SCIP notification number (Netherlands) | 4bcd8229-9d22-4699-a7f5-9a41d446b54b | SCIP notification number (Poland) | fe35663e-1a68-429a-a2db-dd301fb349f8 |
SCIP notification number (Romania) | 89287865-d1c4-4a1a-8aa6-d3e3fad02e5b | SCIP notification number (Sweden) | a32ed2de-e817-45e3-9be7-8383b0a0fb80 |
Specifications may be subject to change without notice
